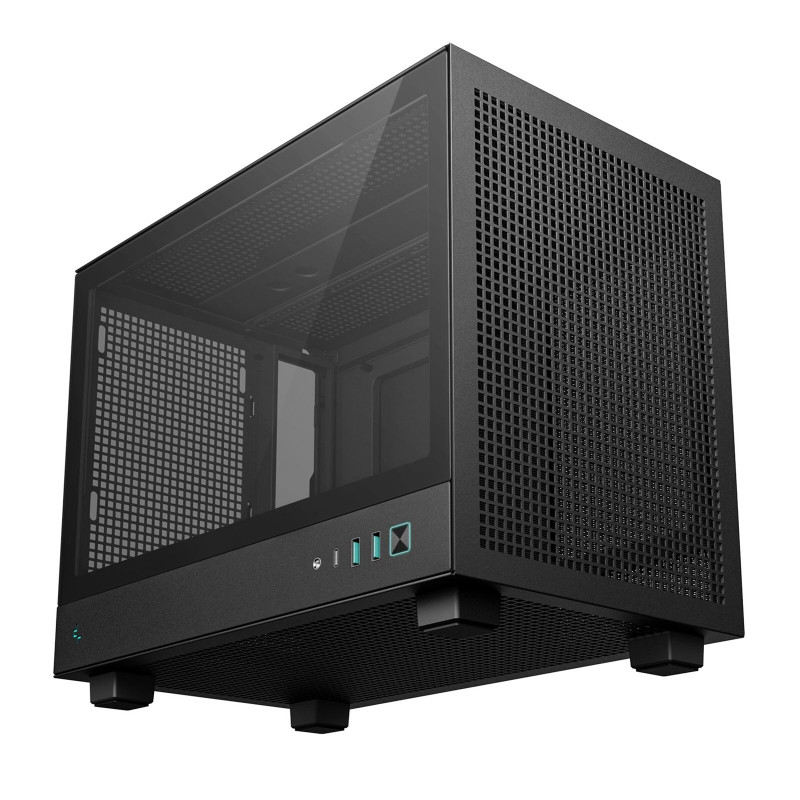

DEEPCOOL CH160 Micro-ATX PC Case with Tempered Glass

DEEPCOOL CH160 Mini-ITX PC Case

The DEEPCOOL CH160 is a high-airflow mini-ITX case perfect for building compact, powerful gaming PCs or professional workstations. Its surprisingly spacious interior, coupled with excellent cooling capabilities and versatile power supply compatibility, makes it ideal for tech enthusiasts seeking a balance between performance and portability. This case is designed for builders who value both powerful components and a sleek, space-saving design.

Features

• Ultra-portable mini-ITX form factor with a tempered glass side panel for showcasing your build.
• Exceptional airflow thanks to strategically placed mesh panels.
• Supports large air coolers up to 172mm in height, eliminating limitations often found in smaller cases.
• Accommodates most 3-slot dual-fan GPUs up to 305mm in length (without a riser cable), ensuring optimal GPU performance.
• Flexible power supply support for ATX, SFX, and SFX-L PSUs up to 140mm in length.
• Convenient features including removable fan brackets (supporting SSD/HDD), three removable dust filters, and a sturdy carrying handle.
• Enhanced I/O panel with two USB 3.0 ports, a USB 3.2 Gen 2 Type-C port, and HD audio.

Specifications

• Dimensions: 336 x 200 x 283.5mm (L x W x H)
• Weight: 3.3kg
• Materials: ABS+SPCC+Tempered Glass
• Motherboard Support: Mini-ITX
• Front I/O Ports: 2 x USB 3.0, 1 x USB 3.2 Gen 2 Type-C, 1 x HD Audio
• Drive Bays: 1 x 3.5" (shared with 2.5" SSD/HDD or 120mm fan), 1 x 2.5" (shared with 2.5" SSD/HDD or 120mm fan)
• Expansion Slots: 3
• Pre-installed Fans: None
• Fan Support: Front: 1 x 120mm (shared with 2.5" SSD/HDD), Top: 2 x 120mm, Rear: 1 x 120mm
• Radiator Support: None
• CPU Cooler Height Limit: 172mm
• GPU Size Limit: Length: SFX/SFX-L: 305mm / ATX: 230mm, Height: 138mm, Width: 65mm (3 Slots)
• Power Supply Type: ATX (max length: 140mm), SFX, SFX-L
