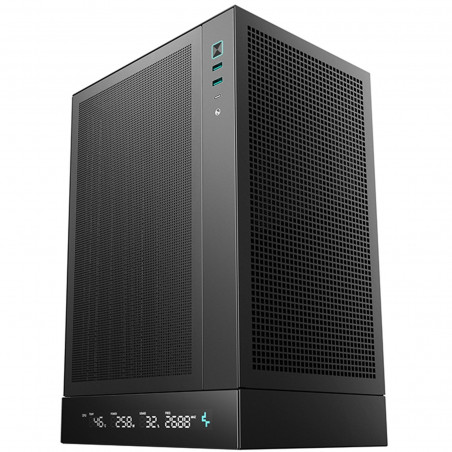

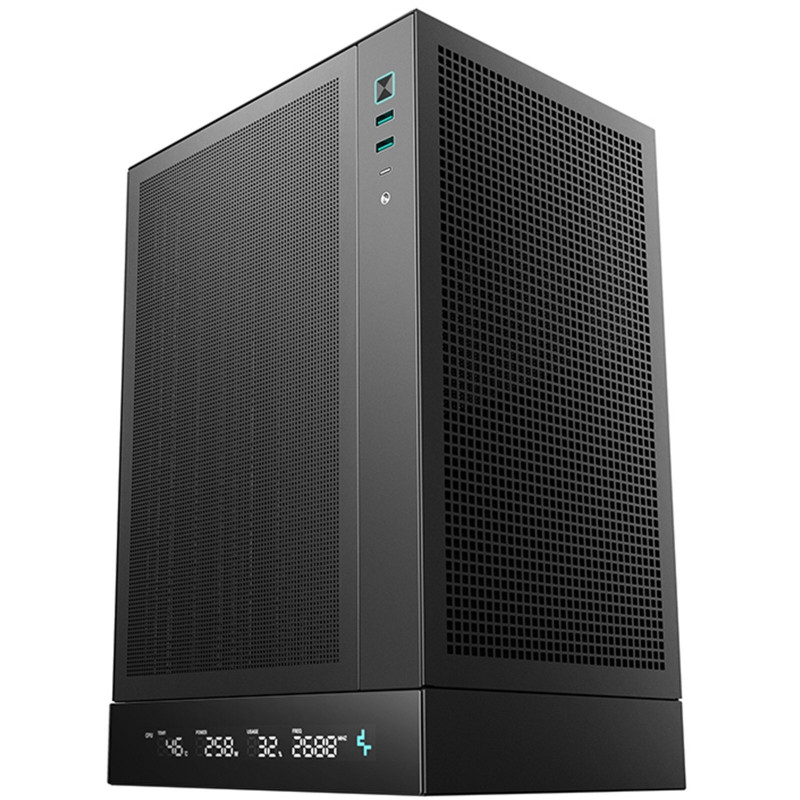

DEEPCOOL CH170 Mini-ITX PC Case

DEEPCOOL CH170 Digital Mini-ITX Case

The DEEPCOOL CH170 Digital is a compact powerhouse designed for the discerning PC enthusiast who demands high performance in a small footprint. This mini-ITX case boasts exceptional airflow, versatile cooling options, and a sleek digital display, making it ideal for gamers, content creators, and anyone seeking a high-end build in a space-saving design. Its flexible internal layout and support for a wide range of components ensure a truly customisable build experience.

Features

• High-airflow design with mesh panels for optimal cooling.
• Integrated digital display showing CPU, GPU, or PSU information.
• Supports air coolers up to 172mm in height.
• Compatible with 240mm AIO liquid coolers.
• Direct GPU mounting (no riser cable needed) for most 65mm thick dual-fan GPUs up to 305mm in length and 138mm in width.
• Supports ATX, SFX, and SFX-L power supplies (up to 140mm).
• Removable fan brackets for flexible storage and cooling configuration.
• Three removable dust filters for easy maintenance.
• Convenient front I/O panel with two USB 3.0 ports, a Type-C port, and hybrid audio.

Specifications

• Brand: DEEPCOOL
• MPN: R-CH170-BKNPI0D-G-1
• EAN: 6933412774228
• Materials: ABS+SPCC
• Motherboard Support: Mini-ITX
• Front I/O Ports: USB 3.0 x 2, Audio x 1, Gen2 Type-C x 1
• 3.5" Drive Bays: 1 (2.5" SSD / 3.5" HDD / 120mm Fan - choose one)
• 2.5" Drive Bays: 1 (2.5" SSD / 3.5" HDD / 120mm Fan - choose one)
• Expansion Slots: 3
• Pre-installed Fans: None
• Fan Support: Top (1 x 120mm), Rear (2 x 120mm), Bottom (1 x 120mm), Side (2 x 120mm)
• Radiator Support: Side (240mm)
• CPU Cooler Height Limit: 172mm
• GPU Size Limit: Length (SFX/SFX-L: 305mm / ATX: 230mm), Height: 138mm, Width: 65mm (3 slots)
• Power Supply Type: ATX PS2 (max length: 140mm) / SFX / SFX-L
• Product Dimensions: 380 x 200 x 250 mm (LxWxH)
• Net Weight: 3.4kg
