DEEPCOOL AN600 Low-Profile CPU Cooler with 120mm PWM Fan

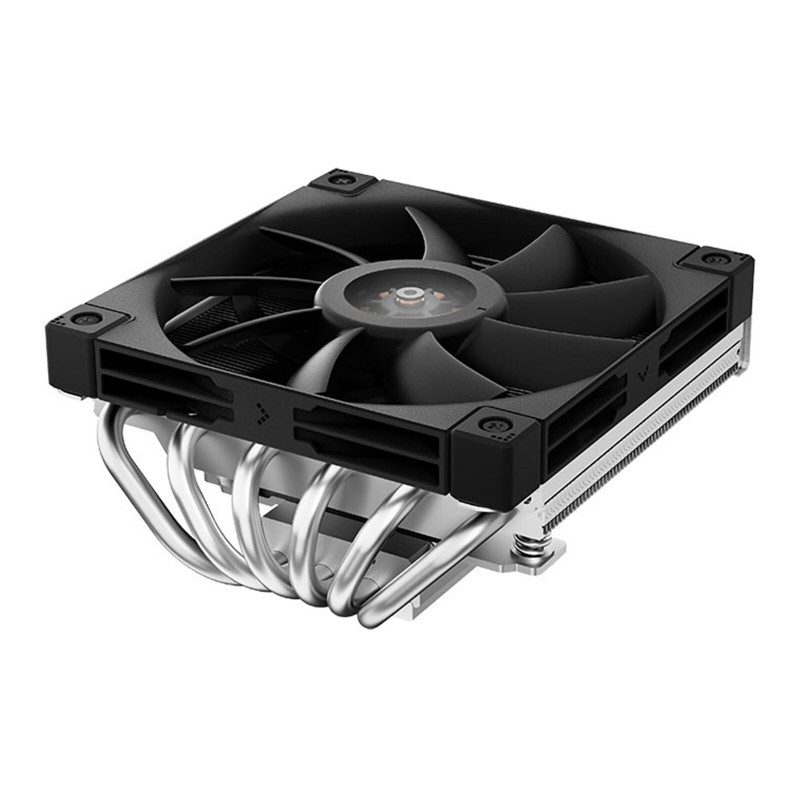

DEEPCOOL AN600 Low-Profile CPU Cooler

The DEEPCOOL AN600 is a high-performance, low-profile CPU cooler designed for PC builders prioritizing compact builds without sacrificing cooling efficiency. Ideal for ITX systems and users with limited clearance, this cooler delivers exceptional performance for both gaming and professional workloads, keeping your CPU and surrounding components cool under pressure. Its innovative design ensures effective cooling even in space-constrained builds.

Features

• Low-profile design (67mm height) perfect for ITX cases and systems with limited clearance.
• 180W TDP cooling capacity for demanding CPUs.
• Efficient 120mm PWM fan with Fluid Dynamic Bearing (FDB) for quiet operation and long lifespan.
• Six 6mm heatpipes for optimal heat dissipation.
• Copper base for superior heat transfer.
• Overhanging design actively cools RAM modules up to 40mm in height.
• Includes a low-noise adapter cable for reduced noise levels.
• Easy-to-install all-metal backplate for secure and even pressure distribution.
• Broad compatibility with Intel and AMD sockets (LGA1700/1200/1151/1150/1155/1851, AM5/AM4).

Specifications

• Brand: DEEPCOOL
• MPN: R-AN600-BKNNMN-G
• EAN: 6933412728146
• Dimensions (Cooler): 122 x 120 x 67 mm (L x W x H)
• Heatsink Dimensions: 121 x 120 x 52 mm (L x W x H)
• Net Weight: 628 g
• Heatpipes: 6 mm x 6 pcs
• Fan Dimensions: 120 x 120 x 15 mm (L x W x H)
• Fan Speed (PWM): 500~1850 RPM ±10%
• Fan Airflow (PWM): 61.56 CFM
• Fan Air Pressure (PWM): 1.97 mmAq
• Fan Noise (PWM): ≤24.4 dB(A)
• Fan Speed (with LSP): 500~1250 RPM ±10%
• Fan Airflow (with LSP): 41.51 CFM
• Fan Air Pressure (with LSP): 1.19 mmAq
• Fan Noise (with LSP): ≤20 dB(A)
• Fan Connector: 4-pin PWM
• Bearing Type: Fluid Dynamic Bearing (FDB)
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.27 A
• Fan Power Consumption: 3.24 W
• LED Type: White LED
