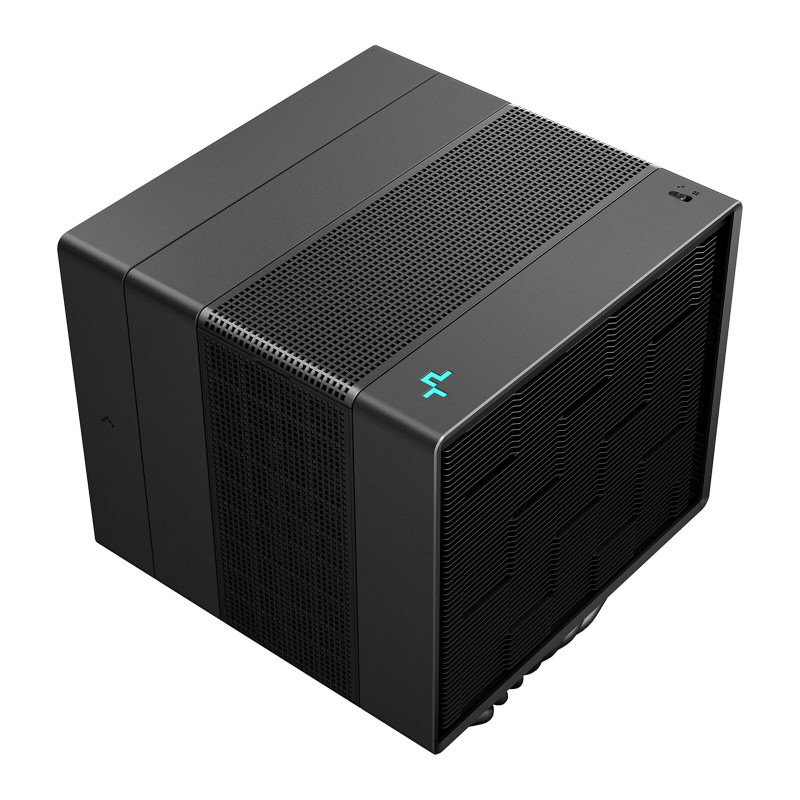

DEEPCOOL ASSASSIN IV 140mm PWM CPU Cooler

DEEPCOOL ASSASSIN IV CPU Cooler (R-ASN4-BKNNMT-G)

Dominate your thermal challenges with the DEEPCOOL ASSASSIN IV, a high-performance CPU cooler engineered for demanding systems. Whether you're a serious gamer pushing overclocked hardware, a content creator rendering complex projects, or a professional demanding peak stability, the ASSASSIN IV delivers exceptional cooling performance with whisper-quiet operation. Its versatile design ensures compatibility with a wide range of Intel and AMD platforms, making it the ideal upgrade for your next-generation build.

Features

• Seven 6mm heat pipes for superior heat dissipation.
• Dual 140mm/120mm PWM fans with Fluid Dynamic Bearing (FDB) for ultra-quiet operation and exceptional airflow.
• Two-mode operation: Switch between "Performance" and "Quiet" modes to optimize for cooling or noise levels.
• Sleek, elegant design with optimized airflow channels.
• Relocatable 120mm fan for maximum RAM clearance.
• Wide compatibility with Intel LGA 2066/2011-v3/2011/1700/1200/1151/1150/1155/1851 and AMD AM5/AM4 sockets.
• Includes high-quality DM9 thermal paste.
• Easy installation process.
• 6-year limited warranty.

Specifications

• Product Dimensions: 144 x 147 x 164 mm
• Heatsink Dimensions: 140 x 110 x 160 mm
• Net Weight: 1575 g
• Heatpipes: 6 mm x 7 pcs
• Fan Dimensions: 140 x 140 x 25 mm / 120 x 120 x 25 mm
• Fan Speed (Performance Mode): 500~1700 RPM (+10%)
• Fan Airflow (Performance Mode): 79.1 CFM / 58.06 CFM
• Fan Air Pressure (Performance Mode): 2.44 mmAq / 2.1 mmAq
• Overall Noise (Performance Mode): ≤29.3 dB(A)
• Fan Speed (Quiet Mode): 500~1350 RPM (+10%)
• Fan Airflow (Quiet Mode): 63.76 CFM / 46.75 CFM
• Fan Air Pressure (Quiet Mode): 1.58 mmAq / 1.35 mmAq
• Overall Noise (Quiet Mode): ≤22.6 dB(A)
• Fan Connector: 4-pin PWM
• Bearing Type: Fluid Dynamic Bearing (FDB)
• Motor Type: 6-Pole Fan Motor
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.1 A / 0.07 A
• Fan Power Consumption: 1.2 W / 0.84 W
• Rated Voltage: 12 VDC
• Power Consumption (Performance Mode): 2.88 W
• Power Consumption (Quiet Mode): 1.56 W
• RAM Clearance (Intel LGA1700/1200/115X): Unobstructed
• RAM Clearance (Intel LGA20XX): 63mm
• RAM Clearance (AMD AM4/AM5): Unobstructed
