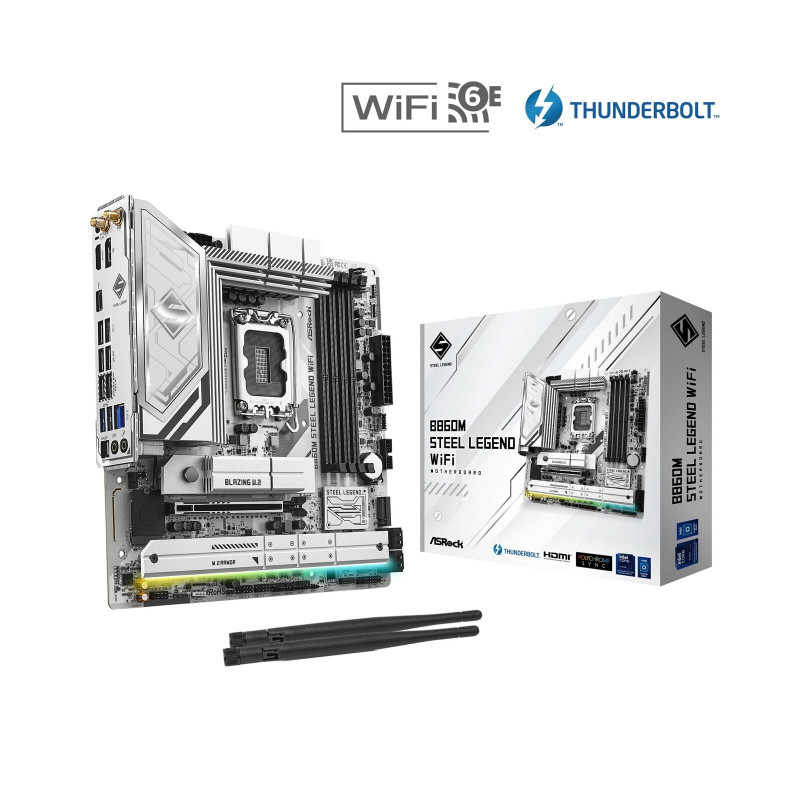

ASRock B860M Steel Legend WiFi Micro-ATX Motherboard

ASRock B860M Steel Legend WiFi Motherboard

Unleash the full potential of your next-generation Intel Core Ultra processor with the ASRock B860M Steel Legend WiFi motherboard. Designed for discerning PC enthusiasts and demanding workloads, this Micro-ATX powerhouse delivers exceptional performance, robust connectivity, and future-proof features. Whether you're a gamer seeking high frame rates, a content creator demanding seamless workflows, or a professional needing reliable stability, the B860M Steel Legend WiFi provides the foundation for a truly exceptional system.

Features

• Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket
• High-performance 12+1+1+1+1 Power Phase Design with 80A SPS for stable power delivery
• Quad-channel DDR5 memory support for speeds up to 8666+ MHz (OC)
• Blazing-fast PCIe 5.0 x16 slot for next-gen graphics cards
• Multiple M.2 slots (including PCIe Gen5 x4) for NVMe SSDs
• Thunderbolt 4 Type-C port offering 40Gbps data transfer speeds
• 2.5GbE LAN and Wi-Fi 6E for ultra-fast networking
• Comprehensive I/O including multiple USB 3.2 Gen2 ports and HDMI/DisplayPort outputs
• Advanced cooling solutions including M.2 heatsinks and a robust heatsink armour
• High-quality components, including ASRock's exclusive 1000uF 20,000-hour capacitors
• BIOS Flashback for easy firmware updates

Specifications

• Form Factor: Micro-ATX (9.6" x 9.6")
• Chipset: Intel B860
• CPU Socket: LGA 1851
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 256GB
• Expansion Slots: 1x PCIe 5.0 x16, 1x M.2 Key E (WiFi/BT)
• M.2 Slots: 1x Blazing M.2 (PCIe Gen5 x4), 3x Hyper M.2 (PCIe Gen4 x4)
• Storage: 4x SATA3 6.0 Gb/s
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth 5.3
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• USB: 1x Thunderbolt 4 Type-C (Rear), 1x USB 3.2 Gen2 Type-C (Front), 2x USB 3.2 Gen2 Type-A (Rear), 6x USB 3.2 Gen1, 6x USB 2.0
• Video Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Thunderbolt 4 Type-C
• BIOS: 256Mb AMI UEFI
