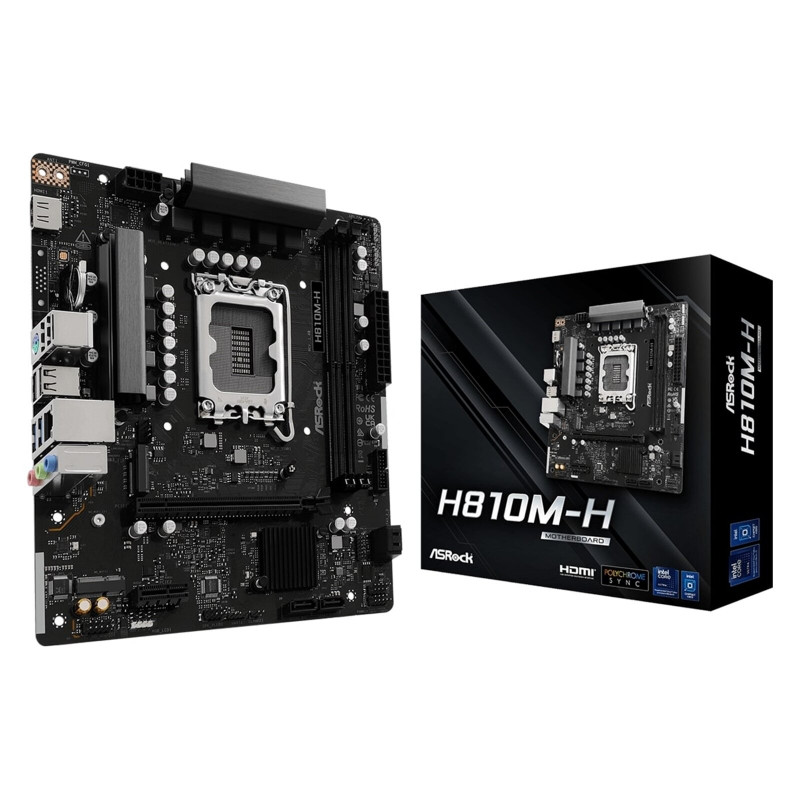

ASRock H810M-H Motherboard

ASRock H810M-H Motherboard

The ASRock H810M-H motherboard is a powerful and versatile Micro ATX platform designed for discerning PC builders seeking a robust foundation for their next system. Ideal for gamers, content creators, and professionals who demand high performance and reliable stability, this motherboard delivers exceptional speed and connectivity, all within a compact form factor. Benefit from cutting-edge features and seamless integration with the latest Intel Core Ultra Processors (Series 2), making it the perfect choice for building a high-performance PC.

Features

• Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket
• Dual-channel DDR5 memory support up to 6400MHz, with two DIMM slots for up to 128GB capacity
• High-speed Hyper M.2 (PCIe Gen4x4) slot for lightning-fast NVMe SSDs
• PCIe 4.0 x16 and x1 slots for expansion cards
• Integrated Intel Xe LPG graphics with HDMI 2.1 output for 4K 120Hz support
• Robust 6+1+1+1+1 power phase design for stable overclocking and heavy workloads
• Realtek ALC897 7.1 channel HD audio for immersive sound
• Realtek Gigabit LAN for fast and reliable network connectivity
• Multiple USB 3.2 Gen1 and USB 2.0 ports for versatile connectivity
• Onboard RGB and addressable RGB headers for customizable lighting effects
• M.2 Key E slot for optional WiFi/BT module (module not included)
• ASRock's optimized aluminum heatsink design for efficient cooling

Specifications

• Chipset: Intel H810
• CPU Socket: LGA1851
• Memory: 2x DDR5 DIMM slots, Dual Channel, up to 6400MHz, Max 128GB
• Storage: 1x Hyper M.2 (PCIe Gen4x4), 4x SATA3 6.0 Gb/s
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x1, 1x M.2 Key E (WiFi/BT)
• Graphics Output: 1x HDMI 2.1
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• LAN: Realtek RTL8111H Gigabit LAN
• USB: 4x USB 3.2 Gen1 (2 Rear, 2 Front), 6x USB 2.0 (4 Rear, 2 Front)
• Form Factor: Micro ATX (22.0 cm x 19.3 cm)
• BIOS: 256Mb AMI UEFI Legal BIOS
• Power Connectors: 1x 24-pin ATX, 1x 8-pin 12V
