DrayTek Vigor 166 VDSL2/G.FAST Ethernet Modem/Bridge

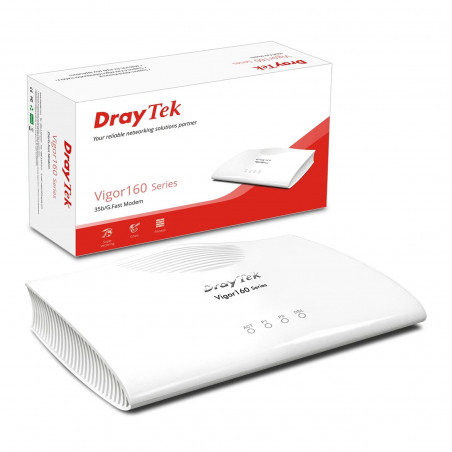

DrayTek V166-K G.FAST and VDSL2 Ethernet Modem/Bridge

The DrayTek V166-K is a high-performance G.FAST and VDSL2 modem/bridge designed for tech-savvy users and professionals requiring a reliable and robust connection. This versatile device seamlessly bridges your DSL line to your existing router or firewall, delivering ultra-fast speeds and exceptional compatibility with various network configurations. Whether you're a home user seeking the best possible broadband speeds or a business needing a dependable connection for critical applications, the V166-K offers a powerful and flexible solution.

Features

• Ultra-fast G.FAST and VDSL2 support for speeds up to 330Mbps download and 50Mbps upload (G.FAST dependent on ISP & Exchange equipment).
• Seamless compatibility with most UK ISPs – minimal configuration required.
• Dual Gigabit Ethernet ports for connecting multiple devices.
• Supports IPTV and Video on Demand services (e.g., YouView, Sky Q).
• Flexible operation modes: Full-bridge modem or mini-router with NAT/DMZ.
• IPv6 and IPv4 compatibility for future-proof networking.
• Wall or shelf mountable for convenient installation.
• Supports advanced features like Vectoring and 35b SuperVectoring for optimal line performance.

Specifications

• Physical Interfaces: 2 x Gigabit Ethernet (1000Mb/s) Ports, WAN1: G.FAST/VDSL - RJ-11, Recessed Factory Reset button
• Performance: Max G.fast Sync Rate: 1.3Gb/s (dependent on ISP & Exchange equipment), Max VDSL2 35b Sync Rate: 300Mb/s, Max VDSL2 17a Sync Rate: 100Mb/s, Max ADSL2+ Sync Rate: 20Mb/s, NAT Performance (Firewall): Up to 700Mb/s (940Mb/s with Hardware Acceleration), NAT Sessions: 10,000
• WAN Features: Pre-Configured with OpenReach network VLAN tag 101, WAN1 Service & Customer (double-tag) VLAN support, Maximum MTU 1508
• G.Fast & DSL Compatibility: BT Infinity Option 1 & Option 2 Compatible, Compliant with Openreach SIN 527 & SIN 498, Auto Detection of G.Fast and VDSL line modes, Support for G.INP & Vectoring, ITU-T G.9700, G.9701 G.Fast (Profile: 106MHz), ITU-T G.993.1 VDSL, ITU-T G.993.2, G.997.1 VDSL2 (Band Plan: G.998, G.997, Annex A, Annex B, Annex C, VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b, OLR, UPBO, DPBO Supported, US0 Supported, Loop Diagnostic Mode, DSL Forum WT-114, ATM Protocols: RFC-2684/RFC-1483 Multiple Protocol over AAL5, RFC-2516 PPP over Ethernet, RFC-2364 PPP over AAL5, Support for RFC4638 for MTU up to 1500
• Power: DC 12V 1A (via external PSU, supplied), Power Requirements: 220-240VAC, Power Consumption: 6.6 Watt Max.
• Dimensions: Length: 181mm, Width: 125mm, Height: 40mm, Weight: 280g
• Operating Temperature: 0 °C ~ 45 °C
• Storage Temperature: -25 °C ~ 70 °C
• Humidity: 10% ~ 90% (non-condensing)
