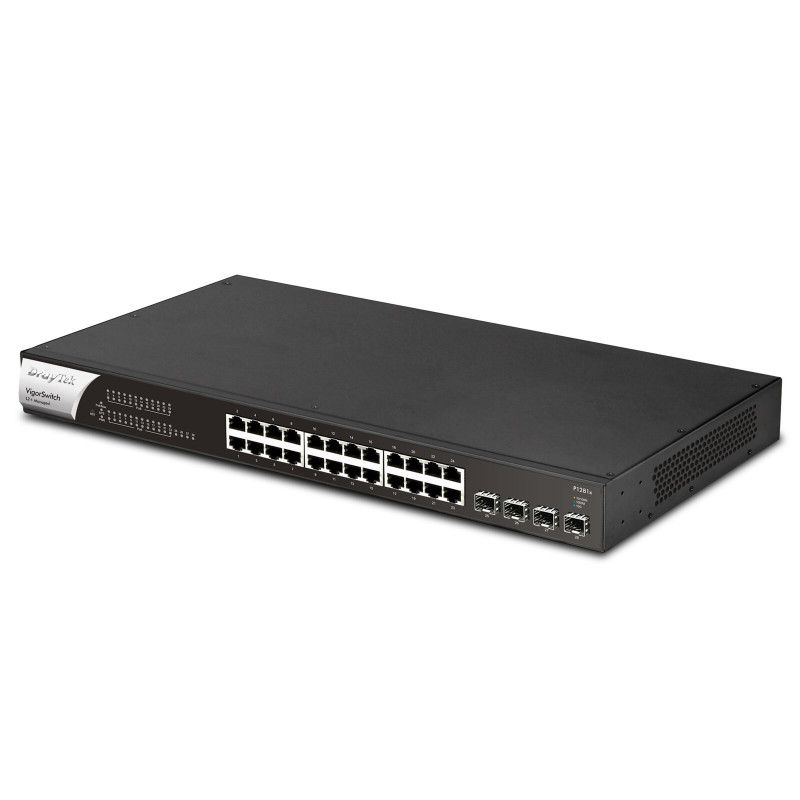

DrayTek VSP1281X-K 24-Port Gigabit PoE Smart Managed Switch with 4x 10GbE SFP Ports

DrayTek VSP1281X-K

The DrayTek VSP1281X-K VigorSwitch is a high-performance, smart-managed Gigabit Ethernet switch ideal for demanding network environments. With its robust feature set, including 24 PoE+ ports and 4 10GbE SFP+ uplinks, this switch is perfect for businesses, network professionals, and demanding home labs requiring high bandwidth and centralized management capabilities. Benefit from seamless integration with DrayTek's management platforms for simplified network administration and enhanced security.

Features

• 24 Gigabit Ethernet PoE+ ports (140W total PoE budget) for powering IP phones, wireless access points, and IP cameras.
• 4 independent 10GbE SFP+ ports for high-speed uplinks to servers, storage, and other network devices.
• Centralized management via DrayTek's VigorACS platform, VigorConnect, or integrated DrayTek router management.
• Advanced features including VLANs (up to 512), QoS, robust security features (ACLs, DoS protection), and link aggregation.
• ONVIF IP camera surveillance management for simplified monitoring and maintenance.
• Comprehensive diagnostics and monitoring tools for proactive network management.
• Supports IPv4 and IPv6 for future-proof networking.
• 2-year return-to-base warranty with optional VigorCare extended warranty options.

Specifications

• Ports: 24 x RJ-45 10/100/1000Mbps PoE+ ports, 4 x SFP+ 10GbE ports
• PoE: IEEE 802.3af/at compliant, 140W total PoE budget, up to 30W per port
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.7 Mpps at 64 bytes
• MAC Addresses: 8k
• VLANs: Up to 512 (out of 4096 VLAN IDs)
• Management: Web UI (HTTP/HTTPS), CLI (SSH/Telnet), VigorACS, VigorConnect, DrayTek Router Management
• Security: ACLs, DoS protection, port security, IP Source Guard, storm control, loop prevention
• Dimensions: 440 x 216 x 44 mm (1U rack mountable)
• Power: 100-240VAC, internal power supply, max. 200W consumption
• Warranty: 2 years RTB
