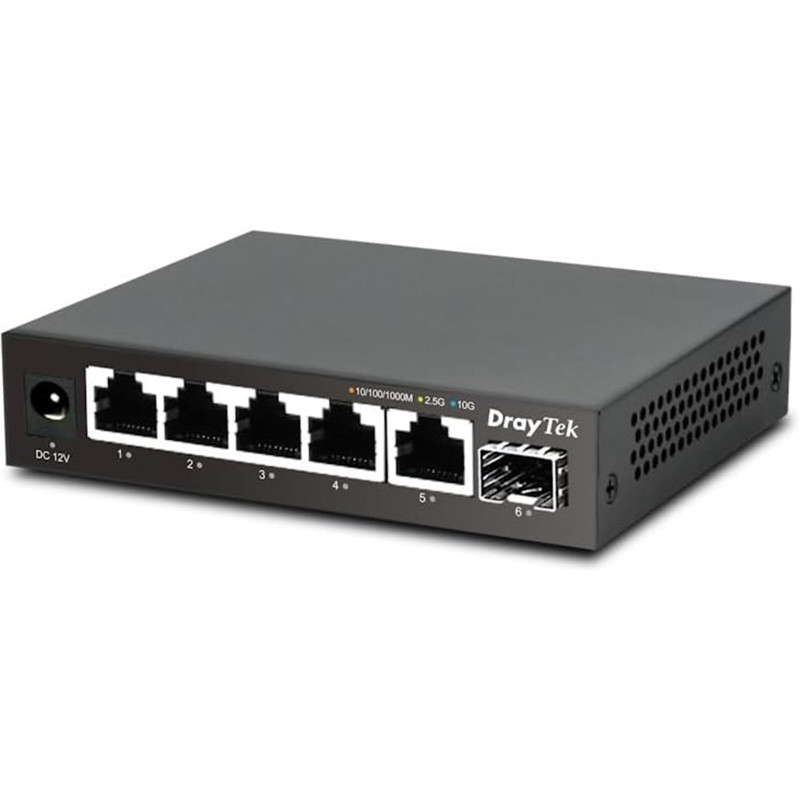

DrayTek VigorSwitch Q60x 5-Port 2.5G Unmanaged Switch

DrayTek VSQ60x 5-Port 2.5G Gigabit Ethernet Switch

The DrayTek VigorSwitch Q60x is a high-performance, compact unmanaged switch ideal for tech enthusiasts, small businesses, and home network users demanding superior speed and connectivity. This fanless, low-power device boasts five 2.5 Gigabit Ethernet ports for lightning-fast data transfer, alongside a 10 Gigabit SFP+ uplink port for seamless integration with existing fibre networks. Experience smoother streaming, faster file transfers, and improved overall network performance without the noise or excessive power consumption of larger switches.

Features

• Five 2.5 Gigabit Ethernet RJ-45 Ports for high-speed local network connections.
• One 10 Gigabit SFP+ port for ultra-fast uplink to fibre networks or other high-speed devices.
• Compact and wall-mountable design for flexible placement in various environments.
• Fanless operation ensures silent, low-power consumption.
• Plug-and-play simplicity for quick and easy installation; no configuration required.
• Supports VLAN tagged and untagged traffic.
• Supports Jumbo Frames up to 12KB.
• Two-year manufacturer's return-to-base warranty (RTB).

Specifications

• Switching Capacity: 45Gbps
• Forwarding Rate: 33.5Mpps (64 bytes)
• MAC Addresses Supported: 4k
• Packet Buffer Size: 8Mbit
• Physical Interfaces: 5 x RJ-45 Ethernet Ports (10/100/1000/2500Mbps), 1 x SFP+ Port (1000Mbps/10Gbps), Factory Reset Button, AC Power Socket
• IEEE Standards Compliance: 802.3u, 802.3z, 802.3ab, 802.3bz, 802.3ae, 802.3x, Auto-negotiation, 802.3az (Energy Efficient Ethernet)
• Power Input: 100-240V @ 0.3A (External Power Supply Included)
• Maximum Power Consumption: 4.85W
• Cooling: Fanless (Passive)
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Humidity: 5% to 95% RH (non-condensing)
• Dimensions (W x D x H): 114 x 90 x 25mm
• Weight (excluding SFP modules/cables): 250g
• Wall Mountable: Yes
