TP-LINK TL-SG1016 16-Port Gigabit Rackmount Switch
search
  • TP-LINK TL-SG1016 16-Port Gigabit Rackmount Switch
TP-LINK

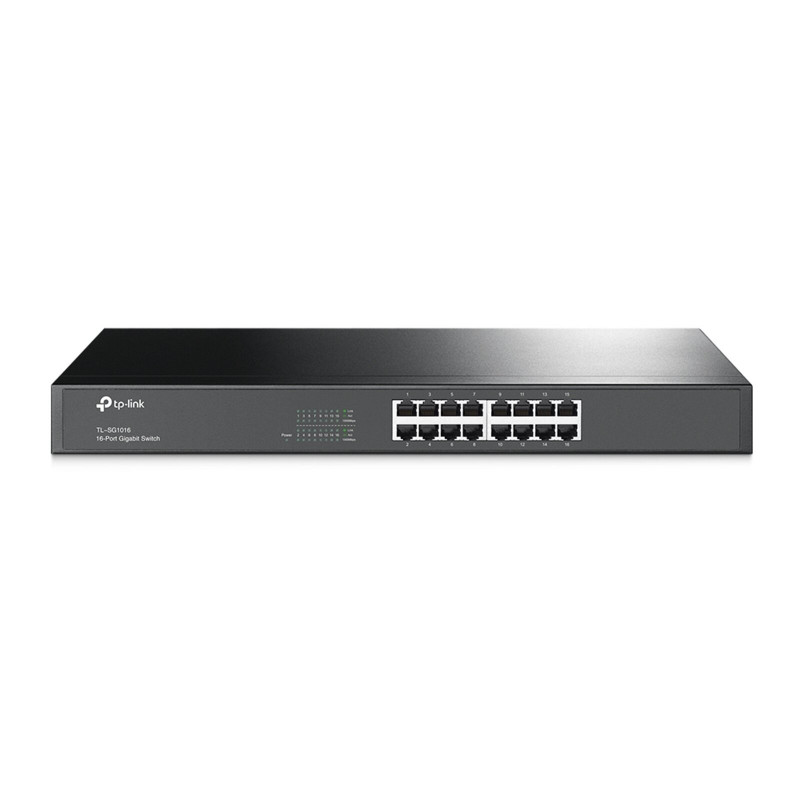

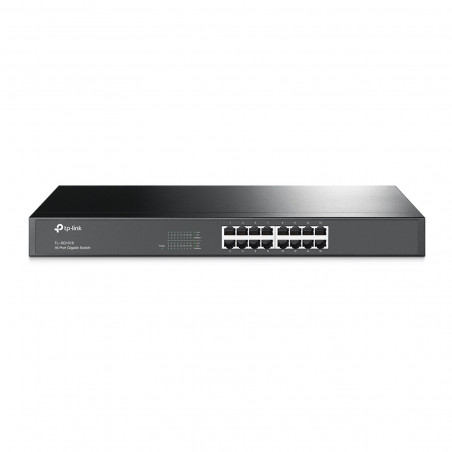

TP-LINK TL-SG1016 16-Port Gigabit Rackmount Switch

Upgrade your network with TP-LINK's 16-port Gigabit switch. Ideal for system builders and small businesses, this robust, rackmount switch delivers blazing-fast wired connections for multiple devices, ensuring seamless data transfer and reliable performance. Metal casing ensures durability.
EAN: 6935364020095
MPN: TL-SG1016
MAN: TP-LINK
£59.08
VAT included

In stock

Order before 4:00PM for next working day delivery

Quantity

Main Points

TP-LINK TL-SG1016 16-Port Gigabit Rackmount Network Switch

Upgrade your network infrastructure with the TP-LINK TL-SG1016, a robust and efficient 16-port Gigabit Ethernet switch ideal for demanding environments. This rack-mountable switch delivers high-performance connectivity for businesses, data centers, and tech enthusiasts requiring reliable, high-speed networking. Benefit from seamless plug-and-play installation, energy-efficient design, and advanced features for optimal network performance and scalability.

Features

  • 16 10/100/1000Mbps RJ45 ports for high-speed connectivity.
  • Energy-efficient design reduces power consumption and environmental impact.
  • Auto MDI/MDIX support eliminates the need for crossover cables.
  • Auto-negotiation for optimal performance and compatibility with various devices.
  • Non-blocking switching architecture ensures maximum throughput.
  • 10KB Jumbo Frame support improves large file transfer performance.
  • IEEE 802.3x flow control for reliable operation under heavy traffic.
  • Standard 19-inch rack-mountable steel case for easy integration into existing infrastructure.
  • Supports MAC address self-learning for efficient network management.
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.

Specifications

  • Ports: 16 x 10/100/1000Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)
  • Switching Capacity: 32Gbps
  • Packet Forwarding Rate: 23.8Mpps
  • MAC Address Table: 8K
  • Jumbo Frame: 10KB
  • QoS: 802.1p/DSCP QoS (V12 and later versions)
  • Transfer Method: Store-and-Forward
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • Network Media: 10BASE-T (UTP Cat 3, 4, 5 cable, max 100m); 100BASE-TX/1000BASE-T (UTP Cat 5, 5e or above, max 100m)
  • Fan: Fanless
  • Power Supply: 100-240VAC, 50/60Hz
  • Dimensions: 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
  • Max Power Consumption: 9.26W (220V/50Hz)
  • Max Heat Dissipation: 31.60 BTU/h
  • Mounting: Rack Mountable
  • Certifications: FCC, CE, RoHS
  • Operating Temperature: 0°C - 40°C
  • Storage Temperature: -40°C - 70°C
  • Operating Humidity: 10% - 90% non-condensing
  • Storage Humidity: 5% - 90% non-condensing
