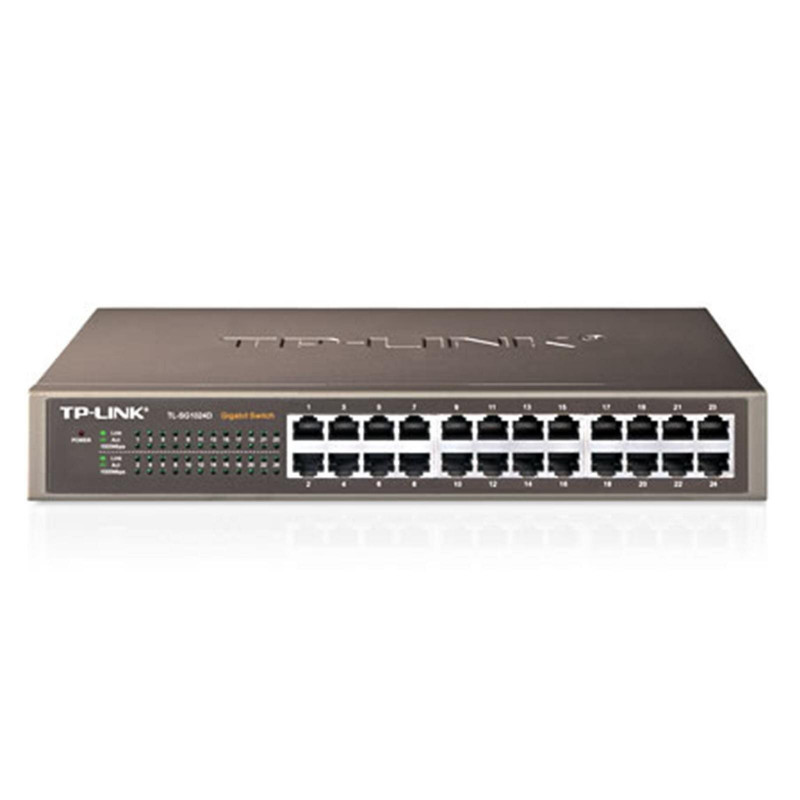

TP-LINK TL-SG1024D 24-Port Gigabit Network Switch

TP-LINK TL-SG1024D 24-Port Gigabit Ethernet Switch

Upgrade your network infrastructure with the TP-LINK TL-SG1024D, a robust and efficient 24-port Gigabit Ethernet switch ideal for demanding environments. Whether you're a gamer needing low-latency connections, a content creator transferring large files, or a professional managing a small office network, this switch delivers high-performance connectivity with ease of use. Its energy-efficient design minimizes power consumption, making it a cost-effective and environmentally conscious choice.

Features

• 24 Gigabit RJ45 ports for high-speed data transfer (10/100/1000 Mbps).
• Auto MDI/MDIX support eliminates the need for crossover cables, simplifying setup.
• Auto-negotiation on each port ensures optimal performance and compatibility with various devices.
• Non-blocking switching architecture for maximum throughput and minimal latency.
• Energy-efficient design reduces power consumption and environmental impact.
• Supports 10KB Jumbo Frame for improved large file transfer performance.
• IEEE 802.3x flow control and backpressure for reliable network operation.
• Rack-mountable design for flexible deployment in various settings.
• Plug-and-play installation for quick and easy setup.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface: 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
• Mounting: Rack Mountable
• Max Power Consumption: 13.08W (220V/50Hz)
• Max Heat Dissipation: 44.63 BTU/h
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Certification: FCC, CE, RoHS
