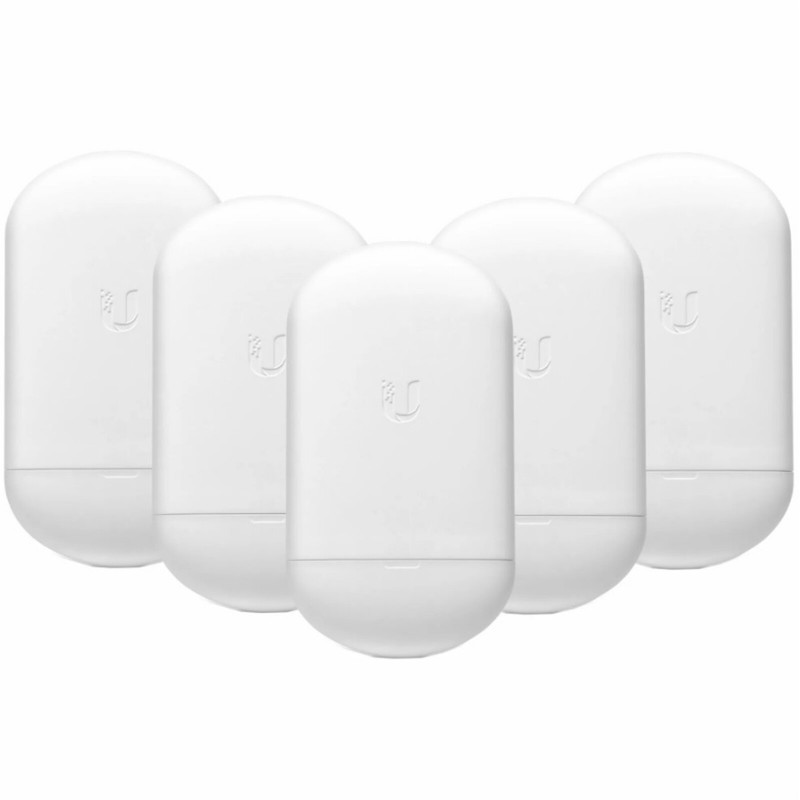

UBIQUITI Loco5AC 5GHz 13dBi airMAX Outdoor CPE

Ubiquiti Loco5AC-5 NanoStation AC Loco 5GHz

The Ubiquiti Loco5AC-5 NanoStation AC Loco is a high-performance, cost-effective 5GHz wireless CPE bridge ideal for professionals and enthusiasts requiring robust, long-range outdoor wireless connectivity. This compact and weatherproof device leverages Ubiquiti's advanced airMAX technology for superior throughput, low latency, and exceptional noise immunity, making it perfect for point-to-point (PtP) and point-to-multipoint (PtMP) deployments. Its ease of setup via the UMobile app and powerful features make it a versatile solution for various applications, from extending network coverage to creating reliable wireless links.

Features

• airMAX ac Protocol: Provides superior performance and efficiency compared to standard Wi-Fi protocols.
• Long-Range PtP & PtMP Capabilities: Ideal for bridging distances and creating reliable wireless networks.
• Integrated Antenna: Streamlined design with a 13dBi gain antenna for optimal signal strength.
• UMobile App Support: Easy setup and configuration via a dedicated mobile application (iOS and Android).
• Robust Security: Strong WPA2 encryption for secure wireless connections.
• Weatherproof Design: Durable outdoor enclosure for reliable operation in various weather conditions.
• Flexible Channel Selection: Supports various channel widths for optimal performance and interference avoidance.
• Passive PoE: Simple and efficient power delivery via Passive Power over Ethernet.

Specifications

• Frequency: 5GHz
• Gain: 13dBi
• Polarization: Dual Linear
• Dimensions (mm): 163 x 31 x 80
• Weight: 0.18 kg
• Power Supply (PoE): 24V, 0.5A
• Max. Power Consumption: 5.5W
• Enclosure: Outdoor UV Stabilised Plastic
• Mounting: Pole Mounting Kit Included
• Operating Temperature: -30 to 75°C
• Operating Humidity: 5 to 95% Condensing
• Processor: Atheros MIPS 24KC, 400 MHz
• Memory: 32 MB SDRAM, 8 MB Flash
• Networking Interface: (1) 10/100 Ethernet Port
• Wireless Approvals: FCC Part 90Z
• RoHS Compliance: Yes
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.4:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
