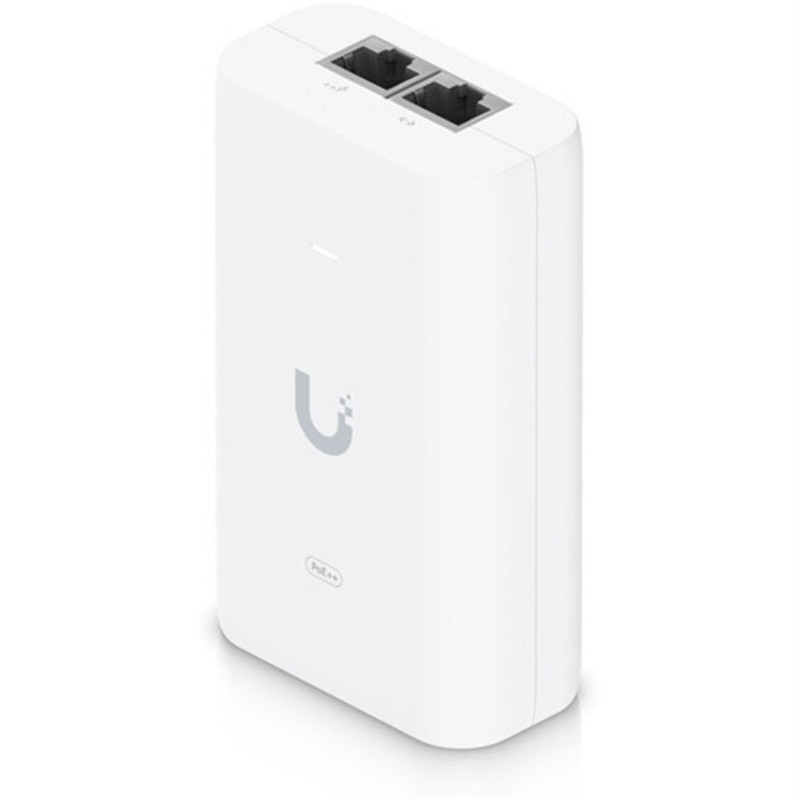

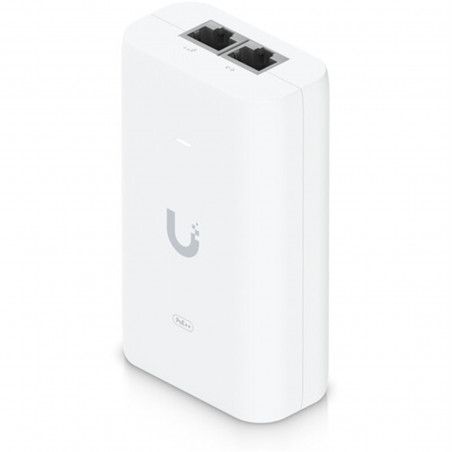

UBIQUITI U-PoE++ 60W PoE Injector

Ubiquiti U-PoE++

Power your demanding UniFi network devices with the Ubiquiti U-PoE++ 60W PoE++ Injector. Ideal for power-hungry applications like wireless mesh deployments or extending PoE capabilities beyond your existing switch infrastructure, this robust and reliable injector provides a clean, efficient power solution for tech professionals and enthusiasts alike. Eliminate power limitations and enjoy the peace of mind that comes with robust surge protection and reliable performance.

Features

• Delivers up to 60W of PoE++ power for demanding UniFi devices.
• Compact and easy integration into existing network setups.
• Gigabit LAN port for high-speed data transmission.
• Comprehensive protection against surges, peak pulses, and overcurrent.
• LED indicator for convenient status monitoring.
• Universal AC input (100-240V) for global compatibility.
• High efficiency (85%+).
• Certified to meet international safety and compliance standards (CE, FCC, IC, UL, UKCA, KC, CCC, RoHS).

Specifications

• Model: U-PoE++
• Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
• Weight: 210 g (7.4 oz)
• Output Voltage: 48V DC @ 1.25A
• Gigabit LAN Port: Yes
• Rated Voltage: 100-240V AC @ 50/60Hz
• Input Current: 1.3A @ 120V AC, 0.75A @ 230V AC
• Inrush Current: <100A peak @ 120V AC, <200A peak @ 230V AC
• Efficiency: 85+%
• Output Ripple: 1% max.
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• AC Connector: IEC-320 C6
• Data In / PoE: RJ45 shielded socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20 µs) power
• Peak Pulse Current: 36A (10/1000 µs) data
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Storage Temperature: -30 to 70°C (-22 to 158° F)
• Operating Humidity: 10 to 95% noncondensing
