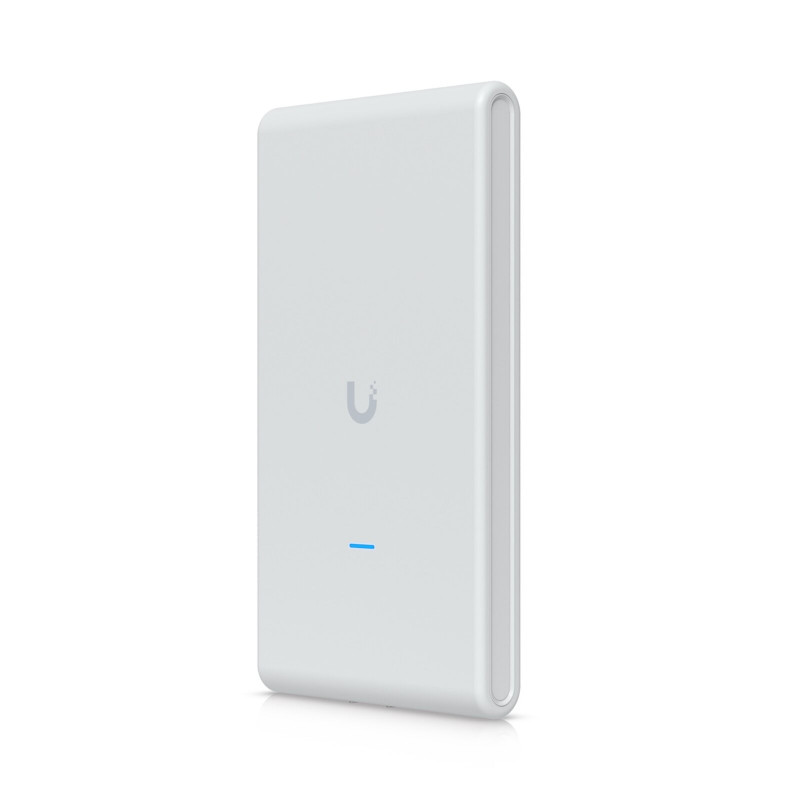

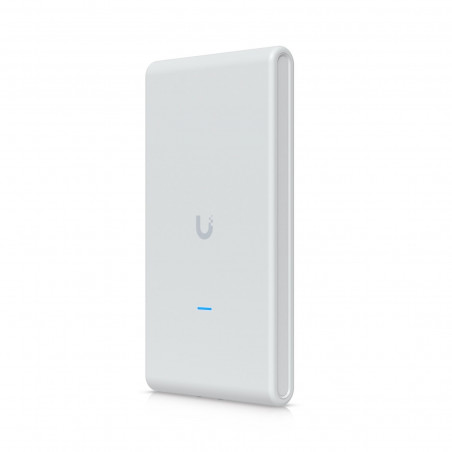

UBIQUITI U6-Mesh-Pro WiFi 6 Access Point

Ubiquiti U6-Mesh-Pro

Expand your network's reach and performance with the Ubiquiti U6-Mesh-Pro, a powerful and versatile WiFi 6 access point ideal for tech enthusiasts, businesses, and anyone demanding robust, high-speed wireless connectivity. This indoor/outdoor unit boasts exceptional range, high-density client support, and advanced features for seamless network management. Whether you're extending coverage across a large property, creating a reliable network for a busy office, or simply seeking superior WiFi performance, the U6-Mesh-Pro delivers unparalleled reliability and speed.

Features

• High-Performance WiFi 6: Experience blazing-fast speeds and reduced latency with the latest WiFi 6 (802.11ax) technology.
• Extended Range: Cover up to 185m² (2,000 ft²) with the integrated omnidirectional super antenna.
• High-Density Client Support: Connect over 350 devices simultaneously without performance degradation.
• Indoor/Outdoor Use: Durable, weatherproof (IPX6) design suitable for various environments.
• Gigabit Ethernet Passthrough: Provides a convenient wired connection for additional devices.
• Flexible Mounting: Easily mount on walls or poles with included hardware.
• Advanced Management: Seamless integration with the UniFi Network controller for centralized management.
• Power over Ethernet (PoE): Simplified installation and power delivery.

Specifications

• Brand: Ubiquiti
• Model: U6-Mesh-Pro
• MPN: U6-MESH-PRO
• EAN: 810084695180
• WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
• Spatial Streams: 4
• Max. Data Rate: 2.4GHz: 573.5 Mbps (BW40), 5GHz: 2.4 Gbps (BW160)
• Antenna Gain: 2.4GHz: 8 dBi, 5GHz: 8 dBi
• Networking Interface: (2) GbE RJ-45 ports
• Power Method: PoE (48V, 0.5A adapter included)
• Supported Voltage Range: 42.5—57V DC
• Max. Power Consumption: 9W
• Max. TX Power: 2.4GHz: 22 dBm, 5GHz: 27 dBm
• MIMO: 2.4GHz: 2x2 (DL/UL MU-MIMO), 5GHz: 2x2 (DL/UL MU-MIMO)
• Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
• Weight: 819 g (1.8 lb)
• Enclosure Material: UV-stabilized polycarbonate
• Mount Material: Aluminum alloy, steel
• Pole Diameter Compatibility: 1~2.5" on pipe outer diameter
• Weatherproofing: IPX6
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• Concurrent Clients: 350+
