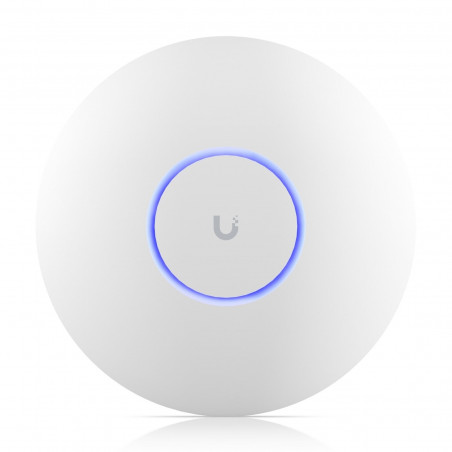

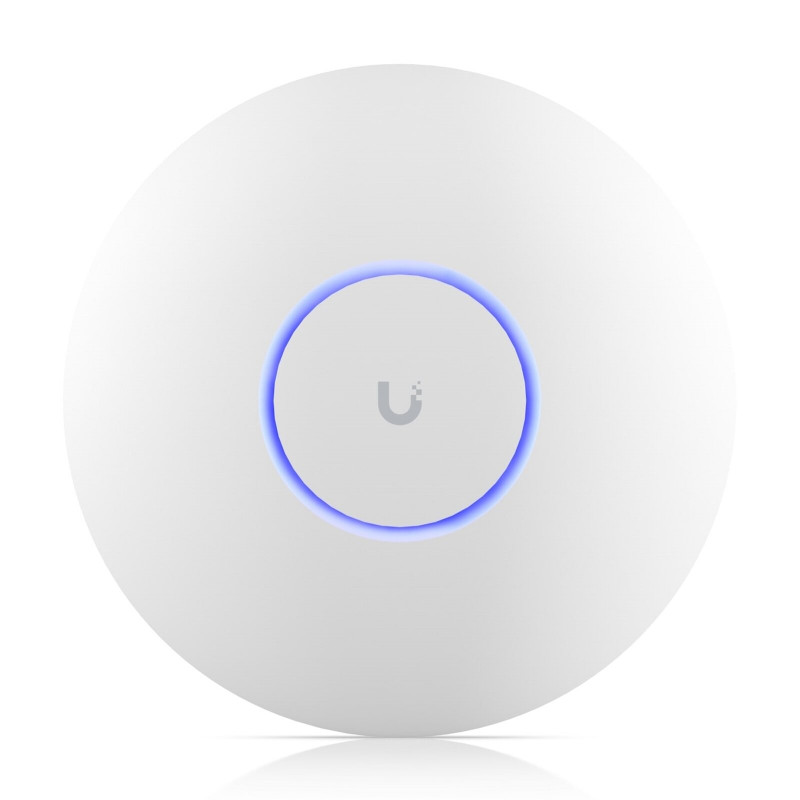

UBIQUITI U7-PRO-MAX WiFi 7 Ceiling Access Point with 2.5GbE Uplink

Ubiquiti U7-PRO-MAX WiFi 7 Access Point

Experience the future of Wi-Fi with the Ubiquiti U7-PRO-MAX, a cutting-edge WiFi 7 access point designed for demanding users and high-density environments. Whether you're a gamer needing ultra-low latency, a content creator demanding high bandwidth, or a business requiring seamless connectivity for hundreds of devices, the U7-PRO-MAX delivers unparalleled performance and reliability. Its tri-band operation and advanced features ensure a superior wireless experience, exceeding the capabilities of previous generations.

Features

• Blazing-fast WiFi 7 with 6 GHz support for unparalleled speeds and capacity.
• Tri-band operation (2.4GHz, 5GHz, 6GHz) for optimal channel utilization and reduced interference.
• 8 spatial streams for maximum throughput and coverage.
• Real-time spectral analysis for intelligent channel selection and optimal performance.
• Extensive coverage area of up to 160 m² (1,750 ft²) and support for 500+ connected devices.
• 2.5 GbE uplink for high-speed wired connectivity to your network.
• Advanced security protocols for robust network protection.
• Sleek and professional design for easy installation and integration.
• PoE+ powered for convenient and efficient deployment.

Specifications

• Dimensions: 206 x 46 mm (8.1 x 1.8")
• Weight: 680 g (1.5 lb)
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• Networking Interface: (1) 1/2.5 GbE RJ45 port
• Management Interface: Ethernet
• Power Method: PoE+
• Supported Voltage Range: 44—57V DC
• Max. Power Consumption: 22W
• Max. TX Power: 2.4 GHz - 23 dBm, 5 GHz - 29 dBm, 6 GHz - 23 dBm
• MIMO: 2.4 GHz - 2x2, 5 GHz - 4x4, 6 GHz - 2x2
• Throughput Rate (Approximate): 2.4 GHz - 688 Mbps, 5 GHz - 8648 Mbps, 6 GHz - 5765 Mbps
• Antenna Gain: 2.4 GHz - 4dBi, 5 GHz - 6 dBi, 6 GHz - 5.9 dBi
• WiFi Standards: 802.11a/b/g/n/ac/ax/be
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Mounting: Wall, ceiling (hardware included)
• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
