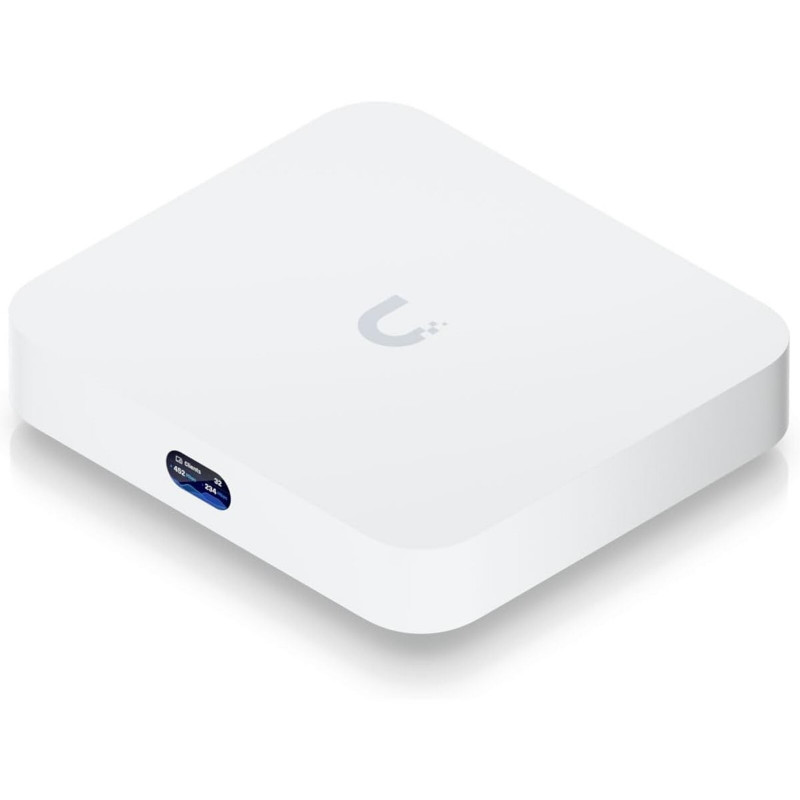

UBIQUITI UCG-Ultra UniFi Cloud Gateway Ultra Router

Ubiquiti UCG-Ultra UniFi Cloud Gateway

The Ubiquiti UCG-Ultra is a powerful and versatile UniFi Cloud Gateway designed for businesses and tech enthusiasts demanding robust network management and advanced security features. This all-in-one solution combines a high-performance router with a UniFi Network controller, providing seamless control over your entire network infrastructure. Ideal for managing large networks with numerous devices and users, the UCG-Ultra offers unparalleled scalability and reliability.

Features

• Manages 30+ UniFi Network devices and 300+ clients
• 1 Gbps routing with integrated Intrusion Detection/Prevention System (IDS/IPS)
• Multi-WAN load balancing for enhanced connection reliability and failover
• 0.96" LCM status display for quick monitoring and status checks
• USB-C powered (UK adapter included) for convenient power delivery
• Advanced security features including application-aware firewall, signature-based IPS/IDS, and content filtering
• Supports various VPN protocols including WireGuard, L2TP, OpenVPN, and IPsec
• SD-WAN capabilities for optimized network performance and redundancy

Specifications

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• System Memory: 3 GB DDR4
• On-Board Storage: 16 GB eMMC
• Networking Interfaces: (4) GbE RJ45 LAN ports, (1) 1/2.5 GbE RJ45 WAN port
• IDS/IPS Throughput: 1 Gbps
• Power: USB Type-C (5V DC/3A), 100–240V AC supported
• Max. Power Consumption: 6.2W
• Dimensions: 141.8 x 127.6 x 30 mm
• Weight: 520 g
• Enclosure Material: Polycarbonate
• Management Interface: Ethernet, Bluetooth
• Operating Temperature: -10 to 40° C (14 to 104° F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
