UBIQUITI UDB-Pro-Sector PtMP WiFi 5 Bridge

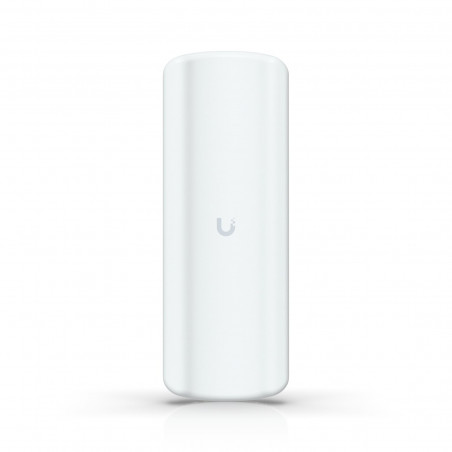

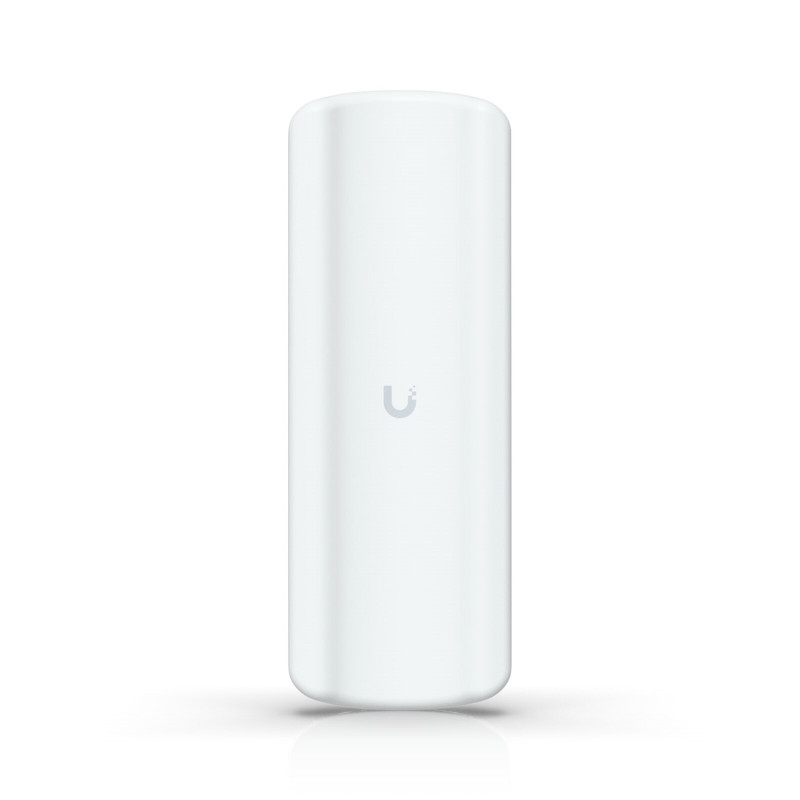

Ubiquiti UDB-Pro-Sector

Expand your wireless network's reach with the Ubiquiti UDB-Pro-Sector, a robust and high-performance 5 GHz point-to-multipoint (PtMP) access point. Ideal for professionals requiring reliable long-range wireless connectivity, this weatherproof device delivers exceptional performance and scalability for demanding applications such as bridging networks across challenging terrains or extending Wi-Fi access to remote locations. Its robust design and advanced features make it a perfect solution for building resilient and high-throughput wireless networks.

Features

• High-performance 5 GHz PtMP wireless bridge for connecting 40+ clients over distances exceeding 5km.
• IPX6 weatherproofing for reliable operation in harsh outdoor environments.
• Powerful 17 dBi antenna for extended range and superior signal strength.
• Supports 802.11ac (Wi-Fi 5) for high data rates up to 400 Mbps.
• Robust construction with UV-stabilized polycarbonate enclosure and mounting.
• PoE powered for convenient and efficient installation.
• WPA2 AES encryption for secure wireless connections.
• Easy management via Ethernet or Wi-Fi.

Specifications

• Brand: Ubiquiti
• MPN: UDB-Pro-Sector
• EAN: 0810084698037
• WiFi Standard: 802.11ac (Wi-Fi 5)
• Frequency: 5 GHz
• Spatial Streams: 2x2 MIMO
• Max. Data Rate: 400 Mbps (BW40)
• Antenna Gain: 17 dBi
• Max. TX Power: 25 dBm
• Range: 5+ km
• Power: PoE (42.5-57V DC), 6W max consumption
• Networking Interface: 1 x GbE RJ45 port
• Weatherproofing: IPX6
• Dimensions: 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8")
• Weight: 782g (1.7lb) (device only); 835g (1.8lb) (with mount)
• Mounting: Pole mount (0.9-2.4" diameter)
• Certifications: CE, FCC, IC
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 5% to 95% non-condensing
