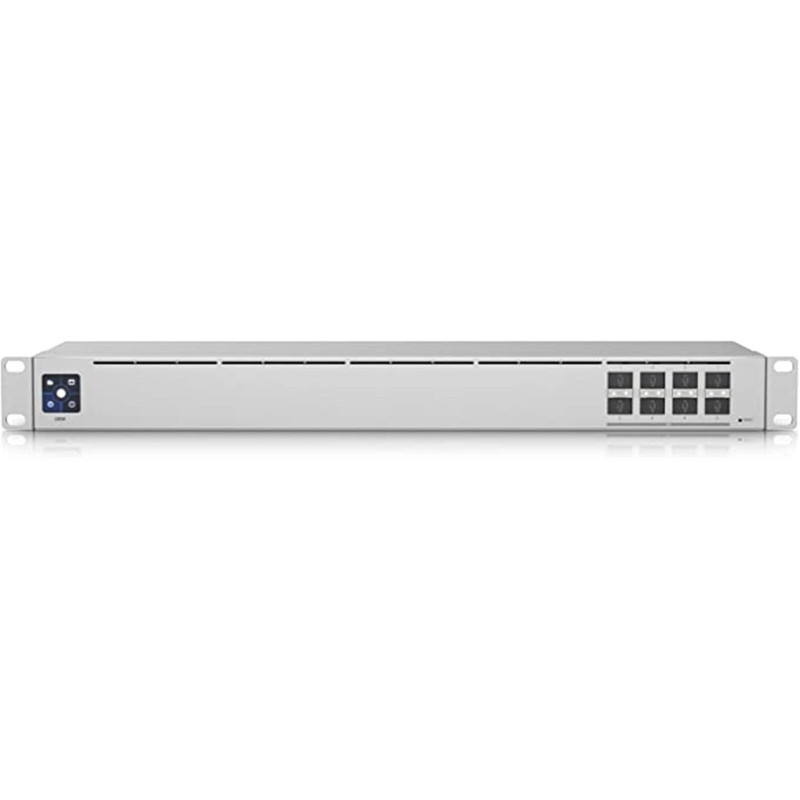

UBIQUITI USW-AGGREGATION 8-Port 10Gb SFP+ Layer 2 Switch

Ubiquiti USW-Aggregation

The Ubiquiti USW-Aggregation 8-port 10Gb SFP+ Layer 2 Aggregation Switch is a powerful and versatile solution for demanding network environments. Designed for tech-savvy users and professionals requiring high-bandwidth connectivity, this switch delivers exceptional performance and scalability for applications such as high-resolution video editing, large file transfers, and demanding server deployments. Its compact design and robust features make it ideal for both small office/home office (SOHO) and larger enterprise settings.

Features

• Eight 10 Gigabit SFP+ ports for high-speed connectivity.
• 160 Gbps switching capacity and 80 Gbps non-blocking throughput for seamless data flow.
• Compact, fanless design with a 1.3" color touchscreen for easy monitoring and configuration.
• Rack-mountable for easy integration into existing infrastructure.
• Supports various SFP+ modules (UACC-OM-MM-10G, UACC-OM-SM-10G, UACC-CM-RJ45-10G) for flexible network configurations.
• Managed via the intuitive UniFi Network software for remote monitoring and control.
• Robust ESD/EMP protection for enhanced reliability.
• One-year warranty.

Specifications

• Total Non-Blocking Throughput: 80 Gbps
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• Max Power Consumption: 30W
• Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply: AC/DC, Internal, 36W
• Management Interface: Ethernet In-Band
• Max. Number of Supported SFP+ Modules: UACC-OM-MM-10G (8), UACC-OM-SM-10G (8), UACC-CM-RJ45-10G (4)
• ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC
• Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
• Weight (Without Mount): 2.65 kg (5.84 lb)
• Weight (With Mount): 2.74 kg (6.04 lb)
• Enclosure Material: SGCC Steel
