UBIQUITI USW-PRO-MAX-16 16-Port Gigabit Layer 3 Managed Switch

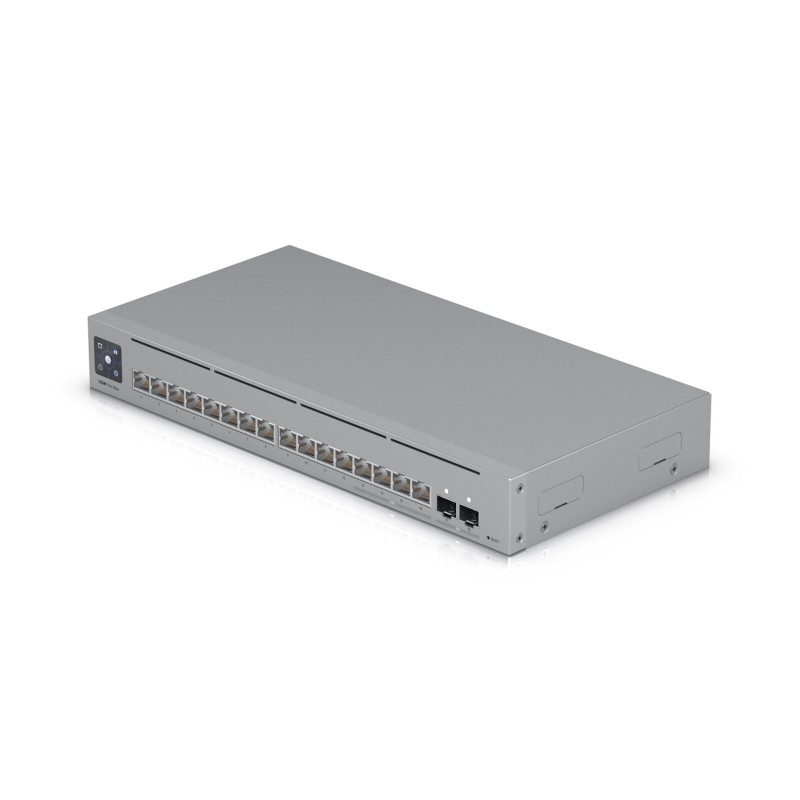

Ubiquiti USW-PRO-MAX-16

The Ubiquiti USW-PRO-MAX-16 is a high-performance, Layer 3 managed Gigabit switch designed for demanding network environments. Ideal for IT professionals, network administrators, and power users requiring robust network infrastructure, this switch delivers exceptional speed, flexibility, and advanced management capabilities. Its compact design and versatile mounting options make it suitable for a wide range of deployments, from small offices to larger enterprise networks.

Features

• 16-port Gigabit Ethernet switch with enhanced Layer 3 capabilities
• Four 2.5 GbE ports for increased bandwidth to compatible devices
• Two 10G SFP+ ports for high-speed uplinks and network expansion
• Intuitive Etherlighting ports providing visual status indicators for speed, link, and VLAN
• Fanless design ensures silent operation
• Versatile mounting options: desktop, wall, and rack-mountable (rack mount kit sold separately)
• Advanced Layer 2 and Layer 3 features including VLANs, routing, ACLs, and port aggregation
• Robust management interface via Ethernet in-band
• High switching capacity and forwarding rate for optimal network performance
• Compact and durable SGCC steel enclosure

Specifications

• Ports: 12 x GbE RJ45, 4 x 1/2.5 GbE RJ45, 2 x 10G SFP+
• Total Non-Blocking Throughput: 42 Gbps
• Switching Capacity: 84 Gbps
• Forwarding Rate: 62.496 Mpps
• Power: 5V, 25W Type-C adapter
• Max Power Consumption: 25W
• Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
• Weight: 1.95 kg (4.3 lb)
• Enclosure Material: SGCC steel
• Management Interface: Ethernet In-Band
• Display: 1.3" touchscreen LCM
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
