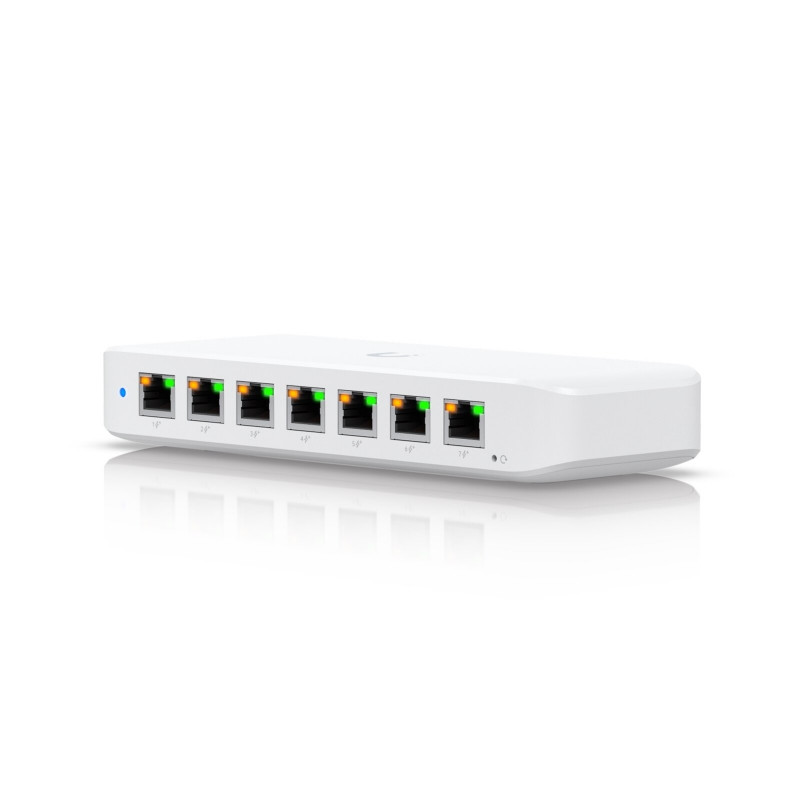

Ubiquiti USW-Ultra-60W 8-Port Gigabit PoE+ Switch

Ubiquiti USW-Ultra-60W

The Ubiquiti USW-Ultra-60W is a powerful and compact 8-port Gigabit Ethernet PoE+ switch, ideal for demanding network environments. Whether you're a professional deploying a robust network infrastructure, a content creator needing reliable high-bandwidth connectivity for multiple devices, or a gamer requiring low-latency performance, this switch delivers exceptional speed, flexibility, and PoE capabilities. Its robust feature set and versatile mounting options make it a perfect solution for a wide range of applications.

Features

• 8 Gigabit Ethernet ports with 7 supporting PoE+
• One Gigabit Ethernet port with optional PoE++ input for higher-power devices
• 52W PoE availability with the included 60W AC adapter
• Compact and versatile design with multiple mounting options
• Layer 2 switching with advanced features like port isolation, storm control, and multicast/broadcast rate limiting
• High switching capacity and forwarding rate for optimal network performance
• UniFi Network management compatibility (version 8.0.7 and later)
• Durable polycarbonate enclosure

Specifications

• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
• Weight: Device: 320 g (11.3 oz); Wall mount: 45 g (1.6 oz); 60W adapter: 330 g (11.6 oz)
• Enclosure Material: Polycarbonate
• Management Interface: Ethernet In-Band
• Networking Interface: (8) GbE RJ45 ports
• PoE Interface: (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.904 Mpps
• Power Method: 54V, 1.1A power adapter (Included); PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
• Power Supply: 54V, external, 1.1A/60W
• Supported Voltage Range: 44—57V DC
• Max. Power Consumption: 9W with PoE input (Excluding PoE output); 8W with AC adapter input (Excluding PoE output)
• Total Available PoE: PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W
• Max. PoE+ Wattage Per Port by PSE: 30W
• Button: Factory Reset
• Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F); 60W AC adapter input: -20 to 45° C (-4 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
