UBIQUITI USW-ULTRA 8-Port Gigabit PoE++ Managed Switch

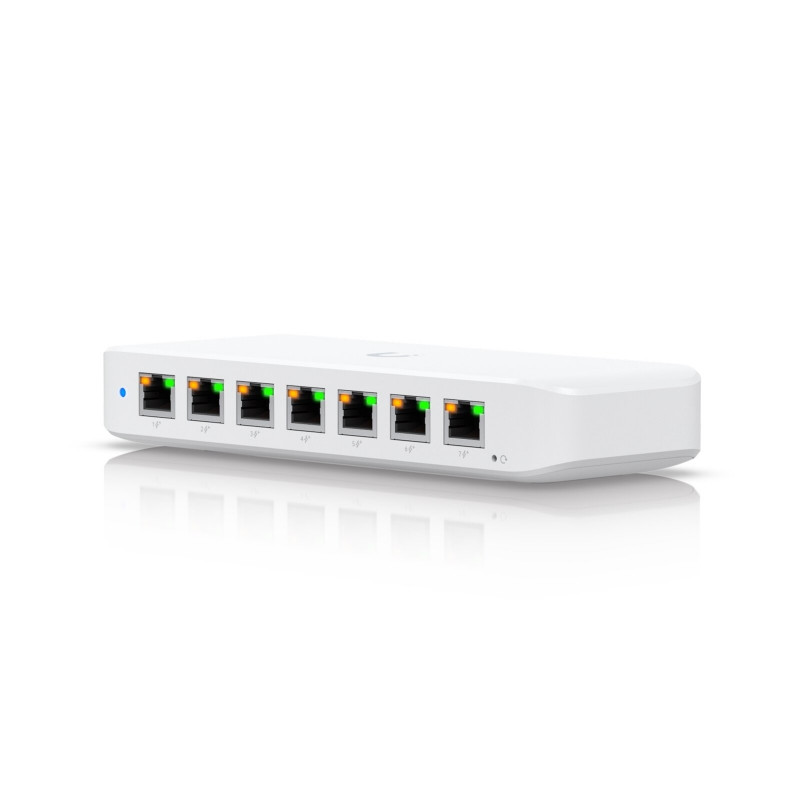

Ubiquiti USW-ULTRA

The Ubiquiti USW-ULTRA is a powerful and compact 8-port Gigabit Ethernet PoE++ managed switch, ideal for demanding network environments. Whether you're a professional deploying a robust network infrastructure, a content creator needing reliable high-bandwidth connectivity for multiple devices, or a gamer demanding low-latency performance, the USW-ULTRA delivers exceptional performance and flexibility. Its versatile mounting options and advanced features make it a perfect solution for various applications.

Features

• 8-port Gigabit Ethernet switch with 7 PoE+ ports and 1 PoE++ input port.
• High PoE power budget: Up to 42W with PoE++ input, or 16W with PoE+ input, enabling the powering of demanding devices.
• Compact and versatile design with multiple mounting options.
• Advanced Layer 2 features including port isolation, storm control, port mirroring, and more for enhanced network security and management.
• High switching capacity (16 Gbps) and forwarding rate (11.904 Mpps) for smooth, lag-free network performance.
• Supports both PoE++ and PoE+ input for flexible power options.
• Easy management via Ethernet in-band.
• Durable polycarbonate enclosure.

Specifications

• MPN: USW-ULTRA
• EAN: 0810084693698
• Ports: (8) GbE RJ45 ports (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• PoE Power Budget (PoE++ input): 42W
• PoE Power Budget (PoE+ input): 16W
• Total Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.904 Mpps
• Power Method: PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-), External Power Supply (Not Included)
• Supported Voltage Range: 44—57V DC
• Max Power Consumption (with PoE input, excluding PoE output): 9W
• Max Power Consumption (with AC adapter input, excluding PoE output): 8W
• Max PoE+ Wattage per Port by PSE: 30W
• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
• Weight (Device): 320 g (11.3 oz)
• Weight (Wall Mount): 45 g (1.6 oz)
• Enclosure Material: Polycarbonate
• Management Interface: Ethernet In-Band
• Certifications: CE, FCC, IC
• Operating Temperature (PoE++ input): -30 to 60° C (-22 to 140° F)
• Operating Humidity: 10 to 90% noncondensing
