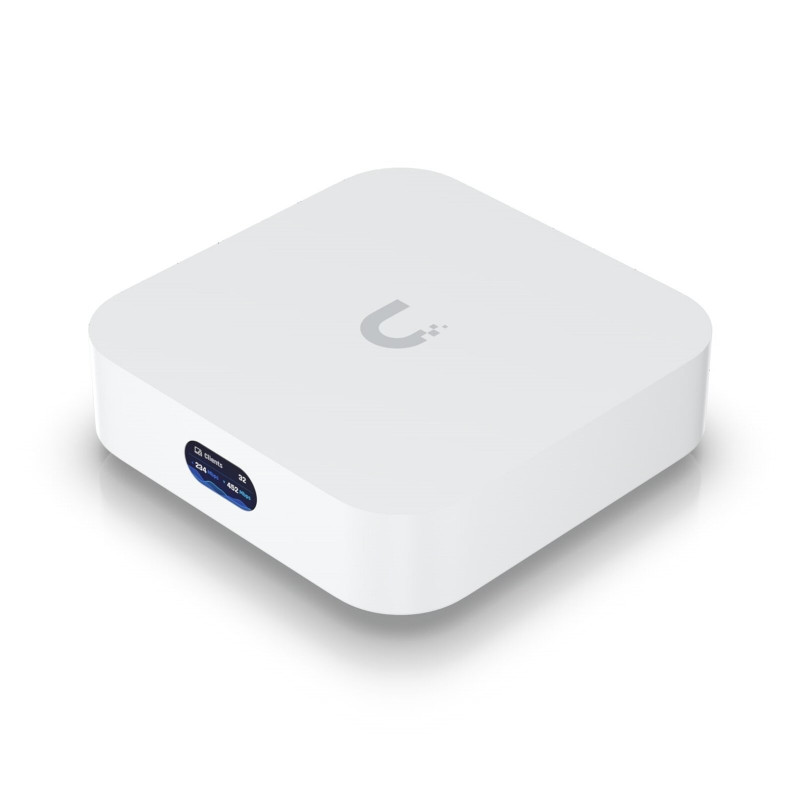

UBIQUITI UX UniFi Express Access Point

Ubiquiti UX

The Ubiquiti UX is a powerful and compact all-in-one solution ideal for tech-savvy users and professionals seeking seamless network management and high-speed Wi-Fi connectivity. This versatile device combines a UniFi Cloud Gateway with a WiFi 6 access point, offering a streamlined approach to networking for homes and small offices. Whether you're a gamer demanding low latency, a content creator needing reliable upload speeds, or a business owner requiring robust network security, the Ubiquiti UX delivers exceptional performance and ease of use.

Features

• Combined UniFi Cloud Gateway and WiFi 6 Access Point for simplified network management.
• Built-in WiFi 6 (2x2 MIMO) for fast and efficient wireless connectivity.
• Covers up to 140 m² (1,500 ft²) with support for 60+ connected WiFi devices.
• Gigabit Ethernet (GbE) RJ45 WAN and LAN ports for wired network expansion.
• 0.96" LCM status display for quick network monitoring.
• Supports advanced security protocols including WPA/WPA2/WPA3 and VLAN 802.1Q.
• Advanced QoS with per-user rate limiting and guest traffic isolation.
• Compact and stylish design with a polycarbonate enclosure.
• USB-C power delivery (5V DC/3A).

Specifications

• Dimensions: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
• Weight: 302 g (10.7 oz)
• Enclosure Material: Polycarbonate
• Networking Interfaces: (1) GbE RJ45 WAN port, (1) GbE RJ45 LAN port
• Management Interface: Ethernet, Bluetooth
• Power Method: USB Type-C (5V DC/3A)
• Max. Power Consumption: 10W
• WiFi Standards: 802.11a/b/g, WiFi 4/5/6
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• 2.4 GHz Max. WiFi TX Power: 22dBm
• 5 GHz Max. WiFi TX Power: 25dBm
• MIMO: 2.4 GHz - 2x2 (DL/UL MU-MIMO), 5 GHz - 2x2 (DL/UL MU-MIMO)
• Throughput Rate: 2.4 GHz - 573.5 Mbps, 5 GHz - 2.4 Gbps
• Antenna Gain: 2.4 GHz - 4 dBi, 5 GHz - 5.15 dBi
• Antennas: 2 x Internal 2.4G/5G dual-band, 1 x Internal 2.4G single-band BT
• LCM Display: 0.96" status display
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
• Concurrent Clients: 60+
• Zero Wait DFS: Yes
