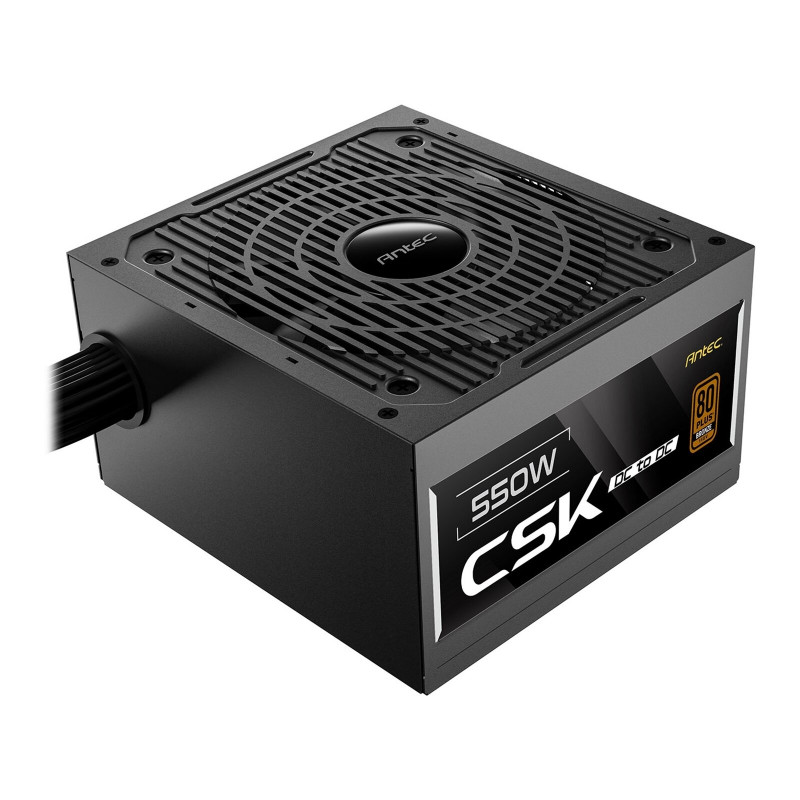

ANTEC CSK550DC 550W 80+ Bronze ATX Power Supply

ANTEC CSK550DC 550W Power Supply

The Antec CSK550DC 550W Power Supply is a reliable and efficient power solution perfect for building or upgrading your mainstream or gaming PC. This 80 Plus Bronze certified unit delivers stable power with its DC-to-DC architecture and active PFC, ensuring your components receive the consistent energy they need for optimal performance. Its quiet operation and compact design make it an ideal choice for builders prioritizing both performance and a clean, quiet system.

Features

• 550W continuous power output
• 80 PLUS Bronze certification for high efficiency (up to 88%)
• DC-to-DC architecture and Active PFC for stable power delivery
• Comprehensive CircuitShield protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO
• Quiet 120mm temperature-controlled fan
• Non-modular design with flat black cables for improved airflow and cable management
• Reinforced PCI-E 5.1 connectors for compatibility with modern GPUs
• Compact design for easy installation in various ATX cases
• 5-year manufacturer warranty
• UK Plug

Specifications

• Model: CSK550DC
• Form Factor: ATX 12V 2.52
• +12V Rail: Single Rail, 45.8A
• Input Voltage: 100–240V AC
• Input Frequency: 50–60 Hz
• Input Current: Maximum 12A
• Power Good Signal: 100–500ms
• Cooling: 120mm Temperature-Controlled Fan
• Dimensions: 140 x 150 x 86 mm
• Net Weight: 1.60 kg
• Gross Weight: 1.90 kg
• Connectors: 1x 24-pin ATX Main, 2x 8-pin (4+4) EPS, 2x 8-pin (6+2) PCIe, 6x SATA, 3x Molex
• Cable Type: Non-modular, Flat Black Cables
• Certifications: cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS
