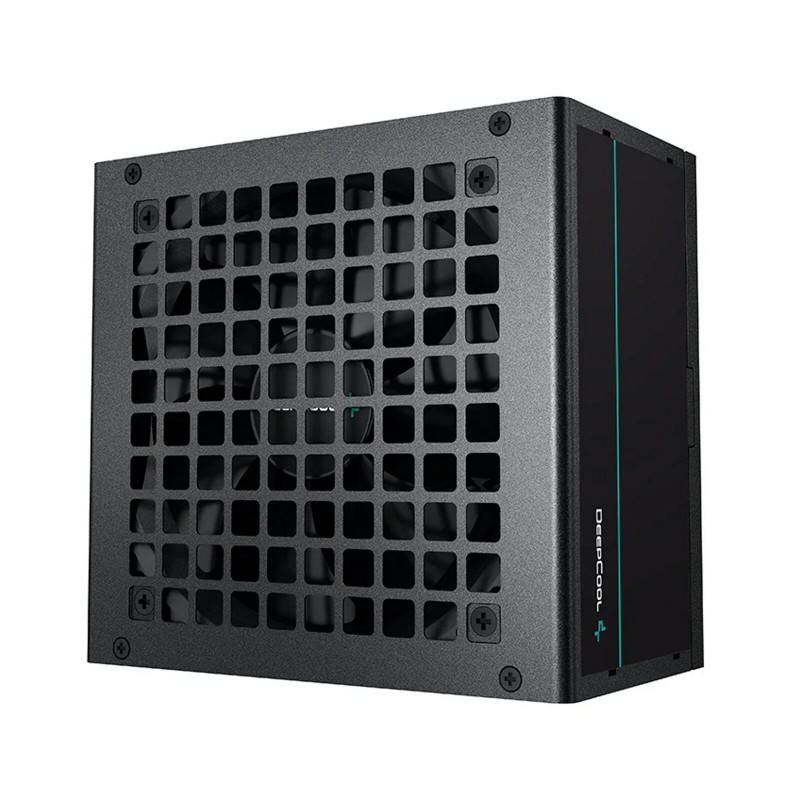

DEEPCOOL PF500 500W 80 PLUS White Non-Modular PSU

DEEPCOOL PF500 500W Power Supply Unit (R-PF500D-HA0B-UK)

The DEEPCOOL PF500 500W Power Supply Unit is a reliable and affordable solution for budget-conscious PC builders seeking stable power delivery. This non-modular PSU boasts 80 PLUS White certification, ensuring efficient operation and reduced energy waste. Ideal for gamers, home users, and those building entry-level to mid-range systems, the PF500 delivers dependable performance without breaking the bank. Its quiet operation and streamlined cable management make it a perfect fit for those prioritizing a clean and efficient build.

Features

• 500W continuous power output
• 80 PLUS White certified for energy efficiency (85% efficiency at 50% load)
• Quiet 120mm hydraulic bearing fan for extended lifespan and low noise
• Flat black cables for improved cable management and aesthetics
• Comprehensive protection circuits: Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP)
• ATX 12V V2.4 compliant
• UK plug

Specifications

• Model: DEEPCOOL PF500
• MPN: R-PF500D-HA0B-UK
• EAN: 6933412711261
• Power Output: 500W
• 80 PLUS Certification: White
• Fan Size: 120mm
• Fan Bearing Type: Hydraulic Bearing
• Topology: Active PFC + Double tube forward
• Capacitors: Taiwan bulk capacitor
• Power Good Signal: 100-500ms
• Hold Up Time: ≥16ms (75% Load)
• Efficiency: ≥85% Under Typical Load (50% Loading)
• Protection: OPP/OVP/SCP/UVP
• Operating Temperature: 0-40°C
• Certifications: CB/CCC/CE/UKCA/EAC/RCM/BIS
• Compliance: ErP(2010)
• MTBF: 100,000 Hours
• Connectors: 1 x 24-Pin (20+4) Main Power, 1 x 8-Pin (4+4) EPS 12V, 2 x 6+2 Pin PCIe, 6 x SATA, 2 x 4-Pin Peripheral
• Dimensions (W x L x H): 150 x 140 x 86mm
