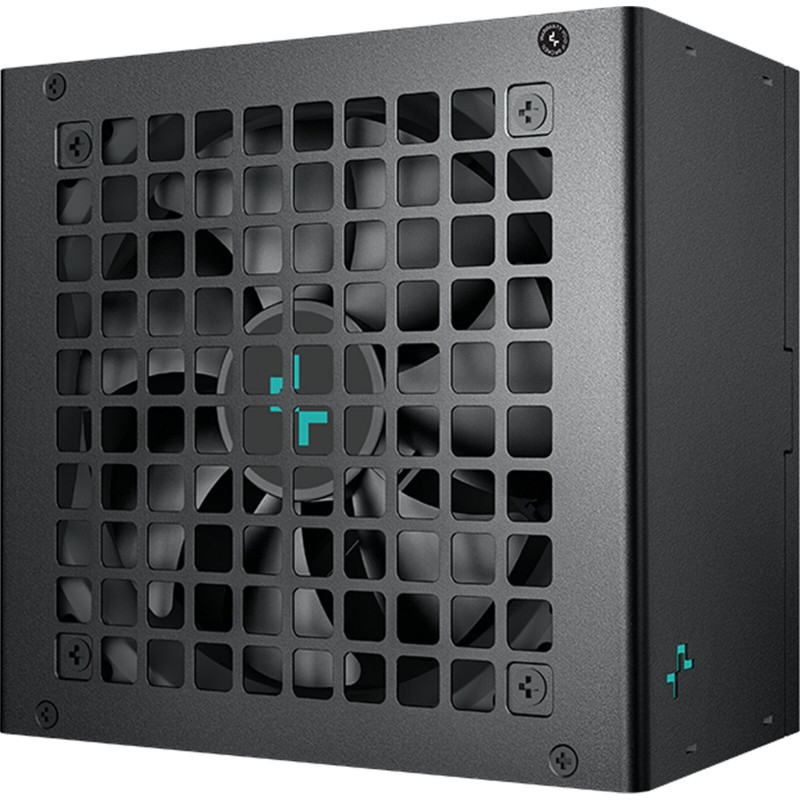

DEEPCOOL PL750D 750W 80 PLUS Bronze Non-Modular Power Supply

DEEPCOOL R-PL750D-FC0B-UK-V2 750W Power Supply

Power your next-generation PC build with the DEEPCOOL PL750D 750W power supply. This reliable and efficient non-modular PSU is perfect for gamers, content creators, and enthusiasts demanding stable power delivery for high-end components. Featuring an 80 PLUS Bronze certification and a dedicated 12VHPWR connector, the PL750D ensures compatibility with the latest PCIe 5.0 graphics cards while providing robust protection and a long lifespan.

Features

• 750W continuous power output
• 80 PLUS Bronze certified for energy efficiency
• Non-modular design for simplicity and affordability
• 120mm hydro-bearing fan for quiet and effective cooling
• Intel ATX12V V3.1 compliant
• Dedicated 16-Pin (12+4) 12VHPWR connector for PCIe 5.0 GPUs
• Comprehensive protection circuitry (OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO)
• High-quality components for enhanced durability and performance
• 5-year limited warranty for peace of mind

Specifications

• Form Factor: ATX12V V3.1
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Efficiency Certification: 80 PLUS Bronze (≥85% efficiency at 50% load)
• Fan Size: 120 mm
• Fan Bearing: Hydro Bearing
• Topology: Active PFC + DC to DC
• Capacitors: Chinese Electrolytic Capacitors
• Hold-Up Time: ≥16 ms
• Operating Temperature: 0°C to 40°C
• MTBF: 100,000 hours
• Connectors: 1 x 20+4 Pin ATX, 2 x 4+4 Pin ATX12V, 3 x 6+2 Pin PCIe, 8 x SATA, 2 x 4-Pin Molex, 1 x 16-Pin (12+4) 12VHPWR
• Regulatory Certifications: CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TUV-RH
• Environmental Compliance: WEEE, RoHS
