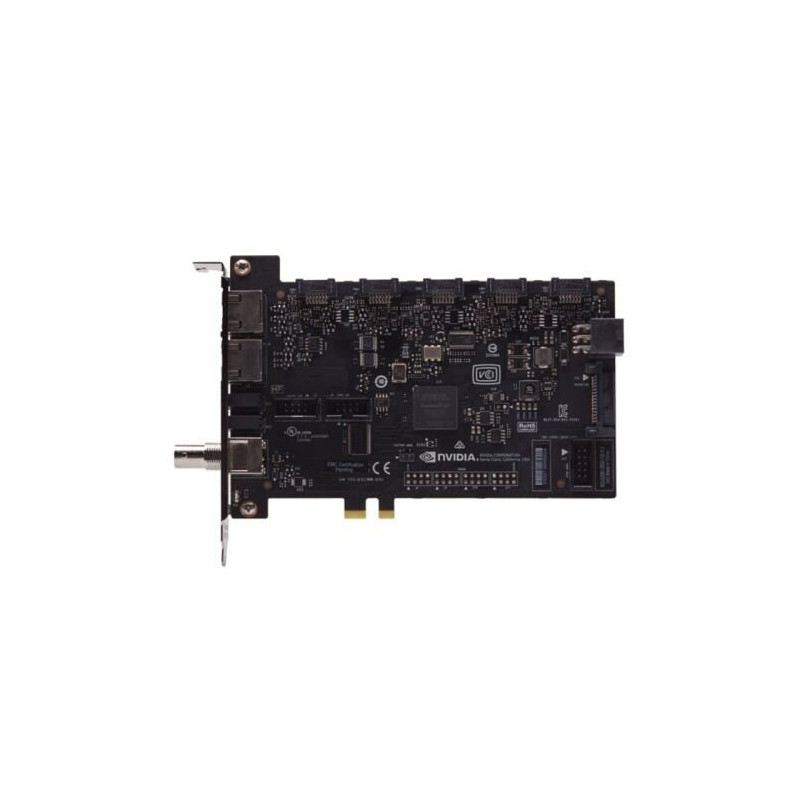

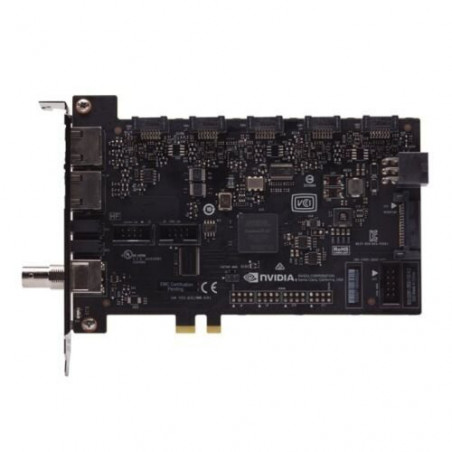

PNY Quadro Sync II PCIe Multi-GPU Synchronizer

PNY VCQPQUADROSYNC2-PB NVIDIA Quadro Sync II Board

Elevate your professional visualization workflows with the PNY VCQPQUADROSYNC2-PB NVIDIA Quadro Sync II board. Designed for demanding applications requiring precise synchronization of multiple displays, this board is the ideal solution for high-end visualization clusters, large-scale simulations, and professional content creation. This powerful PCIe card empowers seamless multi-monitor setups, eliminating artifacts and ensuring perfectly synchronized visuals across an expansive display array. Ideal for engineers, designers, and professionals working with complex visual data.

Features

• Synchronizes up to 4 Pascal GPUs per card, enabling up to 16 synchronized displays per card.
• Supports up to 32 synchronized displays per system using two Sync II cards.
• Features 2x RJ-45 Frame Lock connectors and a BNC Genlock connector for precise synchronization.
• Provides status indicator LEDs for easy monitoring.
• Enables seamless projector overlap and stereoscopic 3D support for immersive visualization.
• Supports Mosaic technology for creating a single large virtual display from multiple monitors.
• Allows synchronization of displays between systems in visualization clusters.
• Offers the ability to connect to an external timing signal for precise synchronization.
• Includes secure cabling for reliable connections.

Specifications

• Brand: PNY
• MPN: VCQPQUADROSYNC2-PB
• EAN: 3536403352240
• Interface: PCIe
• Power: PCIe or SATA Power
• Connectors: 4 sync edge connectors, 2x RJ-45 Frame Lock connectors, BNC Genlock connector
• Supported GPUs: Up to 81 Quadro GPUs (depending on configuration)
• Maximum Displays per Card: 16
• Maximum Displays per System (with two cards): 32
• Supported Features: Projector Overlap, Stereoscopic 3D Support, Mosaic Technology
