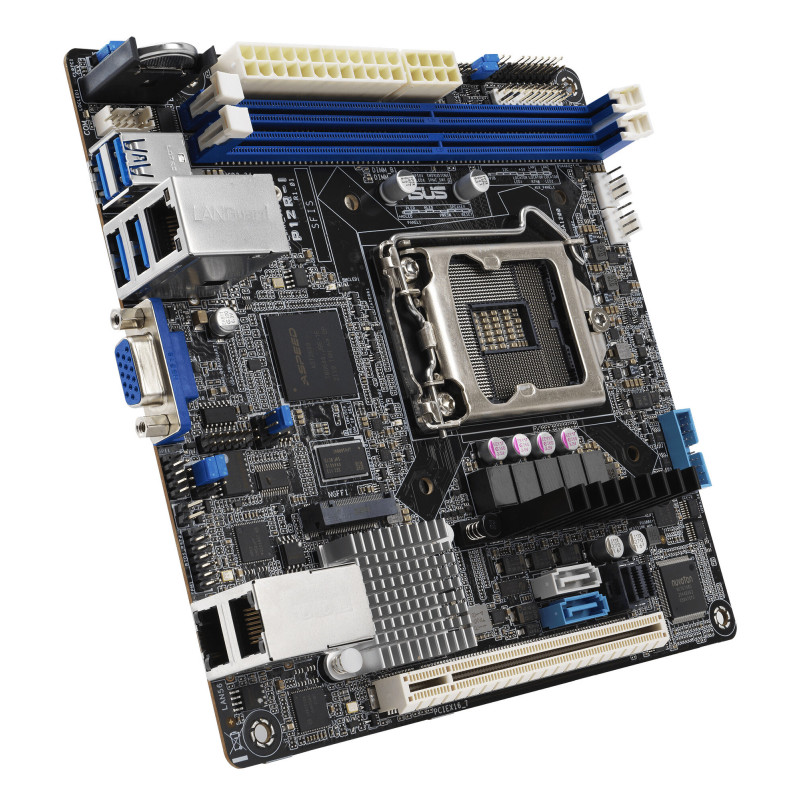

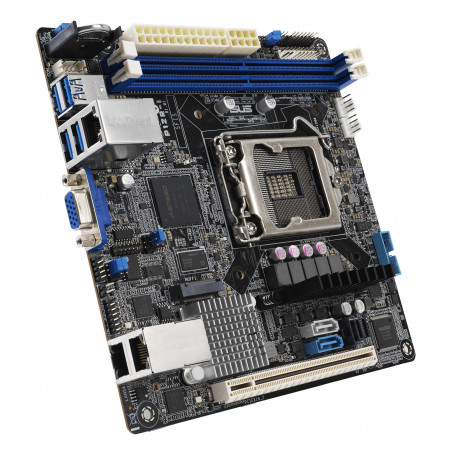

ASUS P12R-I Intel C252 Motherboard Mini ITX

ASUS P12R-I Server Motherboard (90SB0A70-M0UAY0)

The ASUS P12R-I Mini-ITX server motherboard is a powerful and compact solution ideal for businesses and professionals requiring robust performance and efficient space utilization. This motherboard, built around the Intel C252 chipset and supporting Intel Xeon E-2300 series processors, delivers exceptional processing power, enhanced connectivity, and advanced management capabilities in a space-saving form factor. Perfect for remote offices, branch offices (ROBO), and demanding applications requiring high reliability and scalability.

Features

• Intel Xeon E-2300 series processor support (LGA 1200)
• Mini-ITX form factor for maximum density
• Dual Intel I210AT Gigabit Ethernet with teaming support for high bandwidth and redundancy
• One M.2 slot (2280) supporting PCIe Gen4 x4 for high-speed OS drives
• Six SATA3 ports for ample storage capacity
• One PCIe 4.0 slot for expansion
• Four USB 3.2 Gen 1 ports
• ASUS ASMB10-iKVM with ASPEED AST2600 controller for remote out-of-band management
• Supports up to 95W TDP processors

Specifications

• Brand: ASUS
• Model: P12R-I
• MPN: 90SB0A70-M0UAY0
• EAN: 4711081507604
• Chipset: Intel C252
• Processor Socket: LGA 1200
• Processor Support: Intel Xeon E-2300 series
• Memory: 2x DDR4 DIMM slots
• Storage: 6 x SATA3, 1 x M.2 (2280) PCIe Gen4 x4
• Networking: Dual Intel I210AT Gigabit Ethernet
• Expansion Slots: 1 x PCIe 4.0
• USB: 4 x USB 3.2 Gen 1
• Management: ASUS ASMB10-iKVM (ASPEED AST2600)
• Form Factor: Mini-ITX
