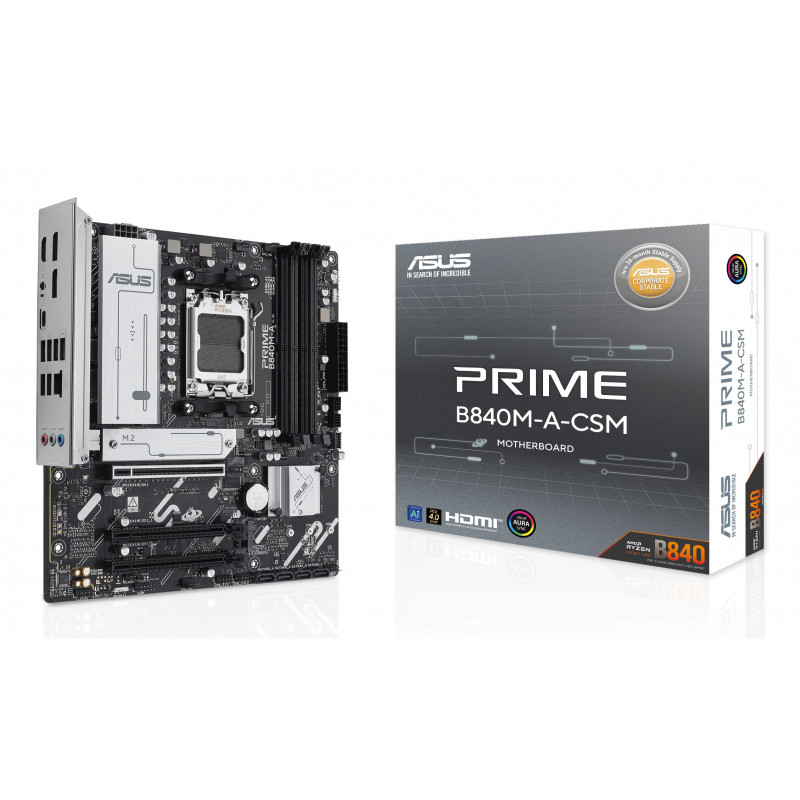

ASUS PRIME B840M-A-CSM AM5 Micro ATX Motherboard

ASUS PRIME B840M-A-CSM Motherboard

The ASUS PRIME B840M-A-CSM is a robust micro-ATX motherboard designed for demanding users and professionals who require stability and performance. Built on the AM5 platform with support for AMD Ryzen™ 9000 series processors and DDR5 memory, this motherboard is ideal for high-performance computing, content creation, and gaming. Benefit from enterprise-grade stability and management features thanks to its Corporate Stable Model (CSM) designation, making it a reliable choice for both individual builders and businesses.

Features

• AMD B840 chipset (AM5 Socket)
• Micro-ATX form factor
• DDR5 memory support
• PCIe 4.0 ready
• Three M.2 slots (up to 64Gbps)
• Realtek 2.5Gb Ethernet
• Dual DisplayPort and HDMI outputs
• Front and rear USB 5Gbps Type-C ports
• BIOS FlashBack™ for easy BIOS updates
• Aura Sync RGB lighting compatibility
• ASUS Control Center Express for IT management (CSM version)
• 8+2+1 phase power design with discrete MOSFETs for stable power delivery
• ASUS Fan Xpert 2+ for comprehensive fan control
• ASUS AI Advisor for easy exploration of motherboard features

Specifications

• Chipset: AMD B840
• Socket: AM5
• Form Factor: Micro-ATX
• Memory: DDR5
• M.2 Slots: 3 (two PCIe 4.0 x4, one PCIe 3.0 x4)
• Ethernet: Realtek 2.5Gb Ethernet
• Video Outputs: HDMI, Dual DisplayPort
• USB: Includes front and rear USB 5Gbps Type-C ports (Specific port counts vary; consult the ASUS website for full details)
• BIOS: UEFI with BIOS FlashBack™
• RGB Lighting: Aura Sync compatible
• Power Design: 8+2+1 phase with discrete MOSFETs
• Cooling: ASUS Fan Xpert 2+, multiple onboard heatsinks
• Other Features: ASUS Control Center Express (CSM version), ASUS AI Advisor, SafeSlot Core+, Q-LED Core
