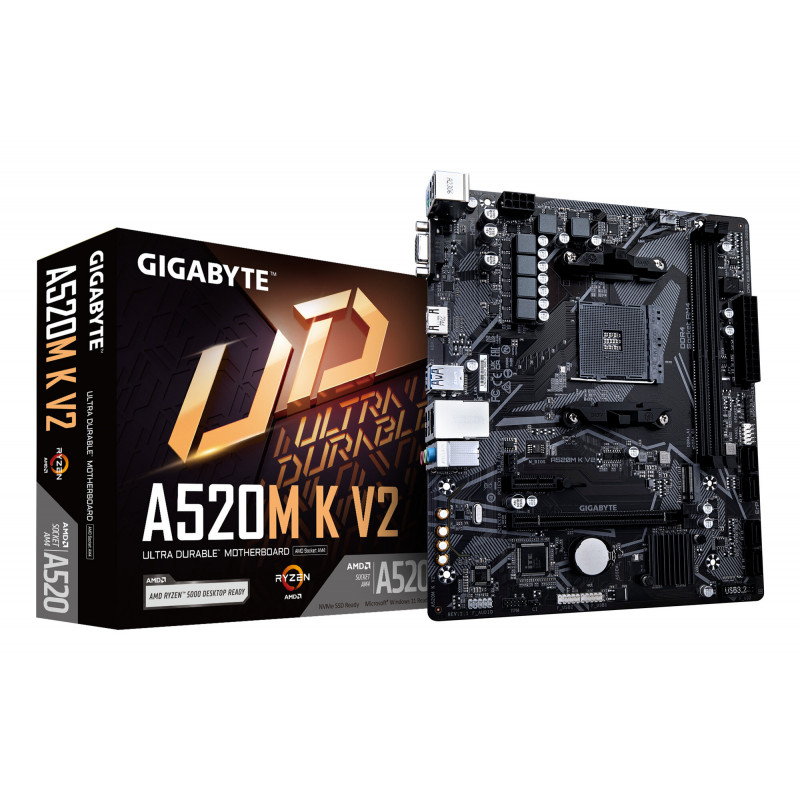

GIGABYTE A520M K V2 Micro-ATX Motherboard

GIGABYTE A520M K V2 Motherboard

The GIGABYTE A520M K V2 is a robust and reliable Micro-ATX motherboard, perfect for budget-conscious PC builders seeking a solid foundation for their AMD Ryzen system. This motherboard delivers essential features for everyday computing and light gaming, boasting impressive connectivity options and Gigabyte's renowned quality and stability. Whether you're assembling a new system or upgrading an existing one, the A520M K V2 provides a cost-effective solution without compromising on performance or reliability.

Features

• AMD AM4 Socket: Supports a wide range of AMD Ryzen processors from the 3000, 4000, and 5000 series, offering excellent compatibility and upgrade potential.
• M.2 NVMe PCIe Gen 3 x4 Support: Enables the use of high-speed NVMe SSDs for lightning-fast boot times and application loading.
• Gigabit Ethernet with Bandwidth Management: Provides a stable and efficient network connection with intelligent bandwidth management for optimal online performance.
• Smart Fan 5: Offers advanced fan control for precise temperature management and quieter operation.
• High-End Audio Capacitors and Audio Noise Guard: Delivers crisp, clear audio with minimal interference for an enhanced listening experience.
• Refreshed BIOS with Intuitive GUI: Provides a user-friendly interface for easy system configuration and BIOS updates.
• Multiple Display Outputs: Includes both D-Sub and HDMI ports, supporting resolutions up to 4096x2160@60Hz.

Specifications

• Chipset: AMD A520
• CPU Socket: AMD AM4
• Memory: 2x DDR4 DIMM slots, up to 64GB (32GB per DIMM), supporting various speeds up to DDR4 5100 (OC)
• Storage: 1x M.2 (Socket 3, M key, type 2280, PCIe 3.0 x4/x2 & SATA support), 4x SATA 6Gb/s
• Graphics: Integrated graphics with 1x D-Sub and 1x HDMI port (supports up to 4096x2160@60Hz)
• LAN: Realtek Gigabit Ethernet (1Gbps)
• Audio: Realtek High Definition Audio, 2/4/5.1/7.1-channel
• USB: 4x USB 3.2 Gen 1 (rear panel), 2x USB 3.2 Gen 1 (internal header), 6x USB 2.0/1.1 (2 rear panel, 4 internal headers)
• Expansion Slots: 1x PCIe x16 (3.0 x16), 1x PCIe x1 (3.0 x1)
• Form Factor: Micro-ATX (23.3cm x 19.8cm)
