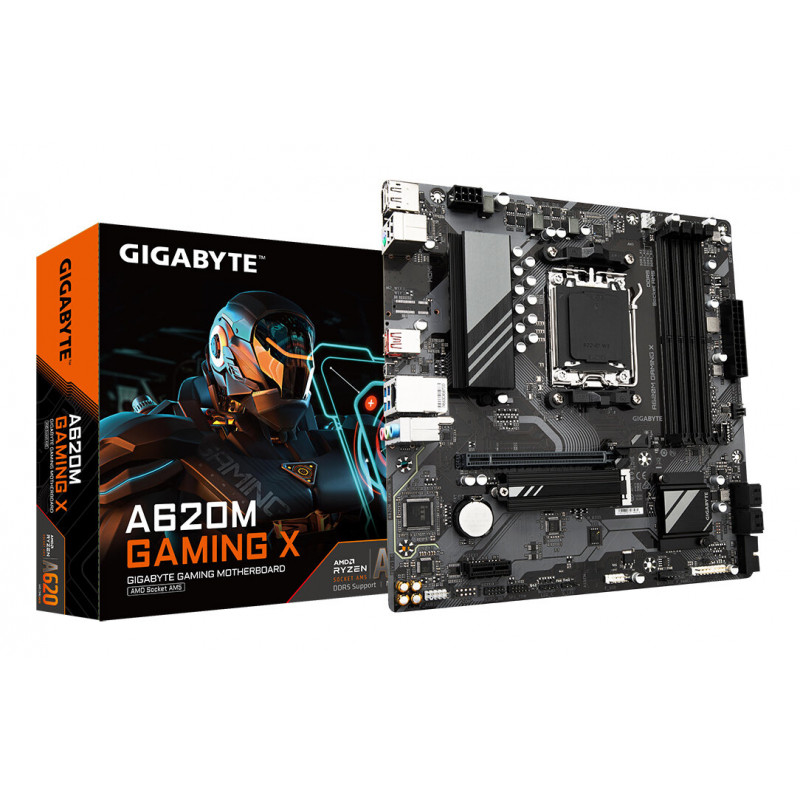

GIGABYTE A620M GAMING X AM5 Micro-ATX Motherboard

GIGABYTE A620M GAMING X Motherboard

The GIGABYTE A620M GAMING X motherboard delivers uncompromising performance and robust features for the discerning PC builder. Whether you're a gamer seeking a competitive edge, a content creator demanding stability, or a tech enthusiast appreciating cutting-edge technology, this Micro-ATX powerhouse provides the foundation for a high-performance system. Built with AMD's AM5 socket, it's ready for the latest Ryzen 7000 series processors and offers a compelling blend of speed, connectivity, and thermal management.

Features

• AMD AM5 Socket: Supports AMD Ryzen™ 7000 Series Processors for peak performance.
• DDR5 Memory Support: Up to 192GB of DDR5 RAM with speeds up to 6400MHz (OC) for blazing-fast data access and seamless multitasking.
• High-Speed Connectivity: Dual USB-C ports (one rear, one internal header) with USB 3.2 Gen 1 speeds, plus GbE LAN with bandwidth management for a smooth online experience.
• Enhanced Thermal Design: Smart Fan 6 technology with multiple fan headers and precise control ensures optimal cooling under heavy load.
• PCIe 4.0 Support: Experience twice the bandwidth of PCIe 3.0 with support for PCIe 4.0 devices.
• Advanced BIOS: Intuitive UEFI BIOS with EZ Mode for quick access to essential settings and advanced options for fine-tuning performance.
• High-Quality Audio: High-end audio capacitors and Audio Noise Guard for immersive, crystal-clear sound.
• GIGABYTE Control Center (GCC): Unified software for easy system monitoring and control.
• Q-Flash Plus: Effortlessly update the BIOS without needing a CPU, memory, or graphics card installed.

Specifications

• CPU Socket: AMD AM5
• Chipset: AMD A620
• Memory: 4x DDR5 DIMM slots, up to 192GB (48GB single DIMM capacity), Dual-channel architecture, Supports DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s, AMD EXPO™ and XMP support
• Graphics: 1x DisplayPort (3840x2160@144Hz max), 1x HDMI (4096x2160@60Hz max)
• Audio: Realtek® HD Audio, 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN (1Gbps/100Mbps)
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s (RAID 0, 1, 10)
• USB: 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 (combination of rear panel and internal headers)
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
