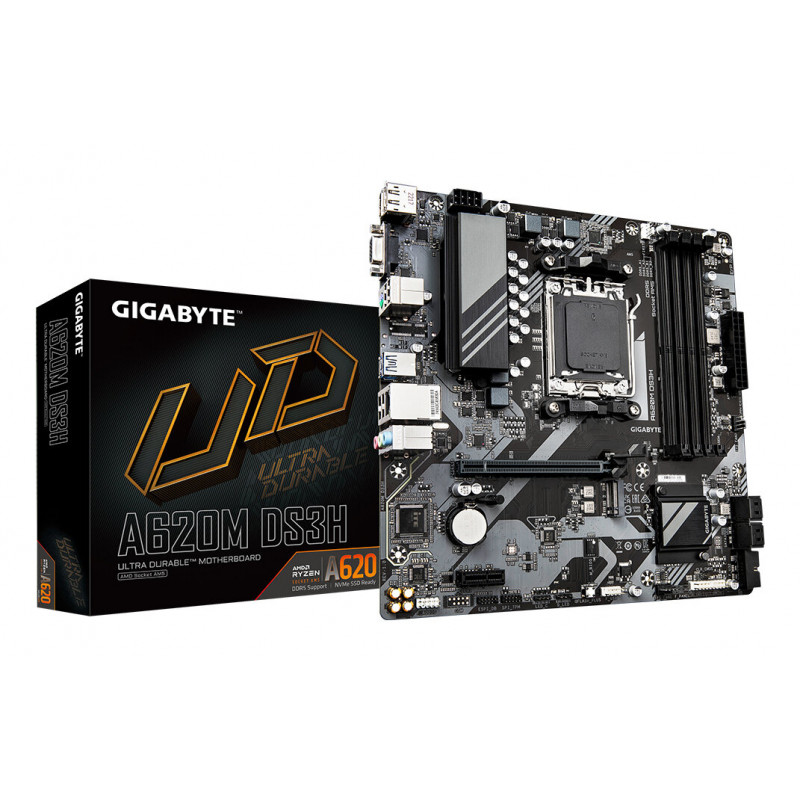

GIGABYTE A620M DS3H Micro-ATX Motherboard

GIGABYTE A620M DS3H Motherboard

The GIGABYTE A620M DS3H is a high-performance Micro-ATX motherboard designed for budget-conscious builders seeking robust features and reliable performance. Ideal for gamers, content creators, and system integrators, this motherboard delivers exceptional value without compromising on essential components. Benefit from a feature-rich platform built on the latest AMD AM5 socket technology, enabling seamless compatibility with the latest Ryzen processors and DDR5 memory.

Features

• AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 Series Processors
• 5+2+2 Phases Digital VRM: Delivers stable power delivery for demanding processors and overclocking.
• Dual Channel DDR5 Support: Four DIMM slots supporting high-speed DDR5 memory with AMD EXPO and Intel XMP profiles for enhanced performance.
• PCIe 4.0 x4 M.2 Connector: Enables blazing-fast NVMe SSD speeds for significantly improved boot times and application loading.
• EZ-Latch PCIe x16 Slot: Provides easy and secure installation and removal of graphics cards.
• GbE LAN with Bandwidth Management: Ensures smooth and responsive online experiences.
• Versatile Video Output: Features DisplayPort, HDMI, and D-Sub connectors for diverse display compatibility.
• Smart Fan 6: Intelligent cooling solution with multiple temperature sensors and hybrid fan headers for optimal thermal management and quiet operation, including Fan Stop functionality.
• Q-Flash Plus: Effortlessly update the BIOS without needing a CPU, memory, or graphics card installed.
• High-Fidelity Audio: Equipped with high-end audio capacitors and Audio Noise Guard for immersive sound.

Specifications

• CPU Socket: AMD AM5
• Chipset: AMD A620
• Memory: 4x DDR5 DIMM slots, up to 256GB (64GB per DIMM), supporting speeds up to DDR5 7600 (OC), AMD EXPO and Intel XMP support.
• Storage: 1x PCIe 4.0 x4 M.2 (M2A_CPU), 4x SATA 6Gb/s
• Expansion Slots: 1x PCIe 4.0 x16 (x16/x8/x4 depending on CPU), 1x PCIe 3.0 x1
• Rear Panel I/O: 1x PS/2, 1x USB Type-C 3.2 Gen 1, 1x USB 3.2 Gen 1, 4x USB 2.0, 1x HDMI, 1x DisplayPort, 1x D-Sub, 1x RJ-45, 3x Audio Jacks
• Internal I/O: 1x 24-pin ATX, 1x 8-pin ATX 12V, 1x CPU Fan Header, 2x System Fan Headers, 1x Addressable LED Strip Header, 1x RGB LED Strip Header, 1x M.2 Socket 3, 4x SATA 6Gb/s, 1x Front Panel Header, 1x Front Panel Audio Header, 1x USB 3.2 Gen 1 Header, 1x USB 2.0 Header, 1x TPM Header, 1x Clear CMOS Jumper
• Audio: Realtek HD Audio Codec
• LAN: Realtek GbE LAN
• BIOS: AMI UEFI, Q-Flash Plus support
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
