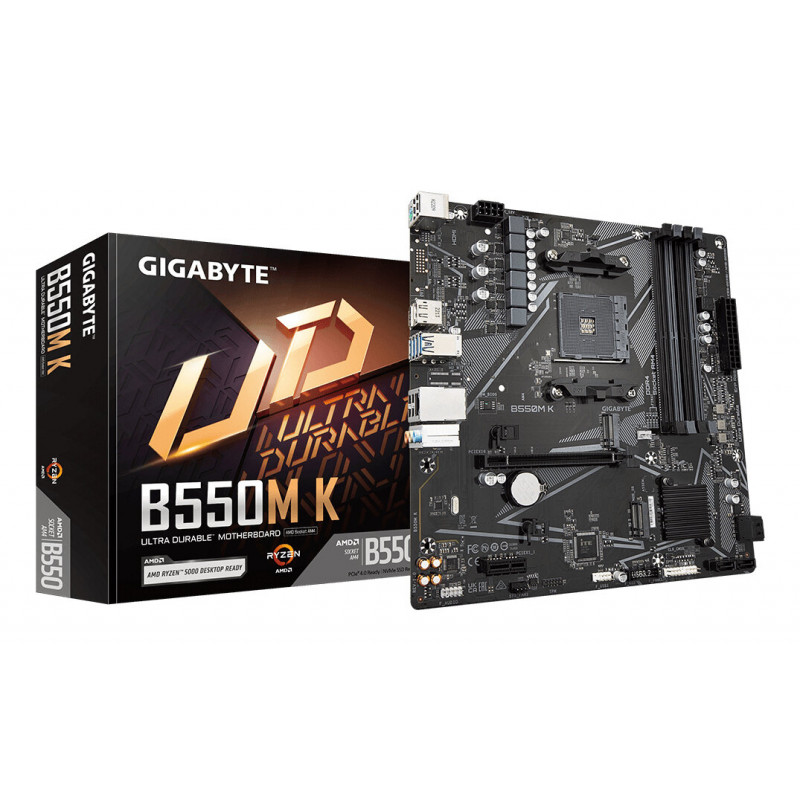

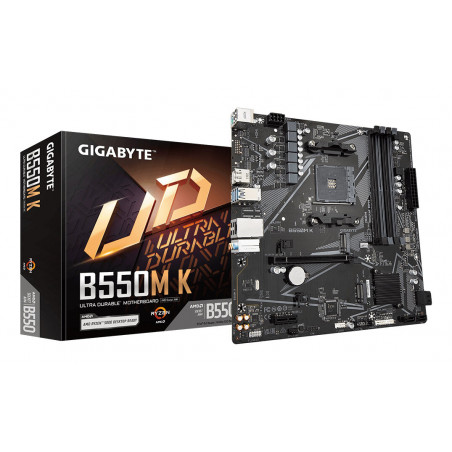

GIGABYTE B550M K Micro-ATX Motherboard

GIGABYTE B550M K Motherboard

The GIGABYTE B550M K motherboard is a powerful and versatile Micro-ATX solution ideal for tech enthusiasts and gamers building high-performance AMD Ryzen systems. This board delivers exceptional connectivity, robust power delivery, and advanced cooling features, all within a compact form factor. Whether you're crafting a gaming rig, a content creation workstation, or a compact home server, the B550M K provides the foundation for a reliable and high-performing PC.

Features

• Supports AMD Ryzen 5000, 5000G, 4000G, and 3000 series processors (including G-series APUs).
• Dual-channel DDR4 memory support with four DIMM slots, enabling up to 128GB of system memory.
• Ultra-fast NVMe PCIe 4.0/3.0 M.2 slots for blazing-fast storage speeds.
• High-quality audio capacitors and Audio Noise Guard for superior sound fidelity.
• Gigabit Ethernet LAN with bandwidth management for optimized network performance.
• DisplayPort and HDMI 2.1 outputs supporting high-resolution displays, including 4K@60Hz.
• Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers for intelligent cooling.
• Enhanced durability features including anti-sulfur resistors and robust power connectors.
• Supports RAID 0, RAID 1, and RAID 10 configurations for enhanced storage performance and redundancy.

Specifications

• Chipset: AMD B550
• Socket: AMD AM4
• Memory: 4x DDR4 DIMM slots, up to 128GB (32GB single DIMM capacity), supporting various speeds up to DDR4 4733(O.C.)
• M.2 Slots: 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x2)
• Graphics Output: 1x DisplayPort, 1x HDMI 2.1
• LAN: Realtek GbE LAN
• Audio: Realtek HD Audio Codec
• USB: 4x USB 3.2 Gen 1 (rear), 2x USB 3.2 Gen 1 (internal header), 6x USB 2.0/1.1 (4x rear, 2x internal header)
• SATA: 4x SATA 6Gb/s
• Expansion Slots: 1x PCIe 4.0/3.0 x16, 1x PCIe 3.0 x1
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Other Features: Smart Fan 5, Audio Noise Guard, Anti-Sulfur Resistors, Q-Flash, Support for APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer
