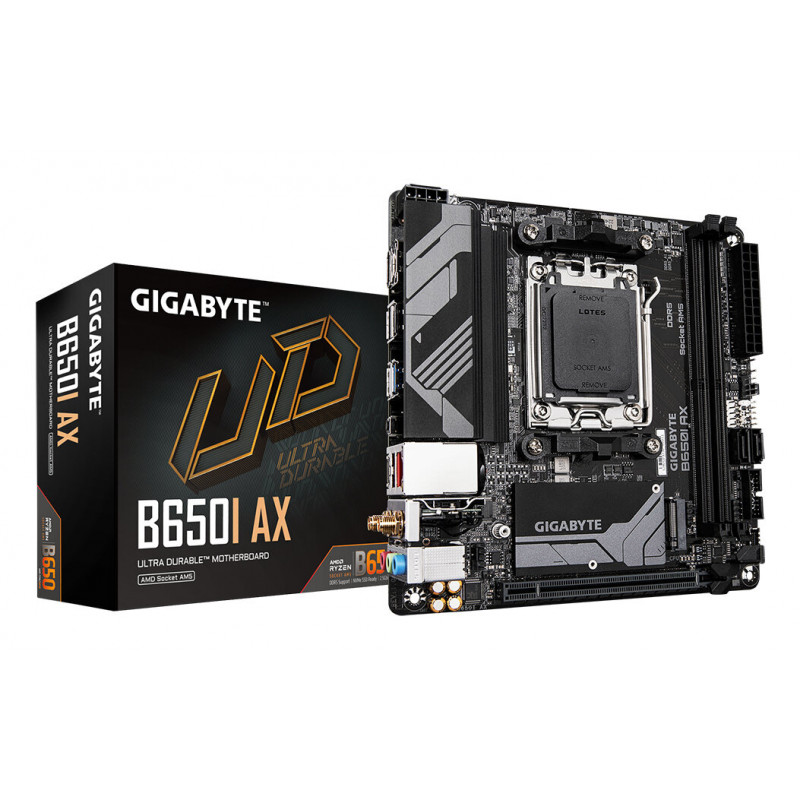

GIGABYTE B650I AX Mini-ITX Motherboard

GIGABYTE B650I AX Motherboard

The GIGABYTE B650I AX is a high-performance Mini-ITX motherboard designed for discerning PC enthusiasts and builders seeking a compact yet powerful platform. This board delivers exceptional connectivity, robust power delivery, and cutting-edge features, making it ideal for gamers, content creators, and anyone demanding top-tier performance in a small form factor. Benefit from future-proof technology and seamless integration with the latest AMD Ryzen 7000 and 8000 series processors.

Features

• AMD AM5 Socket: Supports AMD Ryzen 7000 and 8000 Series Processors
• High-Performance Power Delivery: 5+2+1 Phases Digital VRM Solution with DrMOS for stable overclocking.
• Dual-Channel DDR5 Support: Two DDR5 DIMM slots supporting speeds up to 6400+ MT/s (OC) with AMD EXPO and Intel XMP profiles.
• Blazing-Fast Storage: PCIe 4.0 x4 M.2 connector for NVMe SSDs.
• Next-Gen Connectivity: Wi-Fi 6E 802.11ax for gigabit wireless speeds and 2.5GbE LAN for ultra-fast wired networking.
• Versatile Display Output: DisplayPort and HDMI ports for multiple display configurations.
• Advanced Cooling: Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers for optimal thermal management.
• Easy BIOS Updates: Q-Flash Plus allows for BIOS updates without CPU, memory, or graphics card installation.
• Convenient Design: EZ-Latch for easy PCIe x16 slot access.

Specifications

• Chipset: AMD B650
• CPU Socket: AMD AM5
• Memory: 2x DDR5 DIMM slots, up to 96GB (48GB per DIMM), support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
• Storage: 1x PCIe 4.0 x4 M.2 (Socket 3, M key, type 2280), 2x SATA 6Gb/s
• Expansion Slots: 1x PCIe 4.0 x16
• Networking: Realtek 2.5GbE LAN, Realtek Wi-Fi 6E RTL8852CE (802.11ax), Bluetooth 5.3
• Audio: Realtek High Definition Audio CODEC
• Rear Panel I/O: 1x DisplayPort, 1x HDMI, 1x USB Type-C (USB 3.2 Gen 1), 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1, 3x USB 2.0/1.1, 1x RJ-45, 2x SMA antenna connectors, 3x audio jacks
• Internal I/O: 1x 24-pin ATX, 1x 8-pin ATX 12V, 1x CPU fan header, 2x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 1x M.2 connector, 2x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x speaker header, 1x USB Type-C header (USB 3.2 Gen 1), 1x USB 3.2 Gen 1 header, 1x USB 2.0/1.1 header
• Form Factor: Mini-ITX (17.0cm x 17.0cm)
