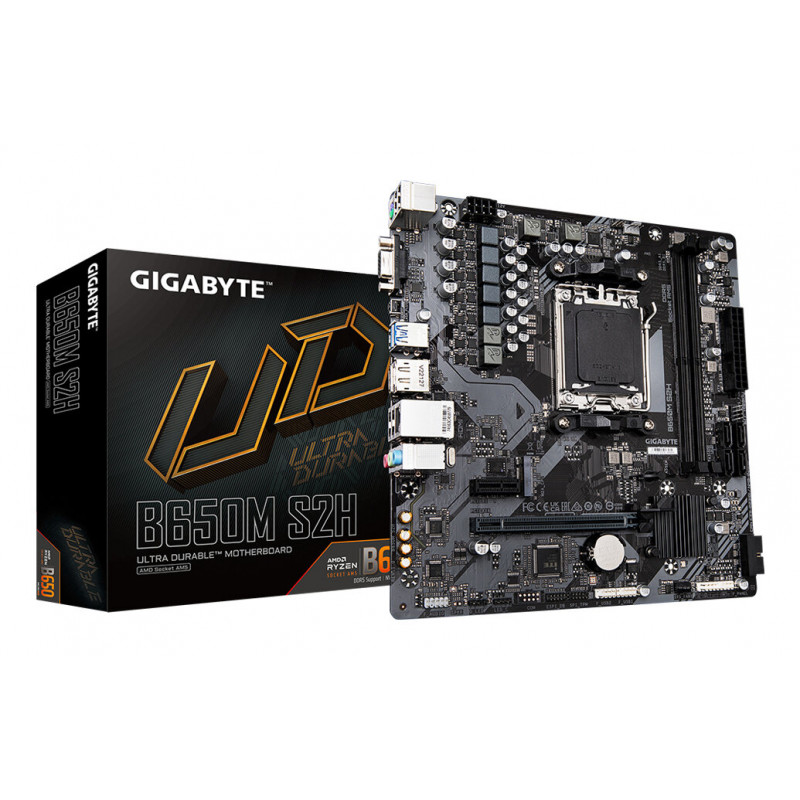

GIGABYTE B650M S2H Micro-ATX Motherboard

GIGABYTE B650M S2H Motherboard

The GIGABYTE B650M S2H is a Micro-ATX motherboard designed for discerning PC builders seeking a powerful and feature-rich platform for their next-generation AMD Ryzen system. Whether you're a gamer demanding high frame rates, a content creator needing robust performance, or a professional prioritizing stability and reliability, this motherboard delivers. Benefit from its efficient power delivery, future-proof connectivity, and user-friendly design, all packed into a compact form factor.

Features

• AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 series processors.
• Robust Power Delivery: 5+2+2 Phases Digital VRM for stable overclocking and high performance.
• Dual-Channel DDR5 Support: Two DDR5 DIMM slots with support for AMD EXPO and Intel XMP profiles, enabling high-speed memory configurations.
• High-Speed Storage: PCIe 4.0 x4 M.2 connector for blazing-fast NVMe SSDs.
• Convenient EZ-Latch: Easy-to-use PCIe x16 slot release mechanism.
• Gigabit Ethernet: Realtek GbE LAN with bandwidth management for optimal network performance.
• Versatile Display Output: D-Sub, DisplayPort, and HDMI ports for diverse display connectivity.
• Advanced Cooling: Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers for precise cooling control, including FAN STOP functionality.
• Easy BIOS Updates: Q-Flash Plus allows for BIOS updates without CPU, memory, or graphics card installation.
• High-Fidelity Audio: High-end audio capacitors and Audio Noise Guard for superior sound quality.

Specifications

• Chipset: AMD B650
• CPU Socket: AMD AM5
• Memory: 2x DDR5 DIMM slots, up to 128GB (64GB per DIMM), support for DDR5 speeds up to 7200MHz (OC) and AMD EXPO/Intel XMP profiles.
• Storage: 1x PCIe 4.0 x4 M.2 (M2A_CPU), 4x SATA 6Gb/s connectors, RAID 0, 1, and 10 support for NVMe and SATA devices.
• Expansion Slots: 1x PCIe 4.0 x16 (x16/x8/x4 depending on CPU), 1x PCIe 3.0 x1
• Networking: Realtek GbE LAN (1Gbps)
• Audio: Realtek High Definition Audio Codec (2/4/5.1/7.1-channel)
• Rear Panel I/O: 4x USB 2.0/1.1, 2x USB 3.2 Gen 1, 1x PS/2, 1x D-Sub, 1x DisplayPort, 1x HDMI, 1x RJ-45, 3x Audio Jacks
• Internal I/O: 1x 24-pin ATX, 1x 8-pin ATX 12V, 1x CPU fan header, 2x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 1x M.2 Socket 3, 4x SATA 6Gb/s, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x TPM header
• Form Factor: Micro-ATX (23.0cm x 22.5cm)
• BIOS: AMI UEFI BIOS, 256 Mbit flash, Q-Flash Plus support
