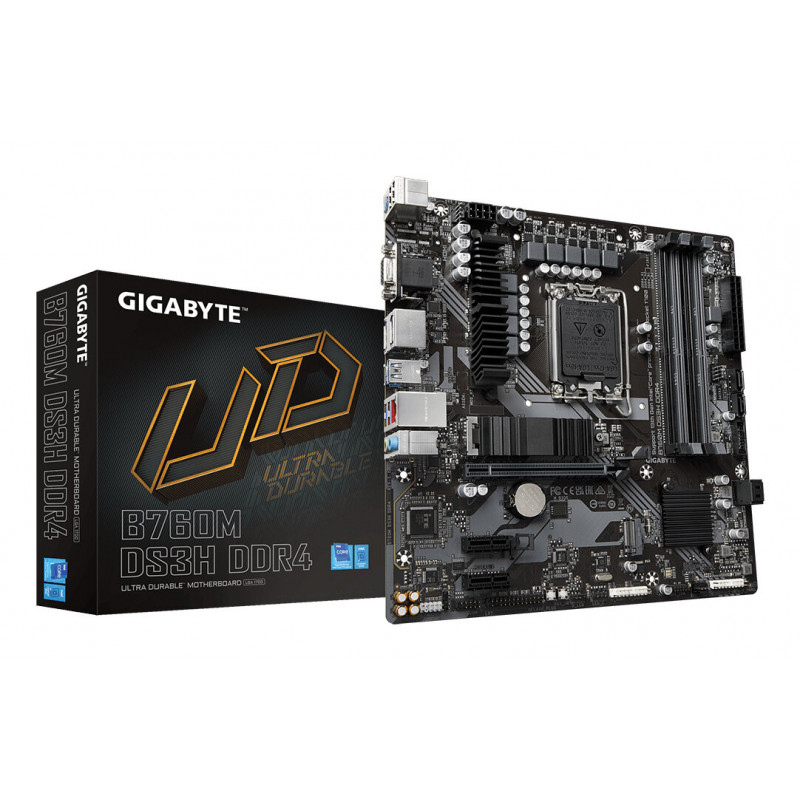

GIGABYTE B760M DS3H DDR4 Micro-ATX Motherboard

GIGABYTE B760M DS3H DDR4 Motherboard

The GIGABYTE B760M DS3H DDR4 motherboard is a powerful and versatile Micro-ATX solution ideal for building a high-performance PC. Designed for tech-savvy users and enthusiasts, this motherboard delivers exceptional value with its robust feature set, including advanced cooling solutions, high-speed connectivity, and easy BIOS updates. Whether you're a gamer seeking smooth frame rates or a content creator demanding reliable performance, the B760M DS3H DDR4 provides a solid foundation for your next build.

Features

• Robust Power Delivery: A 6+2+1 phase hybrid digital VRM design with premium components ensures stable power delivery for demanding CPUs, minimizing power fluctuations and maximizing performance.
• Superior Cooling: GIGABYTE's Ultra-Efficient M.2 Thermal Guard prevents throttling of high-speed NVMe drives, while Smart Fan 6 technology provides intelligent fan control for optimal cooling and quiet operation.
• High-Speed Connectivity: Enjoy blazing-fast data transfers with support for 2.5GbE LAN, multiple M.2 slots supporting PCIe 4.0, and numerous USB ports including a USB-C 3.2 Gen 2 port.
• Versatile Display Output: Connect up to four displays simultaneously via D-Sub, HDMI, and dual DisplayPort outputs.
• Easy BIOS Updates: Q-Flash Plus allows for convenient BIOS updates without needing a CPU, memory, or graphics card installed.
• Customizable Lighting: Personalize your build with customizable RGB lighting effects.
• Support for 12th and 13th Gen Intel CPUs: Compatible with the latest Intel Core processors for optimal performance.

Specifications

• Chipset: Intel B760 Express
• Socket: LGA 1700 (Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron Processors)
• Memory: 4x DDR4 DIMM slots, supporting up to 128GB (32GB per DIMM), Dual-channel architecture, speeds up to DDR4 5333(O.C.) MT/s, XMP support
• Storage: 2x M.2 slots (1x PCIe 4.0 x4/x2, 1x PCIe 4.0 x4/x2), 4x SATA 6Gb/s ports, RAID 0, 1, 5, 10 support
• Expansion Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
• USB: 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 1, 2x USB 2.0
• LAN: Realtek 2.5GbE LAN
• Audio: Realtek High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
• Video Output: 1x D-Sub, 1x HDMI, 2x DisplayPort
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
