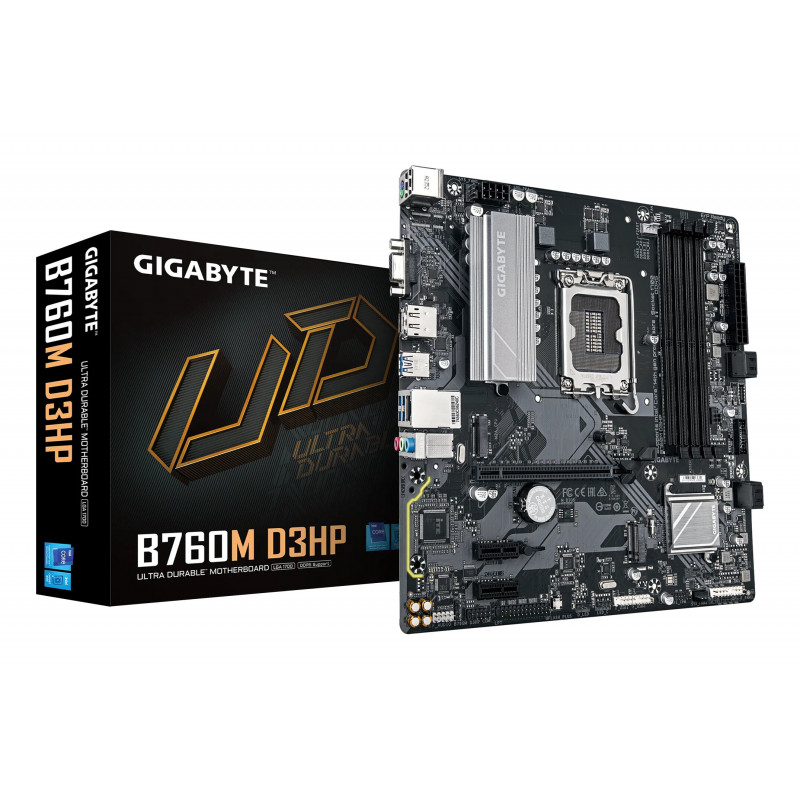

GIGABYTE B760M D3HP Micro-ATX Motherboard

GIGABYTE B760M D3HP Motherboard

The GIGABYTE B760M D3HP Micro-ATX motherboard delivers robust performance and extensive connectivity for discerning PC builders. Ideal for gamers, content creators, and enthusiasts building high-performance systems, this motherboard offers a compelling blend of cutting-edge features and future-proof technology within a compact form factor. Benefit from exceptional stability, advanced cooling solutions, and seamless compatibility with the latest Intel processors.

Features

• Supports 14th, 13th, and 12th Generation Intel Core Processors (LGA 1700 socket)
• Hybrid 4+1+1 Phases Digital VRM for unparalleled power delivery and stability
• Dual-channel DDR5 support with four DIMM slots, enabling up to 256GB of memory and overclocking capabilities beyond 7600 MT/s
• Two PCIe 4.0 x4 M.2 slots for lightning-fast NVMe SSD storage
• Gigabit Ethernet LAN with bandwidth management for optimized online performance
• Extensive connectivity options including USB-C 5Gb/s, DisplayPort, HDMI, and D-Sub
• Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers for intelligent cooling
• Q-Flash Plus for easy BIOS updates without CPU, memory, or graphics card installation
• High-fidelity audio with dedicated audio capacitors and Audio Noise Guard
• Easy-to-use EZ-Latch for convenient PCIe slot access
• Supports Intel HD Graphics with triple-display output

Specifications

• Chipset: Intel B760 Express
• CPU Socket: LGA 1700
• Memory: 4x DDR5 DIMM slots, up to 256GB (64GB single DIMM capacity), Dual-channel architecture, XMP support
• Storage: 2x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s, RAID 0, 1, 5, 10 support
• Expansion Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
• USB: 1x USB-C 3.2 Gen 1, 3x USB 3.2 Gen 1 (rear), 2x USB 3.2 Gen 1 (internal header), 2x USB 2.0/1.1 (rear), 4x USB 2.0/1.1 (internal headers)
• LAN: Realtek GbE LAN (1Gbps)
• Audio: Realtek High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
• Video Outputs: 1x D-Sub, 1x HDMI, 1x DisplayPort
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• BIOS: AMI UEFI, Q-Flash Plus support
