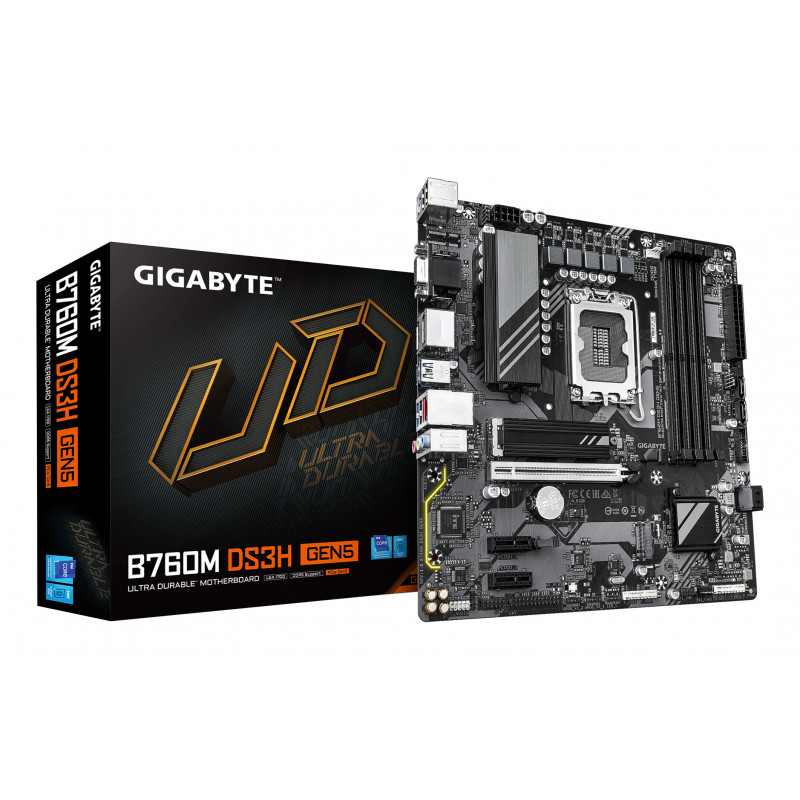

GIGABYTE B760M DS3H GEN5 Micro ATX Motherboard

GIGABYTE B760M DS3H GEN5 Motherboard

The GIGABYTE B760M DS3H GEN5 Micro-ATX motherboard delivers exceptional performance and future-proof connectivity for discerning PC builders. Whether you're a gamer seeking high frame rates, a content creator demanding fast storage, or a professional needing reliable stability, this motherboard provides a robust foundation for your next build. Its PCIe 5.0 support, advanced VRM, and extensive connectivity options ensure you're equipped for today's demands and tomorrow's upgrades.

Features

• PCIe 5.0 Support: Experience blazing-fast data transfer speeds with the latest PCIe 5.0 x16 slot, perfect for high-end graphics cards and NVMe SSDs.
• Robust VRM: A Hybrid 6+2+1 Phases VRM Solution ensures stable power delivery even under heavy loads, maximizing CPU performance and overclocking potential.
• Dual Channel DDR5: Support for high-speed DDR5 memory (up to 7600 MT/s OC) provides the bandwidth needed for demanding applications and gaming.
• Next-Gen Storage: Two M.2 slots with PCIe 4.0 x4 support offer ample space for ultra-fast NVMe SSDs.
• Enhanced Connectivity: Features a 2.5GbE LAN port for faster networking, along with USB 3.2 Gen 2 Type-C (10Gbps), DisplayPort, HDMI, and D-Sub video outputs.
• Smart Fan 6: Intelligent fan control keeps your system cool and quiet, with multiple temperature sensors and hybrid fan headers.
• Q-Flash Plus: Easily update your BIOS without needing a CPU, memory, or graphics card installed.
• Durable Design: GIGABYTE's Ultra Durable™ technology ensures long-lasting reliability and stability.
• EZ-Latch Design: User-friendly design for easy installation of components.

Specifications

• Socket: LGA 1700 (Intel 14th, 13th, and 12th Gen Core Processors)
• Chipset: Intel B760 Express
• Memory: 4x DDR5 DIMM slots, up to 256GB (64GB per DIMM), Dual Channel, XMP support
• Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 3.0 x1
• Storage: 2x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s
• LAN: Realtek 2.5GbE
• USB: 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 1, 2x USB 2.0
• Video Outputs: 1x D-Sub, 1x HDMI, 1x DisplayPort
• Audio: Realtek High Definition Audio
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
