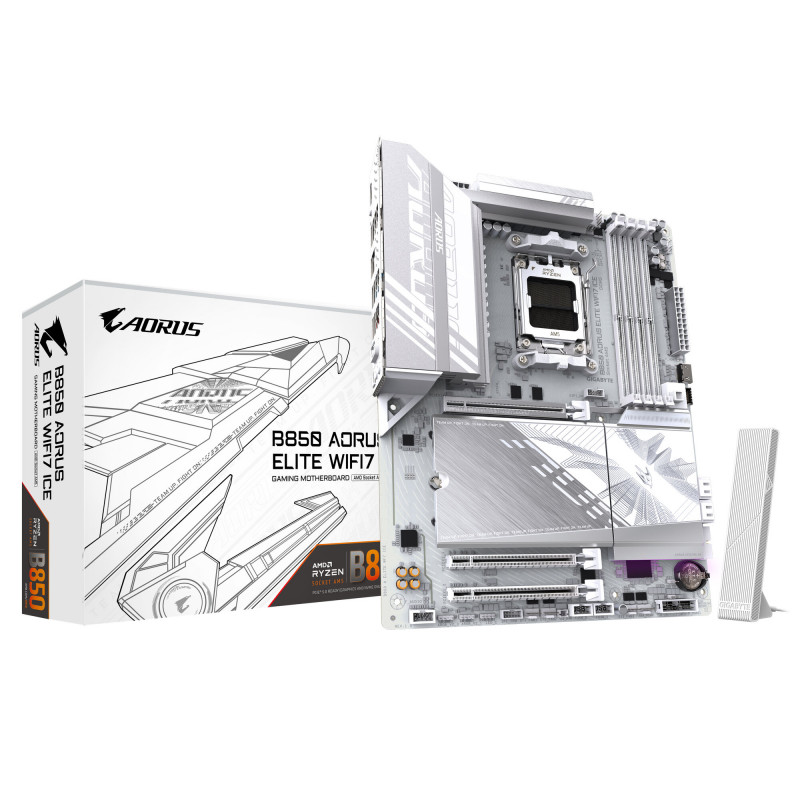

GIGABYTE B850 AORUS ELITE WIFI7 ICE AM5 Motherboard

GIGABYTE B850 AORUS ELITE WIFI7 ICE

Unleash the full potential of your AMD Ryzen™ 7000, 8000, and 9000 series processor with the GIGABYTE B850 AORUS ELITE WIFI7 ICE motherboard. This ATX powerhouse is engineered for demanding users, from serious gamers pushing frame rates to the limit to content creators needing lightning-fast storage and bandwidth. Experience cutting-edge connectivity with Wi-Fi 7 and 2.5GbE LAN, coupled with robust power delivery and advanced cooling solutions to ensure rock-solid stability and peak performance under heavy load.

Features

• Next-Gen Connectivity: Blazing-fast Wi-Fi 7 and 2.5GbE LAN for unparalleled online experiences.
• Unrivaled Performance: Supports AMD Ryzen™ 7000, 8000, and 9000 series processors and DDR5 memory with overclocking capabilities up to 8200 MT/s.
• Robust Power Delivery: A digital twin 14+2+2 phases VRM solution ensures stable power delivery even under extreme overclocking.
• High-Speed Storage: Three M.2 slots, including one PCIe 5.0 x4 slot, provide ample space for ultra-fast NVMe SSDs.
• Advanced Cooling: VRM Thermal Armor Advanced and extended M.2 Thermal Guard keep your components running cool and stable.
• User-Friendly Design: Features EZ-Latch Plus for easy installation and a user-friendly BIOS with multiple themes and AIO fan control.
• Enhanced Aesthetics: A sleek design with integrated I/O shield for a clean and professional build.

Specifications

• CPU Socket: AMD AM5, supporting AMD Ryzen™ 9000, 8000, and 7000 series processors.
• Chipset: AMD B850
• Memory: 4x DDR5 DIMM slots, supporting up to 256GB (64GB per DIMM), dual-channel architecture, AMD EXPO™ and XMP support, speeds up to 8200 MT/s (OC).
• Onboard Graphics: Integrated AMD Radeon™ Graphics with 1x DisplayPort (up to 3840x2160@144Hz) and 1x HDMI (up to 1920x1080@30Hz).
• Audio: Realtek® High Definition Audio CODEC, 2/4/5.1/7.1-channel support, S/PDIF Out.
• LAN: Realtek® 2.5GbE LAN
• Wireless: Realtek® Wi-Fi 7 RTL8922AE (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4
• Expansion Slots: 1x PCIe 5.0 x16 (x16/x8/x4 depending on CPU), 2x PCIe 3.0 x1
• Storage: 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4/x2 depending on CPU), 4x SATA 6Gb/s, RAID 0, 1, 5 (Ryzen 9000 series only), 10 support.
• USB: Multiple USB ports including USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, and USB 3.2 Gen 1 ports.
• Form Factor: ATX (30.5cm x 24.4cm)
