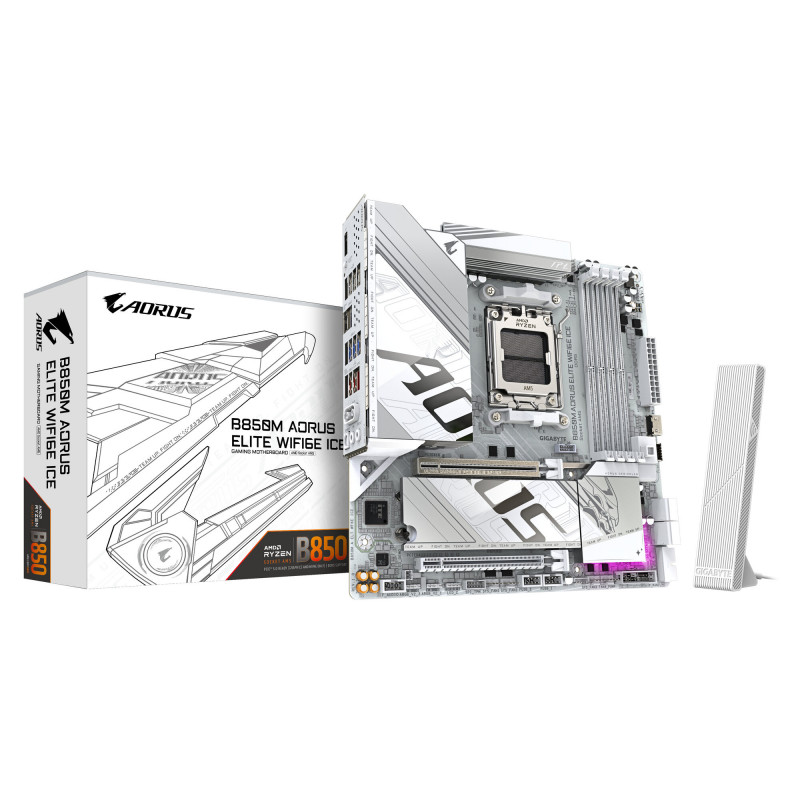

GIGABYTE B850M AORUS ELITE WIFI6E ICE AM5 Motherboard

GIGABYTE B850M AORUS ELITE WIFI6E ICE

Unleash the full potential of your next-generation AMD Ryzen processor with the GIGABYTE B850M AORUS ELITE WIFI6E ICE Micro-ATX motherboard. Designed for discerning PC enthusiasts and gamers demanding top-tier performance and cutting-edge connectivity, this motherboard delivers exceptional speed, robust features, and advanced thermal solutions. Whether you're building a high-performance gaming rig or a powerful content creation workstation, the B850M AORUS ELITE WIFI6E ICE provides the solid foundation you need.

Features

• AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 Series Processors
• High-Performance VRM: Digital twin 12+2+2 phases VRM solution for stable overclocking and power delivery.
• Blazing-Fast Memory: Quad-channel DDR5 support with speeds up to 8200MT/s (OC) and AMD EXPO/XMP profile support.
• Next-Gen Storage: Dual M.2 slots, including one PCIe 5.0 x4 slot for ultra-fast NVMe SSDs.
• Advanced Connectivity: 2.5GbE LAN, Wi-Fi 6E with directional antennas, and multiple USB ports including USB-C 3.2 Gen 2.
• Superior Cooling: VRM Thermal Armor and M.2 Thermal Guard for optimal component temperatures.
• Enhanced User Experience: Intuitive BIOS with multi-theme support, AIO fan control, and Q-Flash Auto Scan.
• Easy Installation: EZ-Latch Plus for PCIe and M.2 slots, and EZ-Latch Click for M.2 heatsinks.
• High-Resolution Display Output: DisplayPort and HDMI ports for versatile display connectivity.

Specifications

• Chipset: AMD B850
• CPU Socket: AMD AM5
• Memory: 4x DDR5 DIMM slots, up to 256GB (64GB per DIMM), Dual-channel architecture, Support for AMD EXPO and XMP
• Storage: 2x M.2 slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4), 4x SATA 6Gb/s
• Networking: Realtek 2.5GbE LAN, Realtek Wi-Fi 6E RTL8852CE, Bluetooth 5.3
• Expansion Slots: 1x PCIe 5.0 x16 (for graphics card), 1x PCIe 3.0 x4
• Rear Panel I/O: 1x DisplayPort, 1x HDMI, 1x USB Type-C 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-A, 5x USB 3.2 Gen 1, 4x USB 2.0, 1x RJ-45, 2x Antenna Connectors, Audio Jacks, Optical S/PDIF Out
• Audio: Realtek High Definition Audio Codec
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• BIOS: AMI UEFI BIOS, Q-Flash Plus support
