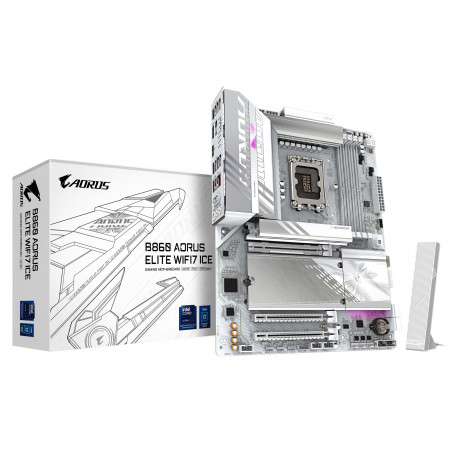

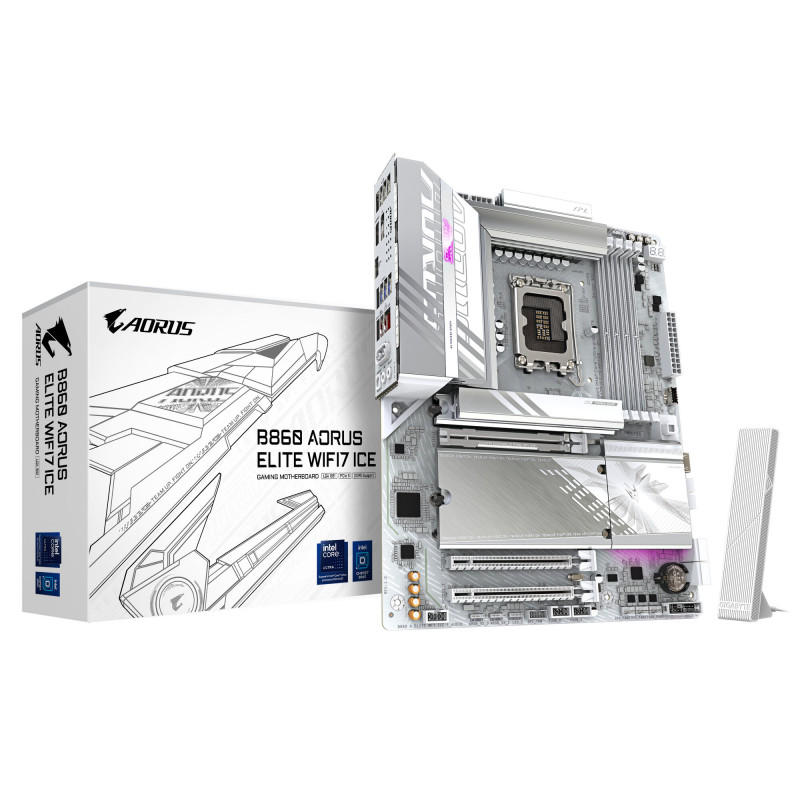

GIGABYTE B860 AORUS ELITE WIFI 7 ICE ATX Motherboard

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard

Unleash the full potential of your next-generation Intel Core Ultra processor with the GIGABYTE B860 AORUS ELITE WIFI7 ICE motherboard. Designed for demanding users, including gamers, content creators, and professionals, this ATX motherboard delivers exceptional performance, robust connectivity, and advanced cooling solutions. Experience lightning-fast speeds with Wi-Fi 7 and 2.5GbE LAN, while enjoying seamless multitasking thanks to its high-bandwidth memory support and multiple high-speed storage options. The AORUS ELITE WIFI7 ICE is the perfect foundation for a high-performance PC build.

Features

• Supports Intel Core Ultra Processors (Series 2) with a robust 14+1+2 digital twin phases VRM solution.
• Blazing-fast connectivity with Wi-Fi 7 and 2.5GbE LAN for minimal latency and maximum throughput.
• Ultra-fast storage with three M.2 slots, including one PCIe 5.0 x4 slot, for incredibly fast boot times and application loading.
• Dual-channel DDR5 memory support with up to 256GB capacity and XMP profiles for optimized performance.
• Advanced thermal design including VRM Thermal Armor and extended M.2 Thermal Guard for stable operation under heavy load.
• Extensive connectivity options including USB4 with DisplayPort Alt Mode, HDMI, and DisplayPort outputs.
• User-friendly BIOS with multi-theme support, AIO fan control, and Q-Flash Auto Scan for easy configuration and updates.
• Convenient features like EZ-Latch Plus for easy PCIe and M.2 installation and WIFI EZ-Plug for quick antenna setup.

Specifications

• CPU Socket: LGA1851 (Intel Core Ultra Processors - check GIGABYTE's website for the latest CPU support list)
• Chipset: Intel B860 Express
• Memory: 4x DDR5 DIMM slots, up to 256GB (64GB single DIMM capacity), Dual-channel architecture, Support for XMP profiles, various DDR5 speeds (refer to GIGABYTE's website for the complete list).
• Integrated Graphics: Intel HD Graphics with support for 1x USB4 Type-C (USB4 & DisplayPort), 1x DisplayPort, 2x HDMI (versions may vary depending on CPU), supporting up to quad-display.
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, S/PDIF Out.
• LAN: Realtek 2.5GbE LAN
• Wireless: Realtek or MediaTek Wi-Fi 7 (check specific model for exact chip), Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be, 2.4/5/6GHz bands (Wi-Fi 7 6GHz band availability depends on regional regulations).
• Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x1
• Storage: 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s, RAID 0, 1, 5, 10 support.
• USB: 1x USB4 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1 (rear panel and internal headers)
• Form Factor: ATX (30.5cm x 24.4cm)
