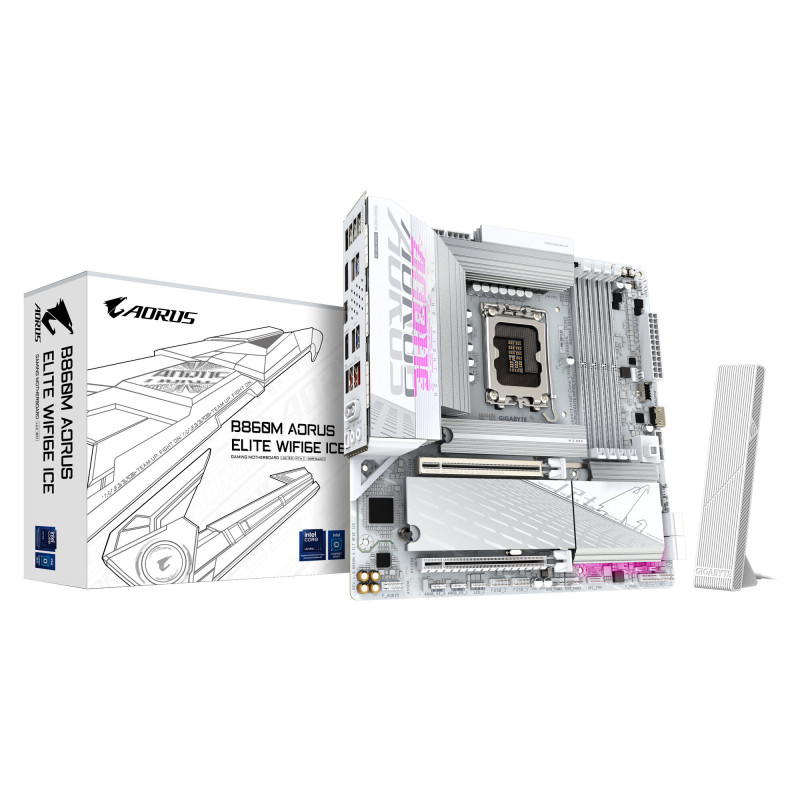

GIGABYTE B860M AORUS ELITE WIFI 6E ICE Micro-ATX Motherboard

GIGABYTE B860M AORUS ELITE WIFI6E ICE Motherboard

Unleash the full potential of your next-generation Intel Core Ultra processor with the GIGABYTE B860M AORUS ELITE WIFI6E ICE Micro-ATX motherboard. Designed for discerning PC enthusiasts and demanding workloads, this motherboard delivers exceptional performance, robust connectivity, and advanced thermal management. Whether you're a gamer seeking the ultimate competitive edge, a content creator demanding seamless workflows, or a professional requiring reliable stability, the B860M AORUS ELITE WIFI6E ICE is engineered to exceed expectations.

Features

• Supports Intel Core Ultra Processors (Series 2) via LGA1851 socket
• High-performance 12+1+2 digital twin phase VRM for stable overclocking
• Dual-channel DDR5 support with four DIMM slots, up to 256GB capacity and XMP profile support
• Three M.2 slots, including one PCIe 5.0 x4 slot for blazing-fast storage
• Advanced thermal design with VRM Thermal Armor and extended M.2 Thermal Guard
• High-speed networking with 2.5GbE LAN and Wi-Fi 6E for low-latency connectivity
• Extensive connectivity options including USB4 Type-C with DisplayPort Alternate Mode, HDMI, and DisplayPort
• Convenient features like EZ-Latch Plus for easy installation of PCIe and M.2 components
• Intuitive BIOS with multi-theme support, AIO fan control, and Q-Flash Auto Scan

Specifications

• Chipset: Intel B860 Express
• CPU Socket: LGA1851
• Memory: Four DDR5 DIMM slots, supporting up to 256GB (64GB per DIMM), speeds up to DDR5 9200 (OC) and XMP profiles. Supports both ECC and non-ECC Un-buffered DIMMs (ECC operates in non-ECC mode).
• Storage: Three M.2 slots (one PCIe 5.0 x4, two PCIe 4.0 x4/x2), four SATA 6Gb/s connectors. RAID 0, 1, 5, and 10 supported.
• Networking: Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211 (or Realtek Wi-Fi 6E RTL8852CE, depending on PCB revision) with Bluetooth 5.3
• Video Outputs: 1x USB4 Type-C (DP Alt Mode), 1x DisplayPort, 2x HDMI (one front panel)
• USB: 1x USB4 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1 (rear panel), additional internal USB headers
• Audio: Realtek High Definition Audio CODEC, S/PDIF Out
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4)
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Other Features: Sensor Panel Link, AI Perfdrive, Q-Flash Plus, GIGABYTE Control Center support.
