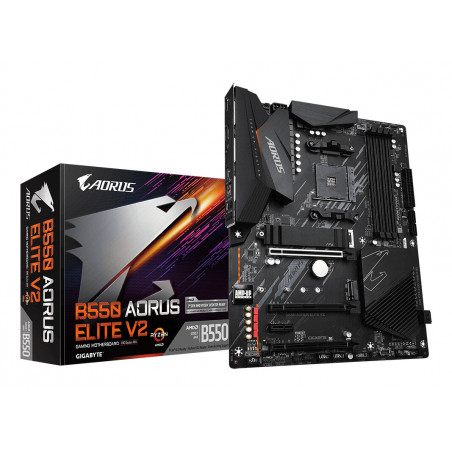

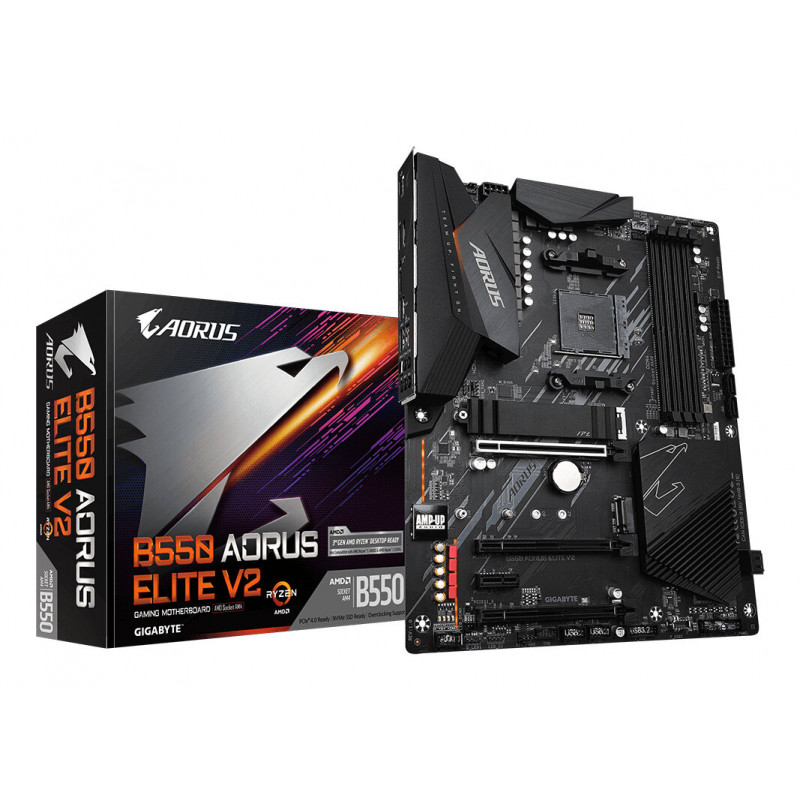

GIGABYTE B550 AORUS ELITE V2 AM4 Motherboard

GIGABYTE B550 AORUS ELITE V2 Motherboard

Unleash the full potential of your AMD Ryzen processor with the GIGABYTE B550 AORUS ELITE V2 motherboard. Designed for discerning PC enthusiasts, gamers, and content creators demanding high performance and robust features, this ATX motherboard delivers exceptional speed, stability, and expandability. Benefit from cutting-edge connectivity, advanced thermal solutions, and customizable RGB lighting to build a truly powerful and visually stunning system.

Features

• Supports AMD Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics Processors
• 12+2 Phases Digital Twin Power Design with 50A DrMOS for superior power delivery and stability
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 slots with one thermal guard for blazing-fast storage speeds
• Advanced thermal design with enlarged heatsinks to keep your system cool under pressure
• Blazing-fast 2.5GbE LAN for high-speed networking
• Multiple display output options including DisplayPort and HDMI
• RGB Fusion 2.0 for customizable lighting effects
• Smart Fan 5 for intelligent cooling control
• Q-Flash Plus for easy BIOS updates without CPU, memory, or graphics card installation
• Pre-installed I/O shield for quick and easy installation

Specifications

• Chipset: AMD B550
• Socket: AMD AM4
• Memory: 4x DDR4 DIMM slots, supporting up to 128GB (32GB single DIMM capacity), Dual-channel, ECC/Non-ECC Unbuffered, XMP support. Specific memory speed support varies depending on CPU generation.
• Storage: 2x M.2 slots (1x PCIe 4.0 x4, 1x PCIe 3.0 x4), 4x SATA 6Gb/s ports, RAID 0, 1, 10 support
• Expansion Slots: 1x PCIe 4.0/3.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
• Networking: Realtek 2.5GbE LAN
• Audio: Realtek ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
• USB: Rear Panel: 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 2x USB 2.0; Internal Headers: 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0
• Video Outputs: 1x DisplayPort, 1x HDMI
• Form Factor: ATX (30.5cm x 24.4cm)
