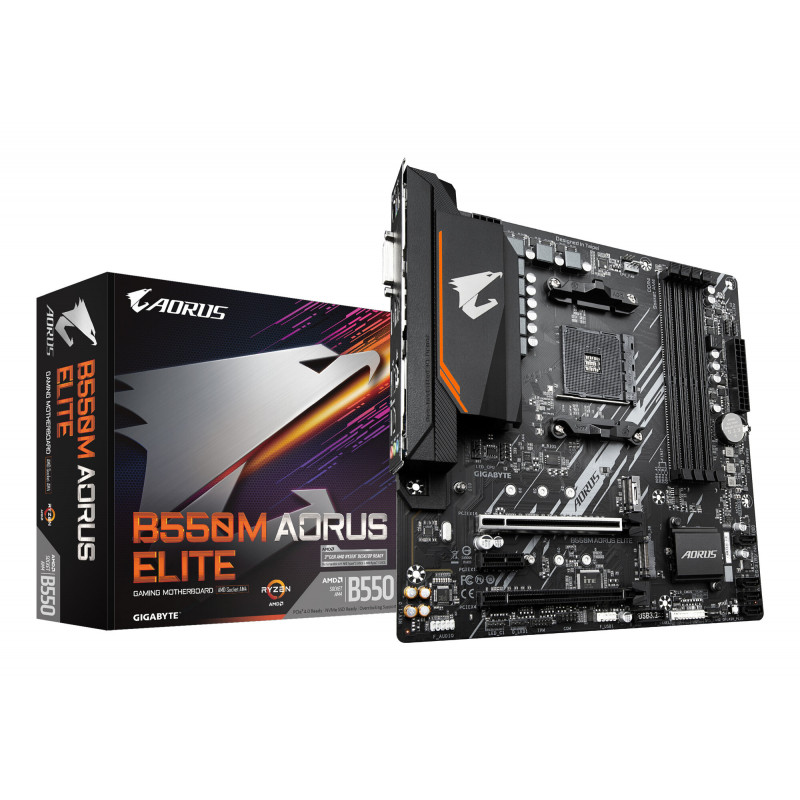

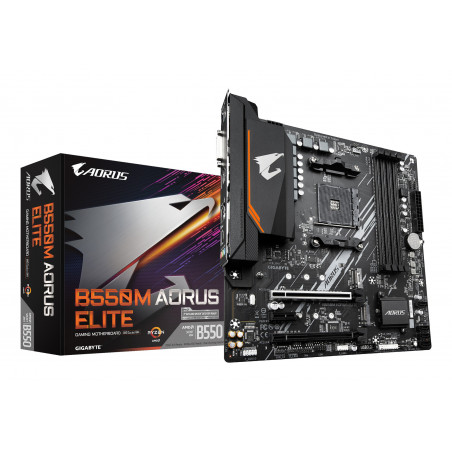

GIGABYTE B550M AORUS ELITE AM4 Micro-ATX Motherboard

GIGABYTE B550M AORUS ELITE Motherboard

Elevate your AMD Ryzen system with the GIGABYTE B550M AORUS ELITE Micro-ATX motherboard. Designed for discerning PC builders and enthusiasts, this motherboard delivers exceptional performance, robust features, and future-proof connectivity. Whether you're a gamer seeking high frame rates, a content creator demanding reliable stability, or a professional needing a powerful workstation, the B550M AORUS ELITE provides the foundation for a high-performance build.

Features

• AMD B550 Chipset: Unlocks the full potential of 3rd and 5th Gen AMD Ryzen processors with PCIe 4.0 support.
• 5+3 Phases Pure Digital VRM: Delivers precise and stable power delivery for demanding CPUs, ensuring optimal performance and system stability.
• Dual M.2 PCIe 4.0/3.0 Connectors: Experience blazing-fast NVMe SSD speeds for ultimate storage performance. Supports RAID configurations for increased data redundancy.
• GIGABYTE 8118 Gaming LAN: Enjoy lag-free online gaming with this high-performance Gigabit Ethernet controller featuring automatic bandwidth allocation.
• Enhanced Audio: High-quality audio capacitors and Audio Noise Guard technology deliver superior sound quality for an immersive audio experience.
• RGB Fusion 2.0: Customize your PC's aesthetics with support for addressable and standard RGB LED strips.
• Smart Fan 5: Maintain optimal system temperatures with intelligent fan control and multiple temperature sensors.
• Q-Flash Plus: Update your BIOS easily without needing a CPU, memory, or graphics card installed.
• HDMI 2.1 & DVI-D Outputs: Connect to a wide range of displays, supporting resolutions up to 4K@60Hz with HDR and HDCP 2.3 support (HDMI).
• Pre-installed I/O Shield: Simplifies the build process for a faster and easier assembly.

Specifications

• CPU Socket: AMD AM4
• Chipset: AMD B550
• Memory: 4x DDR4 DIMM slots, up to 128GB (32GB per DIMM), support for ECC/Non-ECC Unbuffered DDR4
• M.2 Slots: 2x (1x PCIe 4.0 x4/x2, 1x PCIe 3.0 x2)
• SATA Ports: 4x SATA 6Gb/s
• LAN: Realtek 8118 Gigabit Ethernet
• Audio: Realtek HD Audio Codec
• Rear Panel I/O: 1x PS/2, 1x DVI-D, 1x HDMI, 4x USB 3.2 Gen 1, 4x USB 2.0, 1x RJ-45, 3x Audio Jacks
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Supported CPUs: AMD Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics
