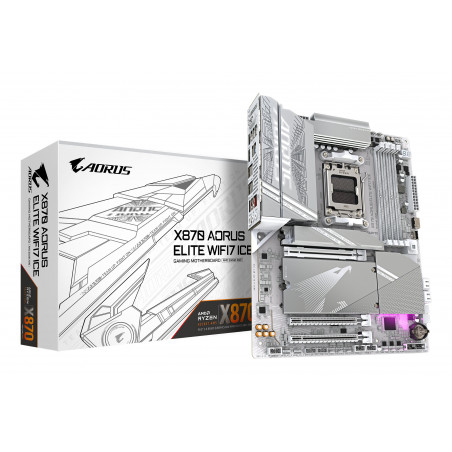

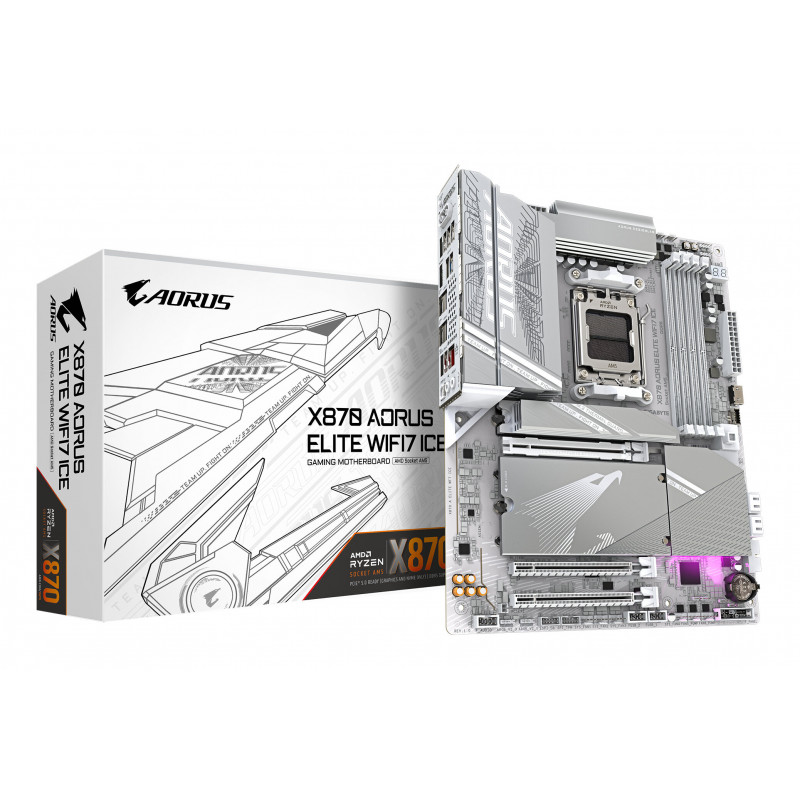

GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 Motherboard

GIGABYTE X870 A ELITE WIFI7 ICE

Unleash the full potential of your AMD Ryzen 7000, 8000, and 9000 series processor with the GIGABYTE X870 AORUS ELITE WIFI7 ICE motherboard. This high-performance ATX motherboard is engineered for demanding users—gamers, content creators, and enthusiasts—who require cutting-edge connectivity, exceptional thermal management, and robust overclocking capabilities. Experience blazing-fast speeds with PCIe 5.0 support, next-gen Wi-Fi 7, and a comprehensive feature set designed for seamless system building and ultimate performance.

Features

• AMD Socket AM5: Supports AMD Ryzen 9000, 8000, and 7000 Series Processors
• Advanced Digital Twin 16+2+2 Phases VRM Solution: Delivers stable power for demanding workloads and overclocking.
• Dual Channel DDR5 Support: Up to 256GB capacity with AMD EXPO and XMP support for optimal memory performance.
• Ultra-Fast Storage: Four M.2 slots, including three PCIe 5.0 x4 slots, for lightning-fast NVMe SSDs.
• Next-Gen Connectivity: 2.5GbE LAN and Wi-Fi 7 with directional antennas for unparalleled network speeds.
• Dual USB4 Type-C Ports with DisplayPort Alternate Mode: Future-proof connectivity with high-bandwidth data transfer and display capabilities.
• Comprehensive Thermal Design: VRM Thermal Armor and M.2 Thermal Guard for optimal cooling and stability.
• Intuitive BIOS and Software: User-friendly interface with multi-theme options, AIO fan control, and Q-Flash Auto Scan.
• EZ-Latch Design: Simplified installation for PCIe and M.2 slots.
• High-Quality Audio: Realtek ALC1220 HD Audio with audiophile-grade capacitors.

Specifications

• CPU Socket: AMD Socket AM5
• Chipset: AMD X870
• Memory: 4x DDR5 DIMM slots, up to 256GB, supporting various speeds up to DDR5 8000 (OC)
• Storage: 4x M.2 slots (3x PCIe 5.0 x4, 1x PCIe 4.0 x4), 4x SATA 6Gb/s
• Networking: Realtek 2.5GbE LAN, MediaTek or Realtek Wi-Fi 7 (depending on PCB revision), Bluetooth 5.4
• USB: 2x USB4 Type-C (USB4 & DisplayPort Alt Mode), 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
• Video Outputs: 2x HDMI, 2x USB4 Type-C (DisplayPort Alt Mode)
• Audio: Realtek ALC1220 HD Audio
• Expansion Slots: 1x PCIe 5.0 x16 (up to x8 depending on M.2 usage), 1x PCIe 4.0 x4, 1x PCIe 3.0 x2
• Form Factor: ATX
