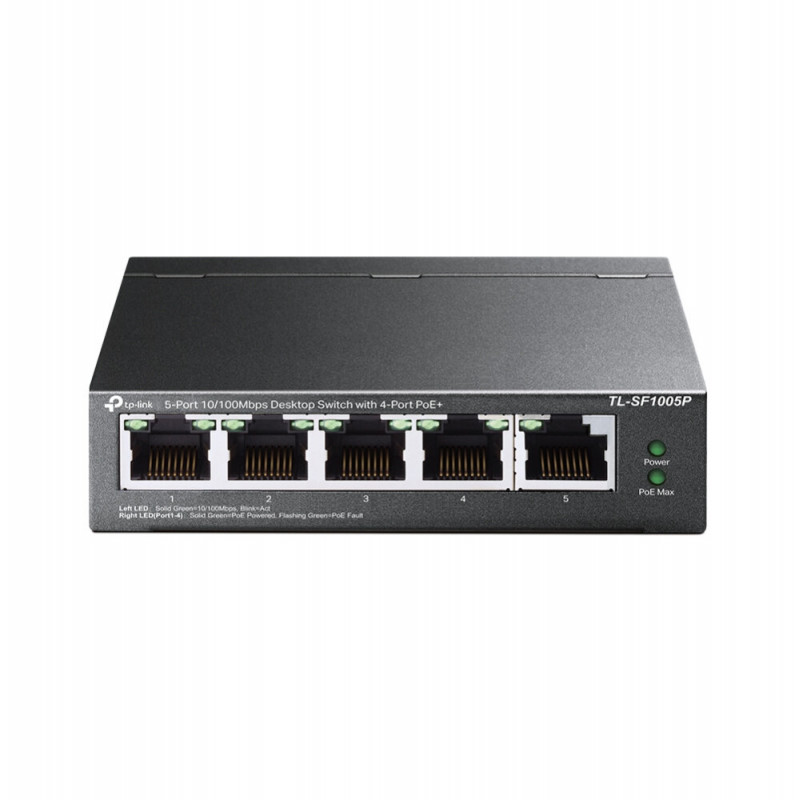

TP-LINK TL-SF1005P 5-Port 10/100Mbps PoE Desktop Switch

TP-LINK TL-SF1005P 5-Port 10/100Mbps Switch

Expand your network with the TP-LINK TL-SF1005P, a robust and versatile 5-port 10/100Mbps unmanaged switch perfect for home offices, small businesses, or any environment requiring reliable PoE connectivity. This plug-and-play device seamlessly integrates into existing networks, offering effortless setup and powerful PoE capabilities for devices like IP cameras, access points, and IP phones. Its compact design and durable metal casing ensure long-lasting performance and reliability for the tech-savvy user.

Features

• Five 10/100Mbps RJ45 ports for flexible network connectivity.
• Four integrated PoE (Power over Ethernet) ports, delivering both data and power over a single cable.
• Supports IEEE 802.3af compliant Powered Devices (PDs) for seamless integration with various PoE devices.
• Individual PoE port power up to 15.4W, with a total PoE power budget of 41W.
• Intelligent overload protection prioritizes power allocation to prevent system failure.
• Simple plug-and-play installation; no configuration required.
• Durable metal casing for enhanced protection and longevity.
• Extend mode for increased PoE transmission distance (up to 250m).

Specifications

• Interface: 5 x 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE), Auto-Negotiation, Auto MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX: UTP category 5, 5e cable (max 100m)
• PoE Ports (RJ45): Ports 1-4, 802.3af compliant, 41W total power budget, up to 15.4W per port
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.744 Mpps
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
• Dimensions: 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
• Max Power Consumption: 1.9 W (no PD connected), 47 W (with 41W PD connected)
• Transmission Method: Store-and-Forward
• Advanced Functions: Extend Mode, Priority Mode, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Backpressure
• Certifications: FCC, CE, RoHS
