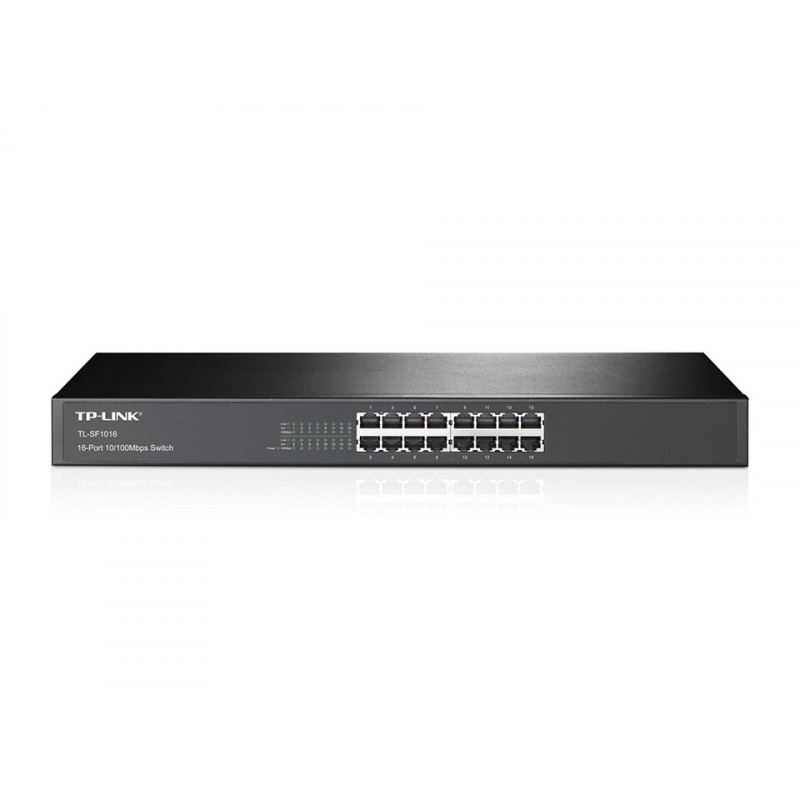

TP-LINK TL-SF1016 16-Port 10/100Mbps Rackmount Switch

TP-LINK TL-SF1016 16-Port 10/100Mbps Unmanaged Rackmount Switch

Enhance your network infrastructure with the TP-LINK TL-SF1016, a robust and efficient 16-port 10/100Mbps unmanaged rackmount switch. Ideal for small to medium-sized businesses, offices, or home networks requiring reliable, high-speed connectivity, this switch offers seamless plug-and-play installation and significant energy savings. Its compact, rack-mountable design makes it perfect for both desktop and server rack environments, providing a cost-effective solution for expanding your network capacity without the complexities of managed switches.

Features

• 16 10/100Mbps RJ45 ports for versatile connectivity.
• Energy-efficient design, reducing power consumption by up to 75%.
• Auto MDI/MDIX support eliminates the need for crossover cables.
• Auto-negotiation on each port ensures optimal performance and compatibility.
• Standard 19-inch rack-mountable steel case for secure and organized deployment.
• Plug-and-play installation for ease of setup and minimal configuration.
• Non-blocking switching architecture for maximum throughput.
• Supports 10K Jumbo frames for improved large file transfer performance.
• IEEE 802.3x flow control for reliable operation in demanding network environments.
• Includes rackmount kit, power cord, and installation guide.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Interface: 16 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)
• Max Power Consumption: 2.06W (220V/50Hz)
• Max Heat Dissipation: 7.03 BTU/h
• Switching Capacity: 3.2Gbps
• Packet Forwarding Rate: 2.38Mpps
• MAC Address Table: 8K
• Buffer Memory: 2Mb
• Advanced Functions: Green Technology, 802.3X Flow Control
• Transfer Method: Store-and-Forward
• Certification: FCC, CE, RoHS
