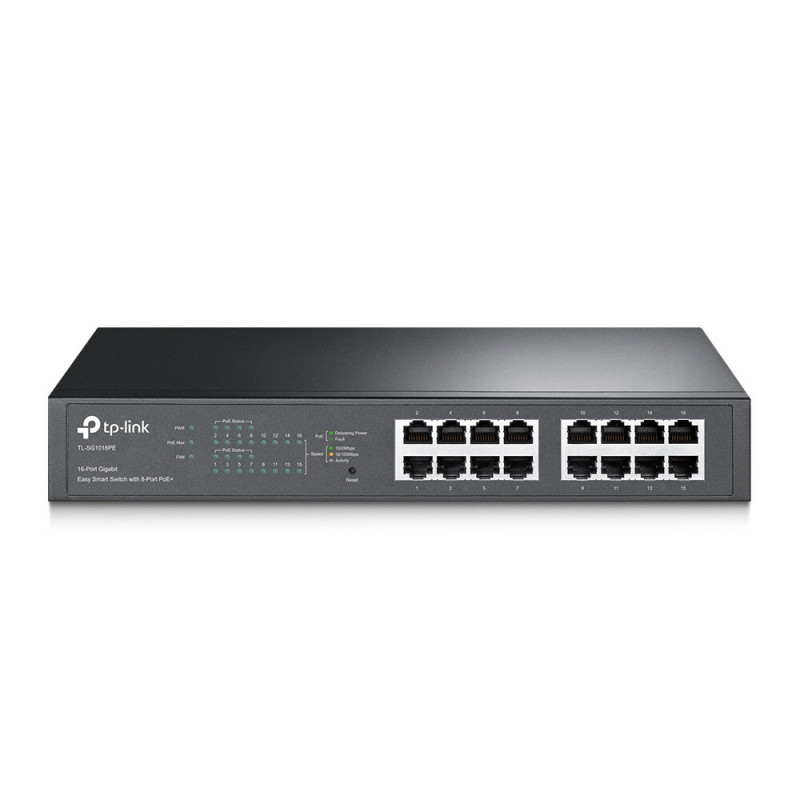

TP-LINK TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (150W)

TP-LINK TL-SG1016PE 16-Port Gigabit Easy Smart Switch

Expand your network with the TP-LINK TL-SG1016PE, a powerful and versatile 16-port Gigabit switch ideal for demanding home or office environments. This robust solution combines high-speed Gigabit Ethernet with eight PoE+ ports, providing a seamless way to power and connect devices like IP cameras, wireless access points, and VoIP phones. Designed for tech-savvy users and professionals, the TL-SG1016PE offers easy setup, advanced management capabilities, and energy-efficient operation, making it a cost-effective and reliable network backbone.

Features

• 16 10/100/1000Mbps RJ45 ports for high-speed network connectivity.
• 8 PoE+ ports (supporting IEEE 802.3af/at) deliver power and data over a single cable, simplifying installation and reducing cabling clutter.
• 150W total PoE+ power budget, with up to 30W per port, supporting high-power devices.
• Intelligent power overload protection with port priority functionality to safeguard your network.
• Easy setup and management via a user-friendly web-based interface.
• Energy-efficient design reduces power consumption, lowering operating costs and environmental impact.
• Rack-mountable design for flexible deployment in various settings.
• Supports advanced L2 features including VLANs, IGMP Snooping, and Link Aggregation.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16 x 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: Supports various UTP cable categories and STP for different network speeds and distances.
• PoE Ports: 8 ports, supporting 802.3af/at standard, Ports 1-8
• PoE Power Budget: 150W
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Dimensions (W x D x H): 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
• Mounting: Rack Mountable/Desktop
• Fan Quantity: 1
• Physical Security Lock: Yes
• Certification: FCC, CE, RoHS
