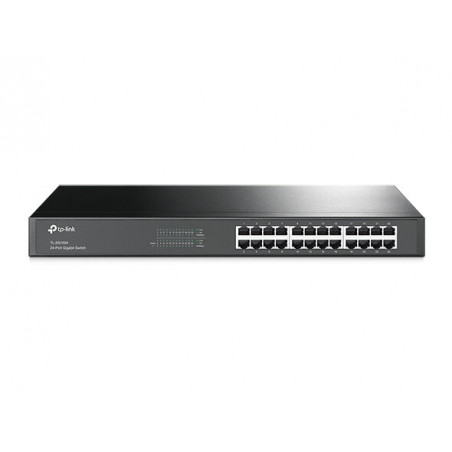

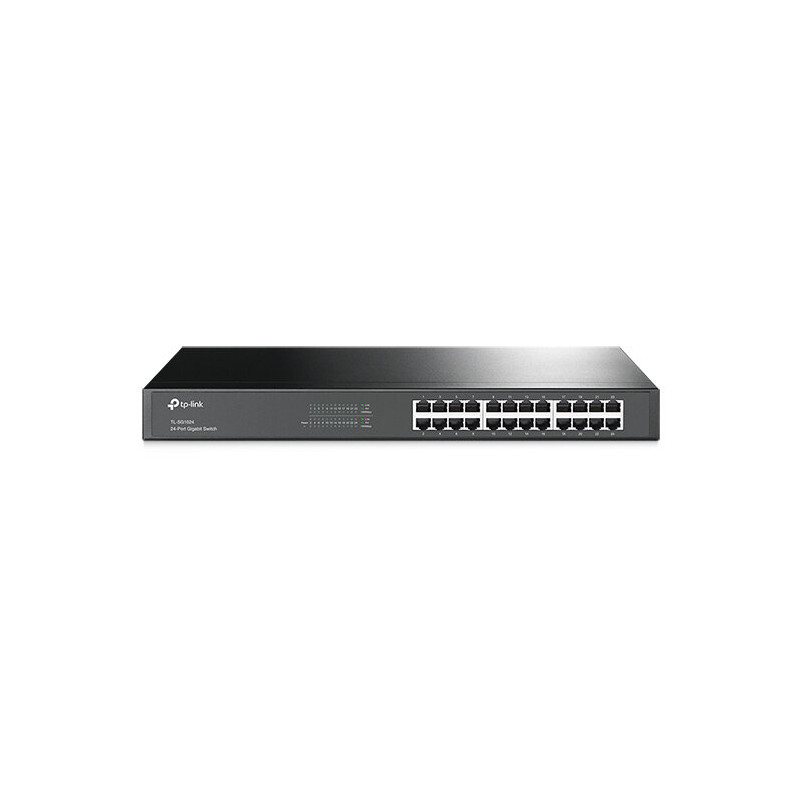

TP-LINK TL-SG1024 24-Port Gigabit Rackmount Switch

TP-LINK TL-SG1024 24-Port Gigabit Unmanaged Switch

Upgrade your network infrastructure with the TP-LINK TL-SG1024, a robust and efficient 24-port Gigabit Ethernet switch ideal for demanding environments. Whether you're a professional managing a small office network, a content creator needing high-speed file transfers, or a gamer requiring low-latency connectivity, this rack-mountable switch delivers the performance and reliability you need. Its energy-efficient design minimizes power consumption without compromising performance, making it a cost-effective and environmentally conscious choice.

Features

• 24 10/100/1000Mbps RJ45 ports for high-speed connectivity.
• Energy-efficient design reduces power consumption by up to 40%.
• Auto MDI/MDIX support eliminates the need for crossover cables.
• Standard 19-inch rack-mountable steel case for secure and organized deployment.
• Non-blocking wire-speed architecture with 48Gbps switching capacity for maximum throughput.
• 8K MAC address table for scalability and support of large networks.
• Supports 802.3x Flow Control for full-duplex and back pressure flow control for half-duplex modes.
• Plug-and-play installation for ease of use.
• Dynamic LED lights for real-time status monitoring and basic troubleshooting.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface: 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)
• Mounting: 19" Rack Mountable
• Max Power Consumption: 13.6W
• Max Heat Dissipation: 46.4 BTU/h
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• QoS: 802.1p/DSCP QoS (V11 and later versions)
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Certification: FCC, CE, RoHS
• Package Contents: 24-Port Gigabit Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
• Operating Temperature: 0°C - 40°C
• Storage Temperature: -40°C - 70°C
• Operating Humidity: 10% - 90% non-condensing
• Storage Humidity: 5% - 90% non-condensing
