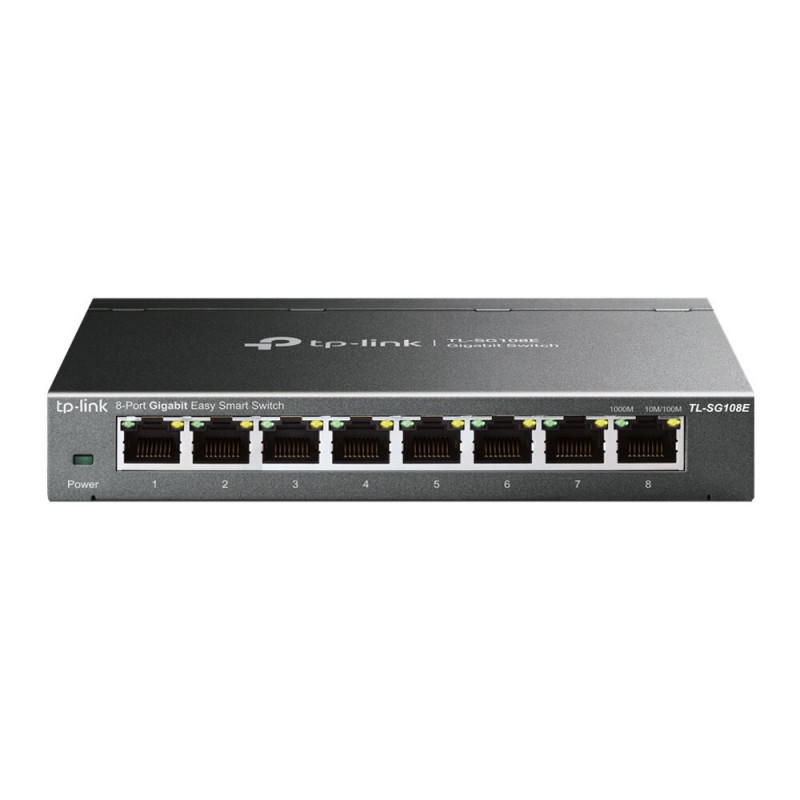

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch

Upgrade your network infrastructure with the TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch. This robust and efficient switch is perfect for small to medium-sized businesses, home networks demanding enhanced performance, and tech enthusiasts seeking reliable and manageable network control. Benefit from Gigabit speeds, advanced network management features, and energy-efficient design, all within a compact and durable metal casing.

Features

• Eight 10/100/1000Mbps RJ45 ports for high-speed connectivity.
• Plug-and-play simplicity with advanced management options via web interface and utility software.
• Energy-efficient design reduces power consumption by up to 80%, lowering operational costs and environmental impact.
• Advanced QoS features for prioritization of latency-sensitive applications like VoIP and video streaming.
• Enhanced security features including VLAN support (port-based, tag-based, and MTU VLAN) for network segmentation.
• Network monitoring tools such as Port Mirroring, Loop Prevention, and Cable Diagnostics for efficient troubleshooting.
• Durable metal casing for enhanced protection and longevity.
• Supports IGMP Snooping for optimized multicast traffic delivery (e.g., IPTV).
• Auto MDI/MDIX and auto-negotiation for seamless connectivity.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 8 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• Quality of Service (QoS): Port-based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward
• Power Supply: External Power Adapter (Output: 9 VDC/ 0.6 A)
• Dimensions (W x D x H): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption: 3.68 W (220 V/ 50 Hz)
• Max Heat Dissipation: 12.55 BTU/h
• Certifications: FCC, CE, RoHS
