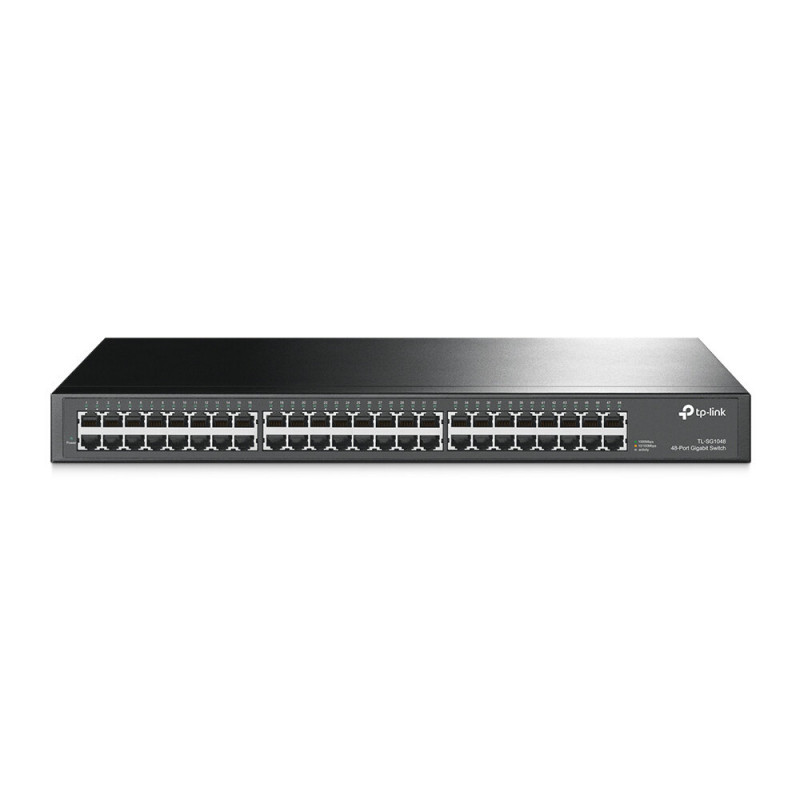

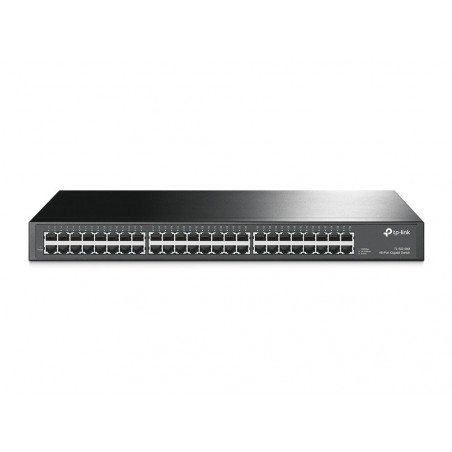

TP-LINK TL-SG1048 48-Port Gigabit Rackmount Switch

TP-LINK TL-SG1048 48-Port Gigabit Rackmount Switch

The TP-LINK TL-SG1048 is a robust and efficient 48-port Gigabit Ethernet switch, ideal for network administrators, IT professionals, and businesses requiring high-bandwidth connectivity. This rack-mountable switch offers exceptional performance, energy efficiency, and ease of management, making it a perfect solution for demanding network environments. Its high port density and advanced features ensure seamless data transfer for a variety of applications.

Features

• 48 10/100/1000Mbps RJ45 ports for high-speed connectivity.
• Energy-efficient design reduces power consumption by up to 18%.
• Auto-negotiation and auto MDI/MDIX for plug-and-play simplicity.
• Supports MAC address self-learning for efficient network management.
• Standard 19-inch rack-mountable steel case for seamless integration into existing infrastructure.
• High switching capacity (96Gbps) and packet forwarding rate (71.4Mpps) for optimal performance.
• Supports Jumbo Frames (12KB) for enhanced large file transfers.
• Includes rackmount kits and rubber feet for flexible deployment.
• Compliant with FCC, CE, and RoHS standards.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 440 x 220 x 44 mm (17.32 x 8.7 x 1.73 in)
• Mounting: Rack Mountable
• Max Power Consumption: 32.29W (220V/50Hz)
• Max Heat Dissipation: 110.17 BTU/h
• Switching Capacity: 96Gbps
• Packet Forwarding Rate: 71.4Mpps
• MAC Address Table: 16K
• Buffer Memory: 12Mb
• Jumbo Frame: 12KB
• Transfer Method: Store-and-Forward
• Certification: FCC, CE, RoHS
• Operating Temperature: 0°C - 40°C
• Storage Temperature: -40°C - 70°C
• Operating Humidity: 10% - 90% non-condensing
• Storage Humidity: 5% - 90% non-condensing
